| Quantity: | |
|---|---|
BMH500
Xeriwell or Others
| Product: | Hydraulic Gerotor Motor | Displacement: | 500CC |
|---|---|---|---|
| Max.Speed(rpm): | Cont.155rpm/int.166rpm | Max.Torque(N.m): | Cont.830N.m/int.1040N.m |
| Max. Pressure Drop: | Cont.16MPa/int.18MPa | Max.flow(L/min): | Cont.75L/min~int.90L/min |
| Highlight: | 500CC Hydraulic Orbit Motor,Side Ports Cross Hydraulic Orbit Motor,Hydraulic Orbit Motor OMH 500 | ||

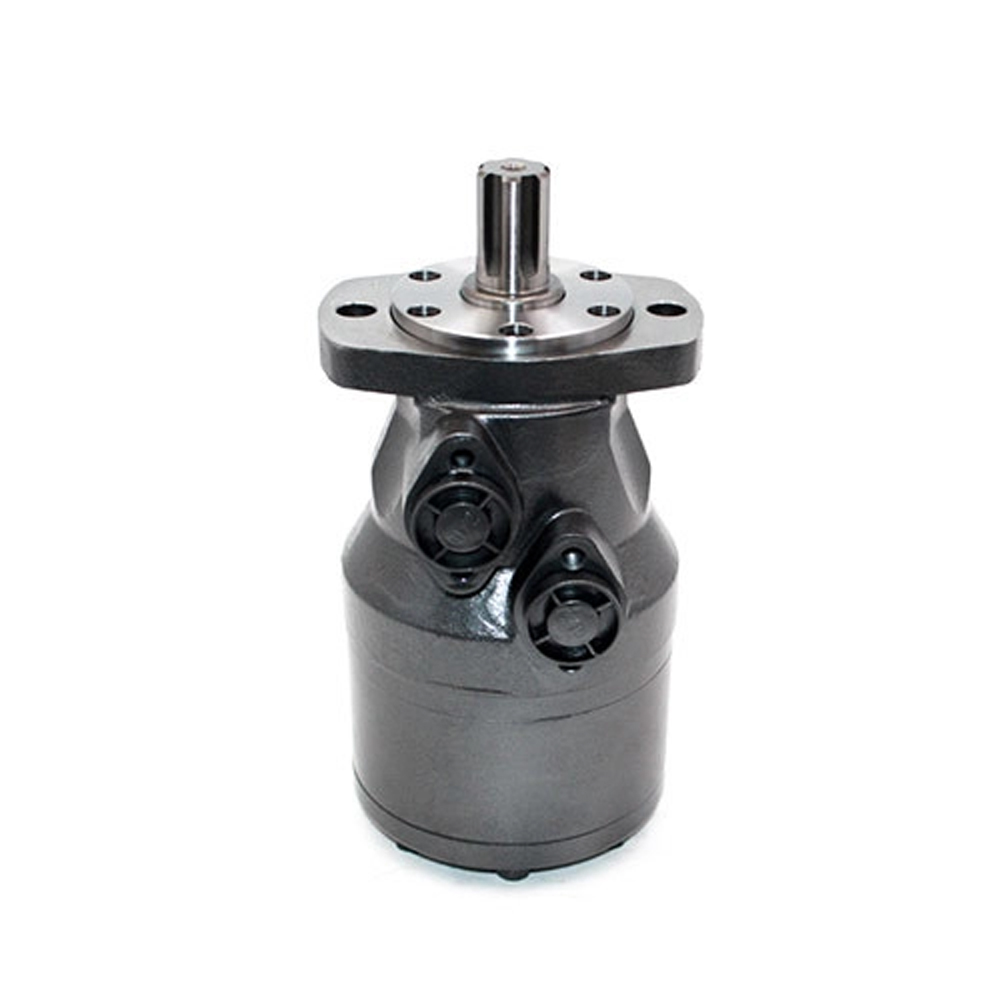

Hydraulic orbit motor OMH 500 with 1 in SAE 6B splined shaft,side ports cross hydraulic motor
Xeriwell techonlogy offer the OMH series motors, the same specification with Danfoss OMH Motors, M+S MH gerotor motors
this types is widely used on concrete pumps and drilling rigs.
OMH are light and compact and thus easy to install in machinery like forklifts, lawn mowers, lifts, loaders and excavators.
Product details:
displacement:500cc
flange:2 bolts flange
shaft:Splined 1 in (SAE 6B)
port size:7/8-14 UNF side ports
Main Specifications:
| Type | BMH 200 | BMH 250 | BMH 315 | BMH 400 | BMH 500 | |
Displacement (cc/rev) | 203.2 | 255.9 | 316.5 | 406.4 | 489.2 | |
Max torque (n.m) | cont | 510 | 621 | 740 | 850 | 830 |
| int | 439 | 348 | 282 | 220 | 184 | |
Max pressure (mpa) | cont | 17.5 | 17.5 | 17.5 | 15.5 | 12.5 |
| int | 20 | 20 | 20 | 19 | 16 | |
Max speed rate (rpm) | cont | 366 | 290 | 236 | 183 | 155 |
| int | 439 | 348 | 282 | 220 | 184 | |
Max flow (L/min) | cont | 75 | 75 | 75 | 75 | 75 |
| int | 90 | 90 | 90 | 90 | 90 | |
Weight(kg) | 10.5 | 11 | 11.5 | 12.3 | 13.0 | |
other type code
| Displacement | 200 | 250 | 315 | 400 | 500 |
| Cyl. Ø32 mm | 151H1002 | 151H1003 | 151H1004 | 151H1005 | 151H1006 |
| Cyl. Ø35 mm | 151H1012 | 151H1013 | 151H1014 | 151H1015 | 151H1016 |
| Cyl. 1 1/4 in | 151H1042 | 151H1043 | 151H1044 | 151H1045 | 151H1046 |
| Splined 1 in (SAE 6B) | 151H1080 | 151H1082 | 151H1083 | 151H1084 | 151H1081 |
| Splined 1 1/4 in | 151H1022 | 151H1023 | 151H1024 | 151H1025 | 151H1026 |
| Splined 1 1/4 in | 151H1052 | 151H1053 | 151H1054 | 151H1055 | 151H1056 |
