| Quantity: | |
|---|---|
BMR-160
Xeriwell or Others
| Product Name: | Hydraulic Gear Motors | Displacement: | 160cc |
|---|---|---|---|
| Applications: | Agricultural Machine, Transportation, Construction Equipment, Metallurgical, Marine, Etc. | Warranty: | 12months |
| Oil Temperature: | Normal-35℃-80℃ | Material: | Cast Iron |
| Highlight: | 25mm Hydraulic orbit motor 151-6214,160cc Hydraulic orbit motor 151-6214,Hydraulic Orbit Motor With Rear Ports | ||

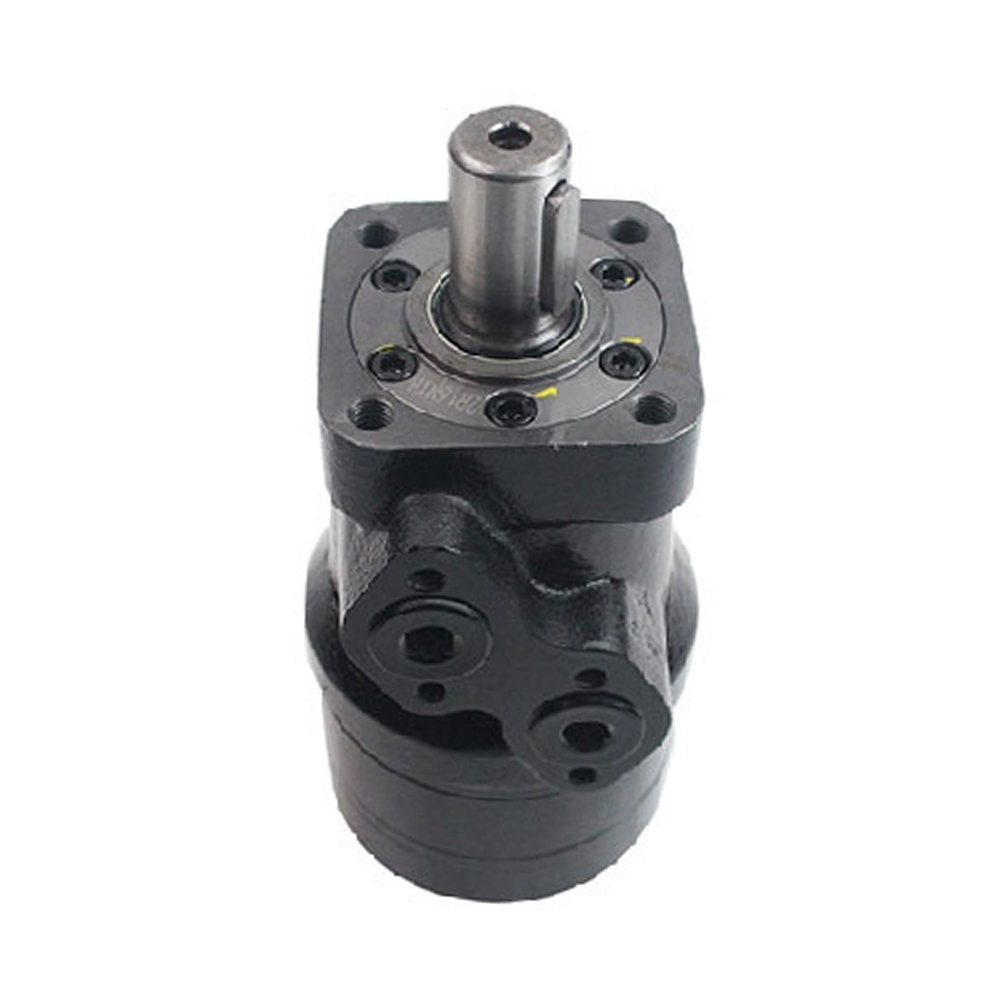

Hydraulic orbit motor 151-6214,160cc, 25mm key shaft with rear ports
The goods details:
type code :BMR
displacement :160cc
flange:4-M10 Square-flange,pilot Ø44.4×2.8
shaft:Shaft Ø25,parallel Key 8x7x32
port threads:G1/2 Manifold Mount 4-M8, G1/4
Main Specifications:
Technical data for BMR with 25 and 1 in and 1 in splined and 28.56 tapered shaft:
| Type | BMR BMRS 36 | BMR BMRS 50 | BMR BMRS 80 | BMR BMRS 100 | BMR BMRS 125 | BMR BMRS 160 | BMR BMRS 200 | BMR BMRS 250 | BMR BMRS 315 | BMR BMRS 375 | |
| Geometric displacement (cm3 /rev.) | 36 | 51.7 | 81.5 | 102 | 127.2 | 157.2 | 194.5 | 253.3 | 317.5 | 381.4 | |
| Max. speed (rpm) | cont. | 1085 | 960 | 750 | 600 | 475 | 378 | 310 | 240 | 190 | 155 |
| int. | 1220 | 1150 | 940 | 750 | 600 | 475 | 385 | 300 | 240 | 190 | |
| Max. torque (N·m) | cont. | 72 | 100 | 195 | 240 | 300 | 360 | 360 | 390 | 390 | 365 |
| int. | 83 | 126 | 220 | 280 | 340 | 430 | 440 | 490 | 535 | 495 | |
| peak | 105 | 165 | 270 | 320 | 370 | 460 | 560 | 640 | 650 | 680 | |
| Max. output (kW) | cont. | 8.5 | 9.5 | 12.5 | 13 | 12.5 | 12.5 | 10 | 7 | 6 | 5 |
| int. | 9.8 | 11.2 | 15 | 15 | 14.5 | 14 | 13 | 9.5 | 9 | 8 | |
| Max. pressure drop (MPa) | cont. | 14 | 14 | 17.5 | 17.5 | 17.5 | 16.5 | 13 | 11 | 9 | 7 |
| int. | 16.5 | 17.5 | 20 | 20 | 20 | 20 | 17.5 | 15 | 13 | 10 | |
| peak | 22.5 | 22.5 | 22.5 | 22.5 | 22.5 | 22.5 | 22.5 | 20 | 17.5 | 15 | |
| Max. flow (L/min) | cont. | 40 | 50 | 60 | 60 | 60 | 60 | 60 | 60 | 60 | 60 |
| int. | 45 | 60 | 75 | 75 | 75 | 75 | 75 | 75 | 75 | 75 | |
| Weight (kg) | 6.5 | 6.7 | 6.9 | 7 | 7.3 | 7.6 | 8 | 8.5 | 9 | 9.5 | |
We are very glad to be your hydrauic products partner,try us once, you will not regret * Continuous pressure:Max.value of operating motor continuously.
* Intermittent pressure:Max.value of operating motor in 6 seconds per minute .
* Peak pressure:Max.value of operating motor in 0.6 second per minute.
| Displacement | 50 | 80 | 100 | 125 | 160 | 200 | 250 | 315 | 375 |
| code | 151-6210 | 151-6211 | 151-6212 | 151-6213 | 151-6214 | 151-6215 | 151-6216 | 151-6217 | 151-6218 |
| 151-7260 | 151-7261 | 151-7262 | 151-7263 | 151-7264 | 151-7265 | 151-7266 | 151-7267 | 151-7269 |
Applications :
Agricultural equipment
Material handling & Lifting equipment
Forestry equipment
Lawn and turf equipment
Machine tools and stationary equipment
Marine equipment
Special purpose
