| Quantity: | |
|---|---|
4000 series
Xeriwell or Others
| Item: | Disc Geroler Motors | Model: | 4000 Series |
|---|---|---|---|
| Direction Of Rotation: | Reversible | Material: | Cast Iron |
| Maximum Pressure: | 3500 Bar | Max.oil Flow: | 95gpm |
| Highlight: | 109-1104-006 Hydraulic Motor,Eaton Char-Lynn Hydraulic Motor,109-1104 Hydraulic Motor | ||

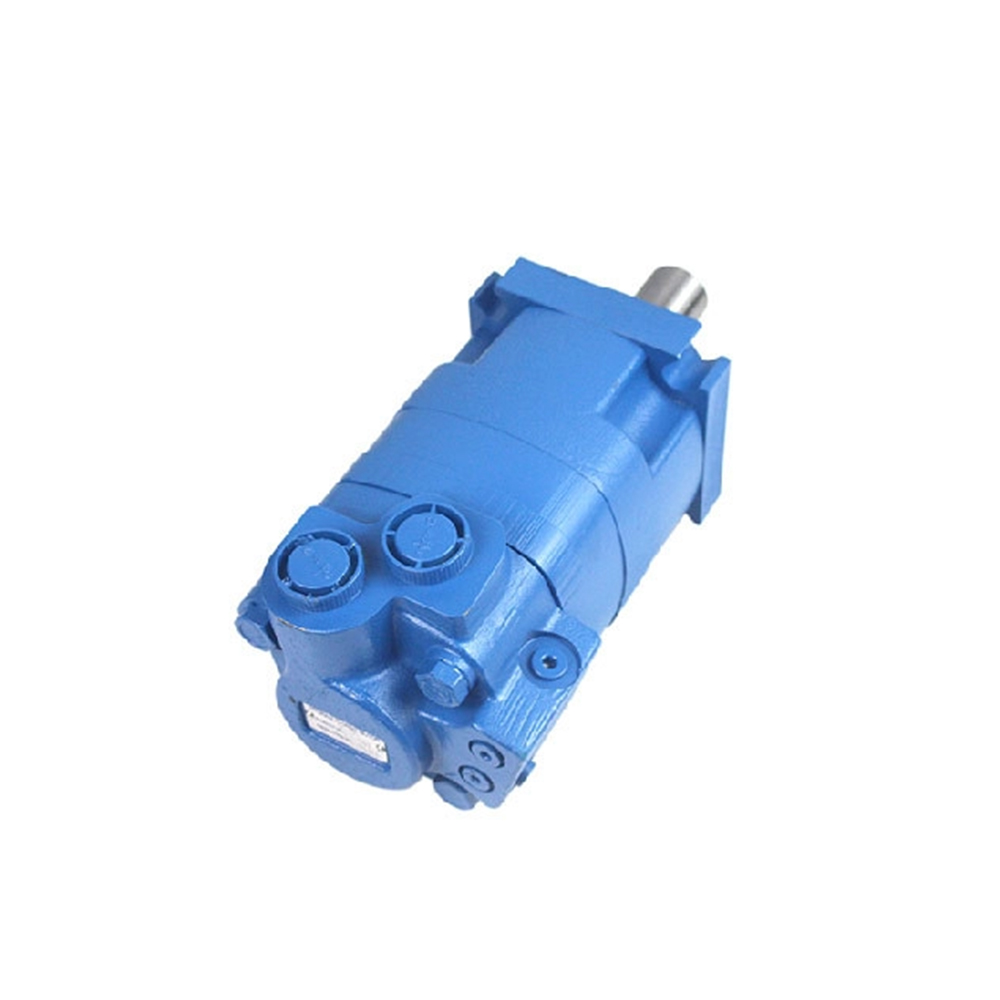

Hydraulic Motor Compatible with Eaton Char-Lynn 4000 Series 109-1104-006 109-1104
for Hydraulic Side Shift
4000 series Motor Geroler
| Displ. cm3/r | 110 | 130 | 160 | 205 | 245 | 280 | 310 | 395 | 495 | 625 |
| Max Speed rpm | 697 | 722 | 582 | 459 | 383 | 336 | 303 | 239 | 191 | 151 |
| Flow l/min | 75/95 | 95/115 | 95/115 | 95/115 | 95/130 | 95/130 | 95/130 | 95/150 | 95/150 | 95/150 |
| Torque Nm | 320/470 | 375/560 | 485/705 | 600/800 | 705/845 | 753/957 | 850/1065 | 930/1185 | 945/1170 | 970/1180 |
| MOUNTING | SHAFT | PORT SIZE | DISPL. cm3/ r [in3/ r] / PRODUCT NUMBER | ||||||||
| 110 | 130 | 160 | 205 | 245 | 310 | 395 | 495 | 625 | |||
| Standard SAE B-Mount | 1 1/4 Inch Straight | 1 1/16 O-ring | 109-1100 | 109-1101 | 109-1102 | 109-1103 | 109-1104 | 109-1105 | 109-1106 | 109-1212 | 109-1215 |
| 1 1/4 Inch 14 T Splined | 1 1/16 O-ring | 109-1114 | 109-1115 | 109-1116 | 109-1117 | 109-1118 | 109-1119 | 109-1120 | |||
| Standard SAE C-Mount | 40 mm Straight | G 3/4 (BSP) | 109-1184 | 109-1185 | 109-1227 | 109-1224 | 109-1225 | 109-1189 | 109-1190 | ||
Benefits
Lowest pressure drop motor in the industry
Widest range of options
The most experienced manufacturer of LSHT motors
Applications
Swing motor
Brush Cutters & mowers
Harvesting equipment
Directional boring
Turf equipment
Skid Steer loaders
Fairway mowers
Harvesters
Mowing
Snow removal
Sprayers
Trencher
Wood products
Grinders and mixers
Forestry equipment
Irrigation reels
Orbital motors are versatile and can be found in various applications, including
Construction Equipment They are commonly used in excavators, loaders, graders, and other construction machinery to power functions like
Driving wheels (for locomotion)
Rotating attachments (like drill heads or trenchers)
Tilting buckets or blades
Agricultural Machinery Orbital motors are used in tractors, combines, and other agricultural equipment to power
Augers and drills for planting or soil sampling
Conveyors for moving crops or materials
Hay mowers and other implements
Industrial Automation Orbital motors are employed in various industrial machines for tasks like
Conveyor belt drives in assembly lines
Material handling equipment
Operating robotic arms or turntables
Advantages of Orbital Motors
