| Quantity: | |
|---|---|
BMSY-100-E2B-G-EE-S2
Xeriwell or Others
| Product: | Hydraulic Motor | Model No.: | BMSY-100-E2B-G-EE-S2 |
|---|---|---|---|
| Displacement: | 100cc | Flange: | 2 Bolt |
| Shaft: | 32mm | Port: | G 1/2 |
| Rotation: | Standard | Color: | Black |
| Manufacturer: | Xeriwell | Brand: | Xeriwell |
| Highlight: | Equivalent to OMS MS Hydraulic motor,180° Apart ports Hydraulic motor,BMS Series Hydraulic Motor | ||
Hydraulic motor BMS series with 180° Apart ports Equivalent to OMS MS
Quick review:
| Model No. | BMSY-100-E2B-G-EE-S2 |
| Geometric displacement | 100 cm³ |
| Max. speed continuous. | 748 rpm |
| Max. speed intermittent. | 900 rpm |
| Max. torque continuous. | 290 Nm |
| Max. torque intermittent | 390 Nm |
| Max. pressure continuous | 210 bar |
| Max. pressure intermittent. | 250 bar |
| Max. pressure peak | 270 bar |
BMS series with more mounting and shaft apply to Swing Motor, Brush Cutters & Mowers, Harvesting Equipment, Directional Boring any place pressure relief protection is optimal for system or motor performance and life, Turf equipment and more.
Specification:
Main Specifications:
| Type | BMS BMSE 80 | BMS BMSE 100 | BMS BMSE 125 | BMS BMSE 160 | BMS BMSE 200 | BMS BMSE 250 | BMS BMSE 315 | BMS BMSE 375 | |
| Geometric displacement (cm3 /rev.) | 80.6 | 100.8 | 125 | 157.2 | 200 | 252 | 314.5 | 370 | |
| Max. speed (rpm) | cont. | 800 | 748 | 600 | 470 | 375 | 300 | 240 | 200 |
| int. | 988 | 900 | 720 | 560 | 450 | 360 | 280 | 240 | |
| Max. torque (N·m) | cont. | 190 | 240 | 310 | 316 | 400 | 450 | 560 | 536 |
| int. | 240 | 300 | 370 | 430 | 466 | 540 | 658 | 645 | |
| peak | 260 | 320 | 400 | 472 | 650 | 690 | 740 | 751 | |
| Max. output (kW) | cont. | 15.9 | 18.8 | 19.5 | 15.6 | 15.7 | 14.1 | 14.1 | 11.8 |
| int. | 20.1 | 23.5 | 23.2 | 21.2 | 18.3 | 17 | 18.9 | 17 | |
| Max. pressure drop (MPa) | cont. | 17.5 | 17.5 | 17.5 | 15 | 14 | 12.5 | 12 | 10 |
| int. | 21 | 21 | 21 | 21 | 16 | 16 | 14 | 12 | |
| peak | 22.5 | 22.5 | 22.5 | 22.5 | 22.5 | 20 | 18.5 | 14 | |
| Max. flow (L/min) | cont. | 65 | 75 | 75 | 75 | 75 | 75 | 75 | 75 |
| int. | 80 | 90 | 90 | 90 | 90 | 90 | 90 | 90 | |
| Max. inlet pressure (MPa) | cont. | 25 | 25 | 25 | 25 | 25 | 25 | 25 | 25 |
| int. | 30 | 30 | 30 | 30 | 30 | 30 | 30 | 30 | |
| Weight (kg) | 9.8 | 10 | 10.3 | 10.7 | 11.1 | 11.6 | 12.3 | 12.6 | |
* Continuous pressure :Max. value of operating motor continuously.
* Intermittent pressure :Max. value of operating motor in 6 seconds per minute.
* Peak pressure:Max. value of operating motor in 0.6 second per minute.

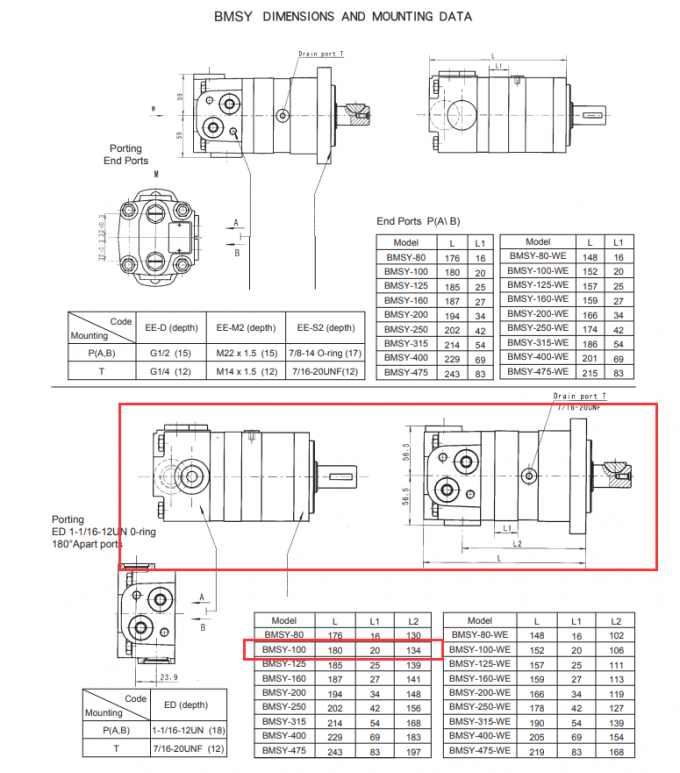

Dimentions:
| Mounting Code | EE-D (depth) | EE-M2 (depth) | EE-S2 (depth) |
| P(A,B) | G1/2 (15) | M22 x 1.5 (15) | 7/8-14 O-ring (17) |
| T | G1/4 (12) | M14 x 1.5 (12) | 7/16-20UNF(12) |
| Model | L | L1 |
| BMSY-80 | 176 | 16 |
| BMSY-100 | 180 | 20 |
| BMSY-125 | 185 | 25 |
| BMSY-160 | 187 | 27 |
| BMSY-200 | 194 | 34 |
| BMSY-250 | 202 | 42 |
| BMSY-315 | 214 | 54 |
| BMSY-400 | 229 | 69 |
| BMSY-475 | 243 | 83 |
| Model | L | L1 |
| BMSY-80-WE | 148 | 16 |
| BMSY-100-WE | 152 | 20 |
| BMSY-125-WE | 157 | 25 |
| BMSY-160-WE | 159 | 27 |
| BMSY-200-WE | 166 | 34 |
| BMSY-250-WE | 174 | 42 |
| BMSY-315-WE | 186 | 54 |
| BMSY-400-WE | 201 | 69 |
| BMSY-475-WE | 215 | 83 |
| Mounting Code | ED (depth) |
| P(A,B) | 1-1/16-12UN (18) |
| T | 7/16-20UNF (12) |
| Model | L | L1 | L2 |
| BMSY-80 | 176 | 16 | 130 |
| BMSY-100 | 180 | 20 | 134 |
| BMSY-125 | 185 | 25 | 139 |
| BMSY-160 | 187 | 27 | 141 |
| BMSY-200 | 194 | 34 | 148 |
| BMSY-250 | 202 | 42 | 156 |
| BMSY-315 | 214 | 54 | 168 |
| BMSY-400 | 229 | 69 | 183 |
| BMSY-475 | 243 | 83 | 197 |
| Model | L | L1 | L2 |
| BMSY-80-WE | 148 | 16 | 102 |
| BMSY-100-WE | 152 | 20 | 106 |
| BMSY-125-WE | 157 | 25 | 111 |
| BMSY-160-WE | 159 | 27 | 113 |
| BMSY-200-WE | 166 | 34 | 119 |
| BMSY-250-WE | 178 | 42 | 127 |
| BMSY-315-WE | 190 | 54 | 139 |
| BMSY-400-WE | 205 | 69 | 154 |
| BMSY-475-WE | 219 | 83 | 168 |
