| Quantity: | |
|---|---|
11131995 omp40 N
Xeriwell or Others
| Product: | Low Speed, High Torque (LSHT) Motor | Model No.: | 11131995 Omp40 N |
|---|---|---|---|
| Displacement: | 50cc | Flange: | 4 Bolt Square |

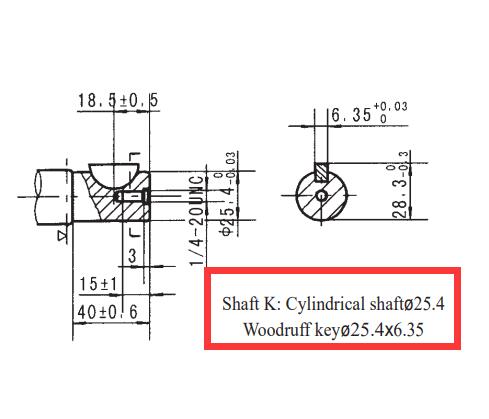

| Shaft: | 25.4mm Straight With Woodruff Key | Port: | 7/8-14 O-ring |
| Rotation: | Standard | Color: | Black |
| Manufacturer: | Xeriwell | Brand: | Xeriwell |
| Highlight: | 50 Ml/R Hydraulic Motor,11131995 omp40 N Hydraulic Motor,25.4mm Shaft Hydraulic Motor | ||

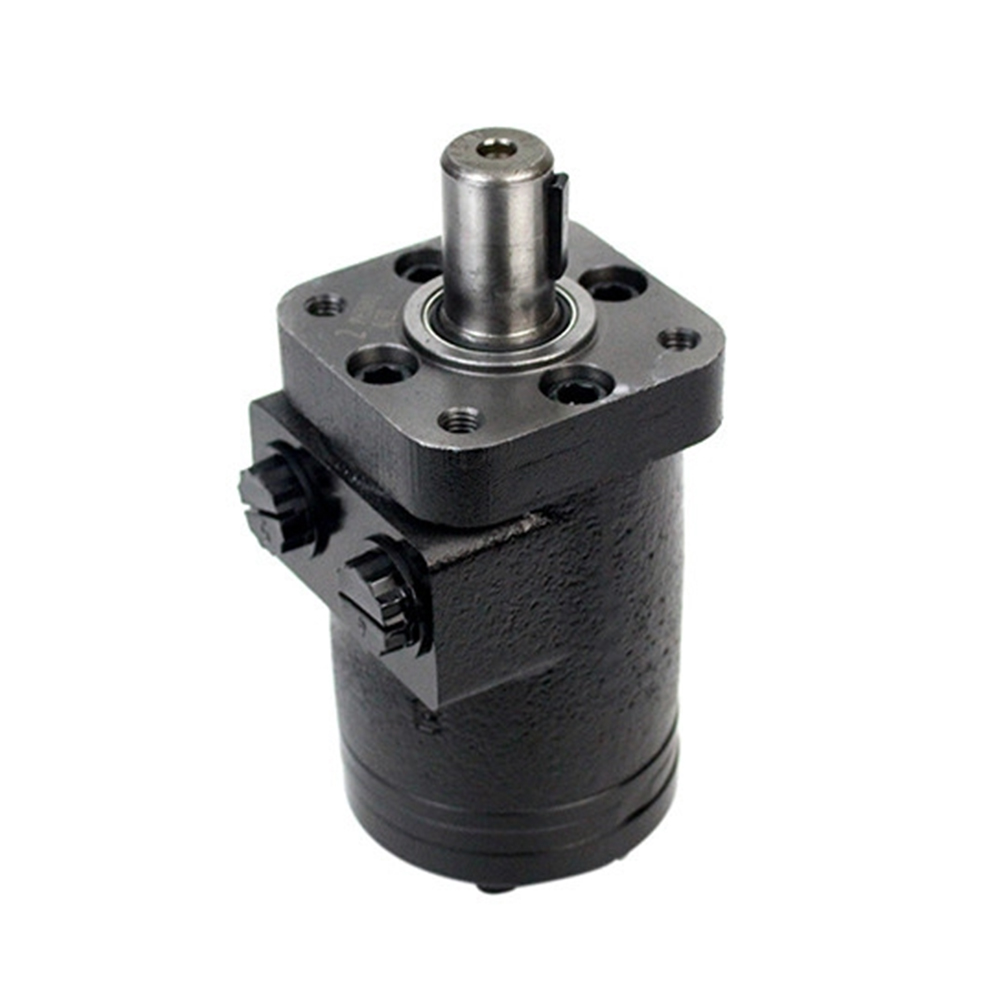

Hydraulic Motor 11131995 omp40 N, 4 bolt flange, 50 ml/r, 25.4mm shaft, needle bearing
Quick review:
| Product | Low Speed, High Torque (LSHT) Motor |
| Model No. | 11131995 omp40 N |
| Displacement | 50cc |
| Flange | 4 bolt square |
| Shaft | 25.4mm straight with woodruff key |
| Port | 7/8-14 O-ring |
| Rotation | Standard |
| Color | Black |
| Brand | Xeriwell |
Specification:
Technical data for OMP with 25 and 1 in and 1 in splined and 28.56 tapered shaft:
| Type | OMP OMPH OMPW 36 | OMP OMPH OMPW 50 | OMP OMPH OMPW 80 | OMP OMPH OMPW 100 | OMP OMPH OMPW 125 | OMP OMPH OMPW 160 | OMP OMPH OMPW 200 | OMP OMPH OMPW 250 | OMP OMPH OMPW 315 | OMP OMPH OMPW 400 | OMP OPH | |
| Geometric displacement (cm3 /rev.) | 36 | 51.7 | 77.7 | 96.2 | 120.2 | 157.2 | 194.5 | 240.3 | 314.5 | 389.5 | 486.5 | |
| Max. speed (rpm) | cont. | 1500 | 1150 | 770 | 615 | 490 | 383 | 310 | 250 | 192 | 155 | 120 |
| int. | 1650 | 1450 | 960 | 770 | 615 | 475 | 385 | 310 | 240 | 190 | 150 | |
| Max. torque (N·m) | cont. | 55 | 100 | 146 | 182 | 236 | 302 | 360 | 380 | 375 | 360 | 385 |
| int. | 76 | 128 | 186 | 227 | 290 | 370 | 440 | 460 | 555 | 525 | 560 | |
| peak | 96 | 148 | 218 | 264 | 360 | 434 | 540 | 550 | 650 | 680 | 680 | |
| Max. output (kW) | cont. | 8 | 10 | 10 | 11 | 10 | 10 | 10 | 8.5 | 7 | 6 | 5 |
| int. | 11.5 | 12 | 12 | 13 | 12 | 12 | 12 | 10.5 | 8.5 | 7 | 6 | |
| Max. pressure drop (MPa) | cont. | 12.5 | 14 | 14 | 14 | 14 | 14 | 14 | 11 | 9 | 7 | 6 |
| int. | 16.5 | 17.5 | 17.5 | 17.5 | 17.5 | 17.5 | 17.5 | 14 | 14 | 10.5 | 9 | |
| peak | 22.5 | 22.5 | 22.5 | 22.5 | 22.5 | 22.5 | 22.5 | 18 | 16 | 14 | 12 | |
| Max. flow (L/min) | cont. | 55 | 60 | 60 | 60 | 60 | 60 | 60 | 60 | 60 | 60 | 60 |
| int. | 60 | 75 | 75 | 75 | 75 | 75 | 75 | 75 | 75 | 75 | 75 | |
| Weight (kg) | 5.6 | 5.6 | 5.7 | 5.9 | 6 | 6.2 | 6.4 | 7 | 6.9 | 7.4 | 8 | |

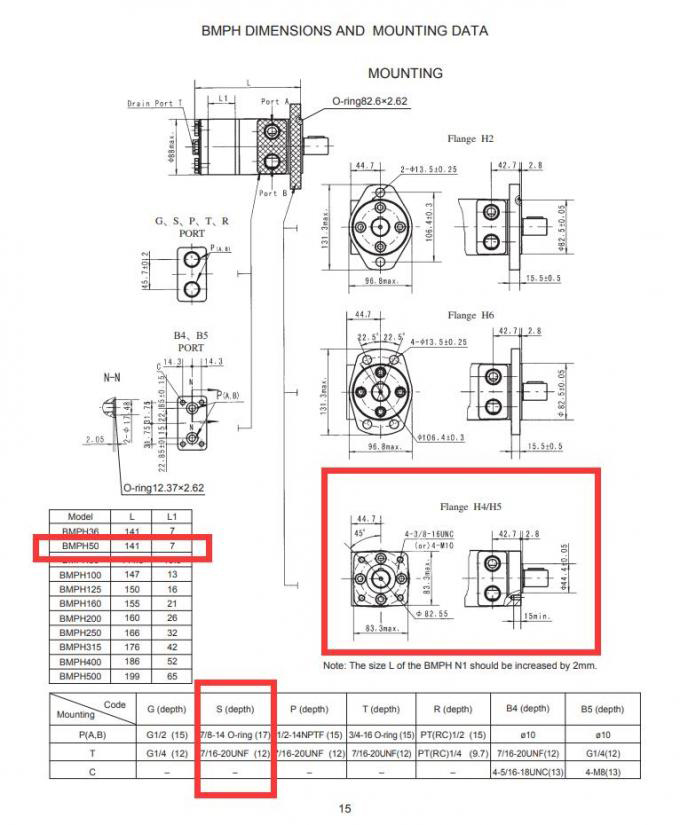

Dimentions:
OMM
OMP
OMR
OMS
OMH
OMT
OMV
