| Quantity: | |
|---|---|
NSH 32 A-3
Xeriwell or Others
| Product: | Gear Pump | Rotation: | Right |
|---|---|---|---|
| Model Number: | NSH 32 A-3 | Application: | MTZ, T-70, T-4AP-2, TTZ, BeLAZ, KSK-100, KSKU, URAL, Don, Polesie-250, KSG-F-70A, KSG-3, KS, PE-08B, PE-F- 1A |
| Displacement: | 31.7 Ml/r | Nominal Flow: | 68.6 L/m |
| Highlight: | high pressure gear pump,small gear pump | ||

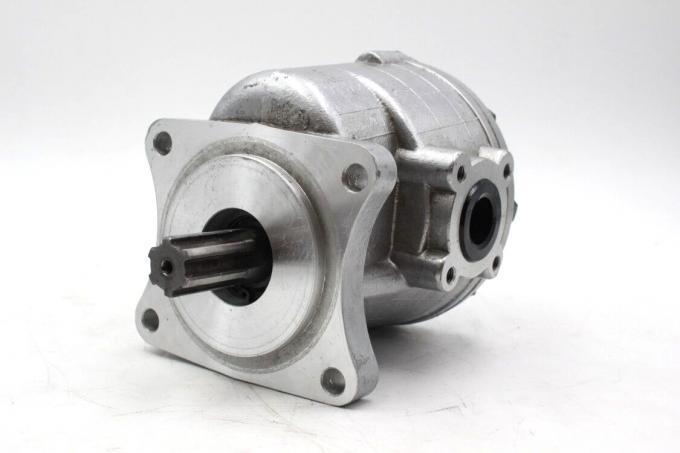

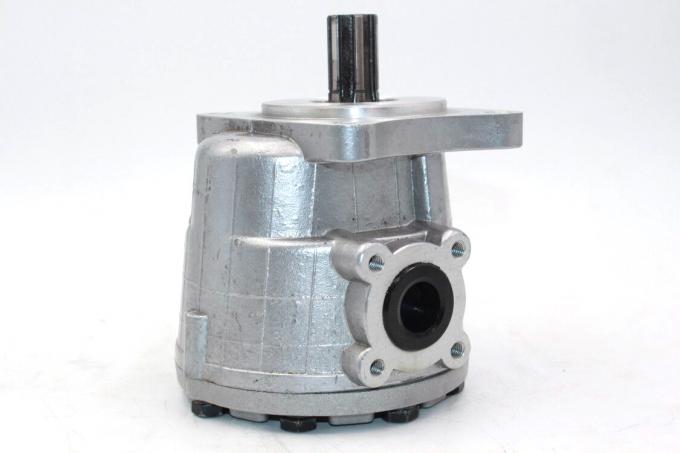

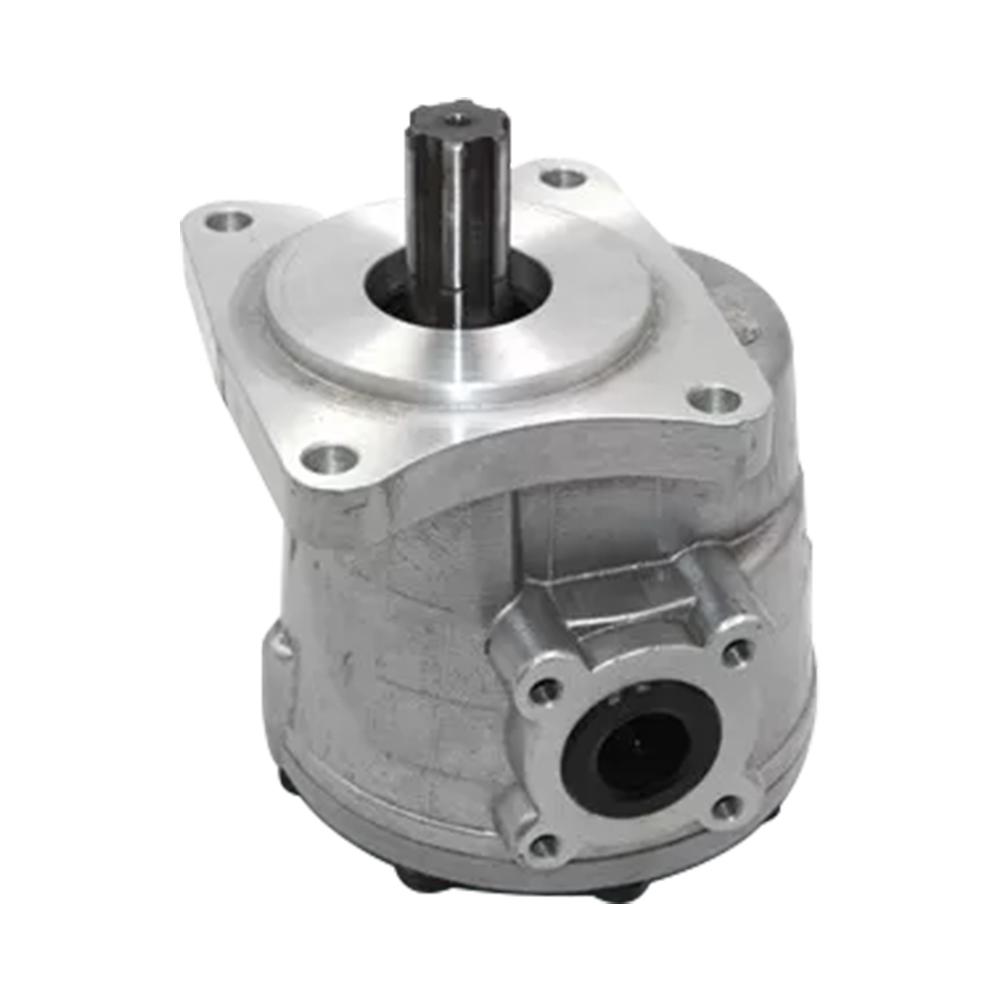

HYDRAULIC MANUFACTURING PUMP GEAR NSH 32 A-3 (ROUND) RIGHT REPLACEMENT
Hydraulic pumps and hydraulic motors of Xeriwell are widely manufactured and exported to CIS area
And it has the following characteristics and applications
| Pump gear NSh 32A-3 (round) right | |
| Features | right rotation |
| Model number | NSh32A-3 |
| Application | MTZ, T-70, T-4AP-2, TTZ, BeLAZ, KSK-100, KSKU, URAL, Don, Polesie-250, KSG-F-70A, KSG-3, KS, PE-08B, PE-F- 1A |
| Number of slots | 6 |
| Analogs | NSh 32A-3 |
| Weight | 6.4 kg |
| condition | New |
| Warranty | 12 months |
| Technical characteristics of the pump NSh32A-3 | |
| Displacement, with m 3 | 31.7 |
| Pressure rating, MPa | 16 |
| Maximum pressure, MPa | 21 |
| Rated rotation speed, s-1 | 40 |
| Maximum rotation speed, s-1 | 60 |
| Minimum rotation frequency, s-1 | 16 |
| Nominal flow, l / min | 68.6 |
| Power consumption no more, kW | 24 |
Gear pumps are designed for pumping and supplying working fluid (most often it is mineral oil) into the hydrostatic system of tractors, combines and other agricultural machinery and trucks, as well as in production systems (presses, elevators, machines, etc.)
Nice quality PK Bulgaria & USA makes, compatible with Parker, Rexroth, Caproni, Cassapa, replace OEM parts you may find on original machines.
3, you can send us a sample of the gear pump you need
Let's talk to see how can we build a mutually beneficial and win-win partnership
