BMP400
Xeriwell or Others
| Features: | Same Than ,M+S,Eaton Motor | Product Name: | Xeriwell BMP Series Hydraulic Motor |
|---|---|---|---|
| Brand Name: | Xeriwell | Model Number: | BMP400 |
| Displacement: | 50cc - 500cc | Application: | Hydraulic System |
| Highlight: | orbital hydraulic motor,cycloid hydraulic motor | ||

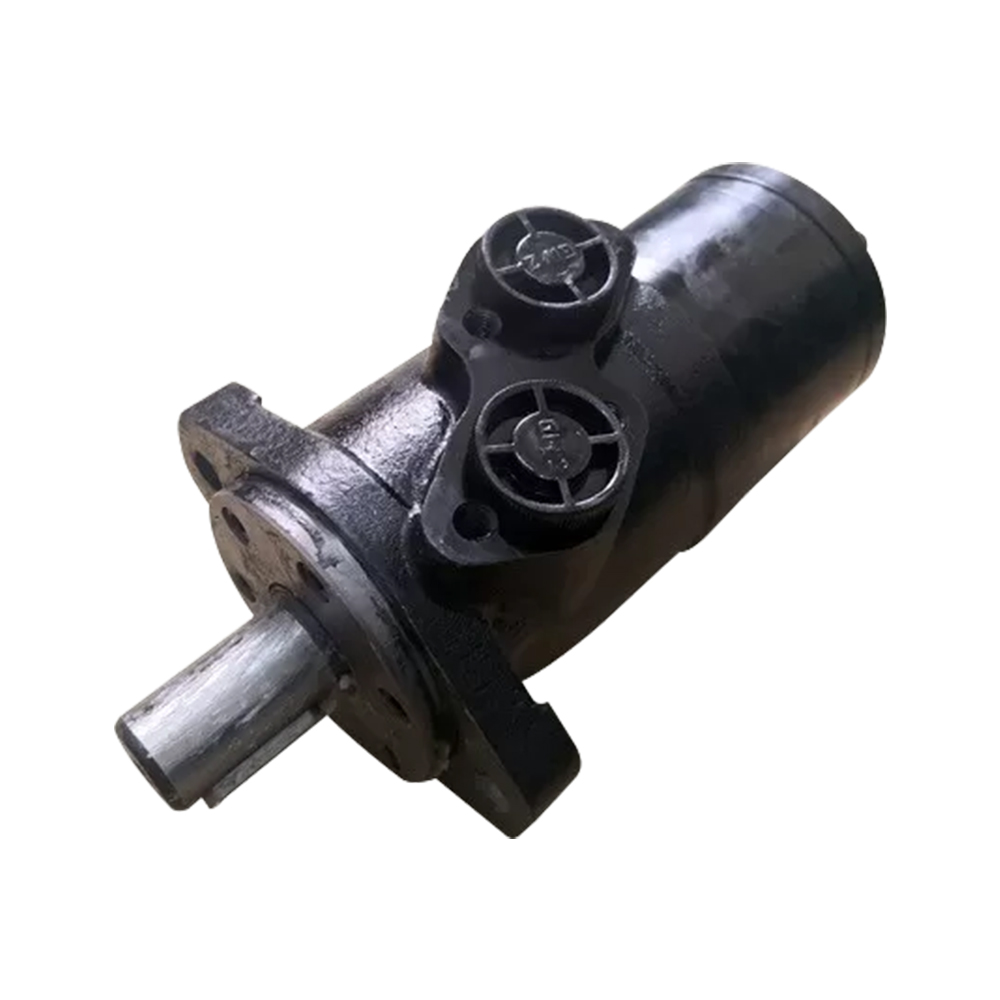

Hydraulic Gerotor Motor OMP400 / MP400 / HMP400 / BMP400 Shaft 25mm
| MOTOR: Xeriwell BMP400 / OMP400 / MP400 |
| SHAFT SIZE: 25MM |

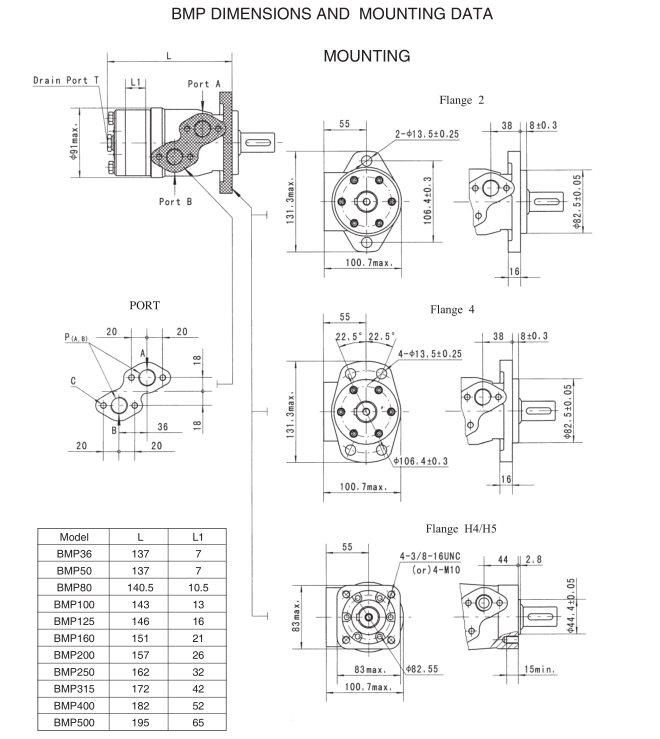

| FLANGE : 2 TYPE |
| OIL PORT: G1/2" |
| DRAIN PORT: G1/4" |
1. Characteristic features
• It adapts the gerolor design. Higher efficiency than BMP motor.
• Credible design for shaft seal , which can bear high pressure.
• Direction of shaft speed can be controlled easily and smoothly.
• Best efficiency and economy in medium load applications
2. Specification
| Type | BMP 36 | BMP 50 | BMP 80 | BMP 100 | BMP 125 | BMP 160 | BMP 200 | BMP 250 | BMP 315 | BMP 400 | BMP 500 | |
| Geometric displacement (cm3 /rev.) | 36 | 51.7 | 77.7 | 96.2 | 120.2 | 157.2 | 194.5 | 240.3 | 314.5 | 389.5 | 486.5 | |
| Max. speed (rpm) | cont. | 1500 | 1150 | 770 | 615 | 490 | 383 | 310 | 250 | 192 | 155 | 120 |
| int. | 1650 | 1450 | 960 | 770 | 615 | 475 | 385 | 310 | 240 | 190 | 150 | |
| Max. torque (N·m) | cont. | 55 | 100 | 146 | 182 | 236 | 302 | 360 | 460 | 475 | 490 | 430 |
| int. | 76 | 128 | 186 | 227 | 290 | 370 | 440 | 570 | 555 | 580 | 560 | |
| peak | 96 | 148 | 218 | 264 | 360 | 434 | 540 | 670 | 840 | 840 | 780 | |
| Max. output (kW) | cont. | 8 | 10 | 10 | 11 | 10 | 10 | 10 | 8.5 | 7 | 6 | 6 |
| int. | 11.5 | 12 | 12 | 13 | 12 | 12 | 12 | 10.5 | 8.5 | 7 | 7 | |
| Max. pressure drop (MPa) | cont. | 12.5 | 14 | 14 | 14 | 14 | 14 | 14 | 14 | 12 | 9.5 | 7 |
| int. | 16.5 | 17.5 | 17.5 | 17.5 | 17.5 | 17.5 | 17.5 | 17.5 | 14 | 11.5 | 9 | |
| peak | 22.5 | 22.5 | 22.5 | 22.5 | 22.5 | 22.5 | 22.5 | 22.5 | 22.5 | 18 | 13 | |
| Max. flow (L/min) | cont. | 55 | 60 | 60 | 60 | 60 | 60 | 60 | 60 | 60 | 60 | 60 |
| int. | 60 | 75 | 75 | 75 | 75 | 75 | 75 | 75 | 75 | 75 | 75 | |
