| Quantity: | |
|---|---|

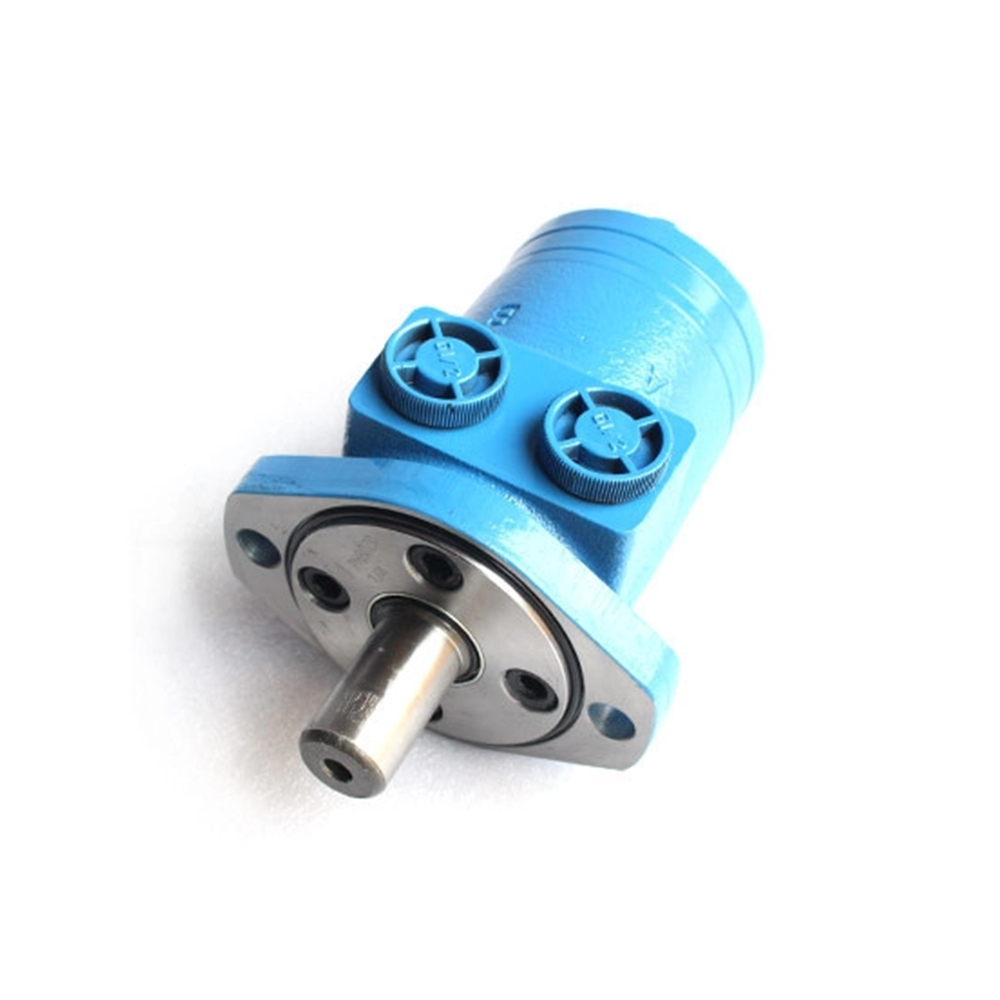

BMPH
Xeriwell or Others
| Model No.: | DH80 | Displacement: | 80cc |
|---|---|---|---|
| Speed: | 770/960rpm | Torque: | 55/76 Nm |
| Max Power: | 10/12KW | Max Flow: | 60/75LPM |
| Highlight: | geroler motor DH80,SAE Flange geroler motor,winch hydraulic motor DH80 | ||
Product details:
| type | BMPH |
| displacement | 80cc |
| flange: | 2-Bolts standard flange |
| shaft | Shaft Ø25.4, cylindrical shaft |
| oil port | 1/2-14 NPTF, 7/16-20UNF,BSPP 1/2" |
Main Specification
Technical data for BMPH with 25 and 1 in and 1 in splined and 28.56 tapered shaft
| Geometric displacement (cm3/rev.) | 77.7 | |
| Max. speed (rpm) | cont. | 770 |
| int. | 960 | |
| Max. torque (N•m) | cont. | 146 |
| int. | 186 | |
| peak | 218 | |
| Max. output (kW) | cont. | 10.0 |
| int. | 12.0 | |
| Max. pressure drop(MPa) | cont. | 14 |
| int. | 17.5 | |
| peak | 22.5 | |
| Max. flow (L/min) | cont. | 60 |
| int. | 75 | |
| Weight (kg) | 5.7 | |
The advantage of Bmp is that it can be started at low pressure, equipped with a reinforced shaft seal, has high starting torque and the ability to withstand huge back pressure, and the ability to transfer axial and radial loads. The overall volume is small and exquisite, and the installation is very convenient. After being upgraded by Xeriwell factory technicians, they also have a long lifespan and are very durable.
| Model No.: | DH80 | Displacement: | 80cc |
|---|---|---|---|
| Speed: | 770/960rpm | Torque: | 55/76 Nm |
| Max Power: | 10/12KW | Max Flow: | 60/75LPM |
| Highlight: | geroler motor DH80,SAE Flange geroler motor,winch hydraulic motor DH80 | ||
Product details:
| type | BMPH |
| displacement | 80cc |
| flange: | 2-Bolts standard flange |
| shaft | Shaft Ø25.4, cylindrical shaft |
| oil port | 1/2-14 NPTF, 7/16-20UNF,BSPP 1/2" |
Main Specification
Technical data for BMPH with 25 and 1 in and 1 in splined and 28.56 tapered shaft
| Geometric displacement (cm3/rev.) | 77.7 | |
| Max. speed (rpm) | cont. | 770 |
| int. | 960 | |
| Max. torque (N•m) | cont. | 146 |
| int. | 186 | |
| peak | 218 | |
| Max. output (kW) | cont. | 10.0 |
| int. | 12.0 | |
| Max. pressure drop(MPa) | cont. | 14 |
| int. | 17.5 | |
| peak | 22.5 | |
| Max. flow (L/min) | cont. | 60 |
| int. | 75 | |
| Weight (kg) | 5.7 | |
The advantage of Bmp is that it can be started at low pressure, equipped with a reinforced shaft seal, has high starting torque and the ability to withstand huge back pressure, and the ability to transfer axial and radial loads. The overall volume is small and exquisite, and the installation is very convenient. After being upgraded by Xeriwell factory technicians, they also have a long lifespan and are very durable.
