| Quantity: | |
|---|---|
BMK2-400-F2-FE-SU
Xeriwell or Others
| Item: | Sugar Cane Harvesters Drive Engine | Type: | Orbit Motor |
|---|---|---|---|
| Direction: | Left And Right | Displacement: | 50cc - 497cc |
| Fit: | IH, John Deere | Used For: | Hydraulic System |
| Highlight: | cycloid hydraulic motor,hydraulic rotary motor | ||

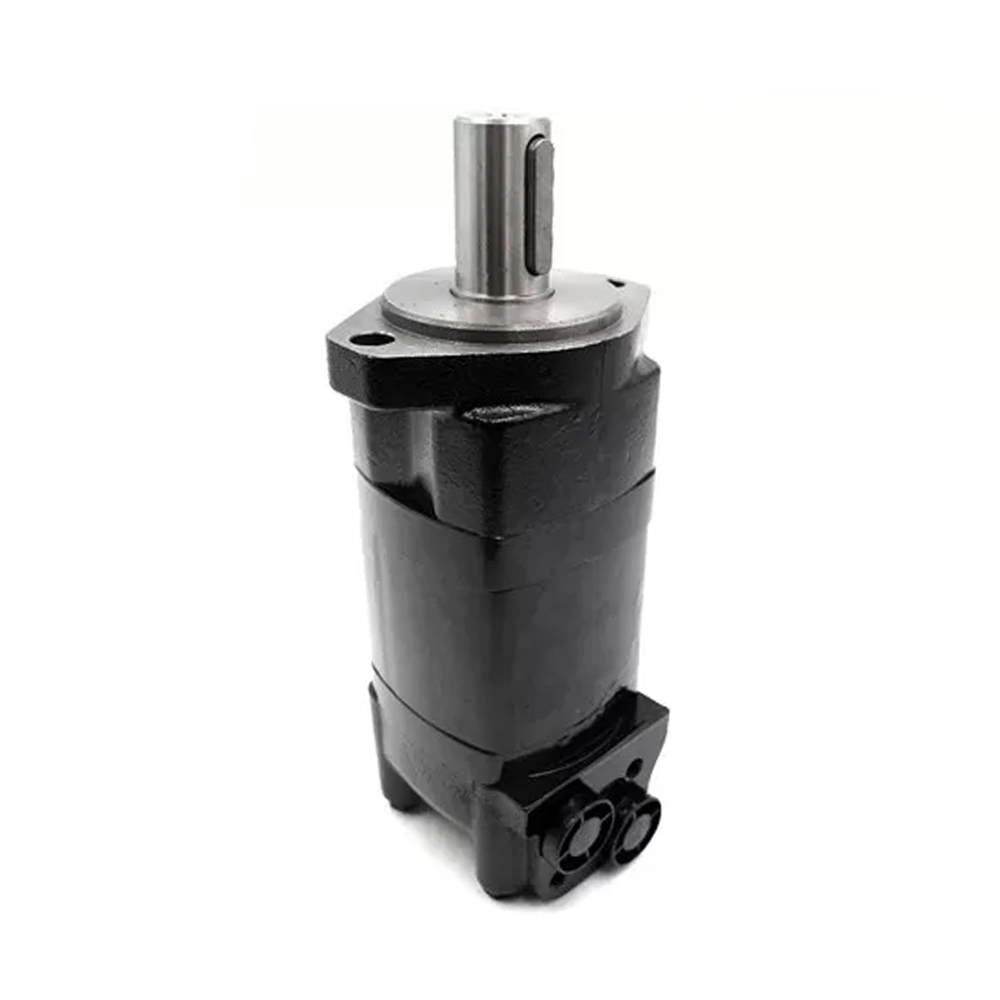

Hydraulic engine 400cc for IH John Deere Sugar cane harvesters, tractors and agricultural machine
Now for agricultural machinery equipment dealers, sugarcane harvester accessories dealers introduce this BMK2 motor
BMK2-400-F2-FE-SU, it's an equivalent for Eaton Char-lynn 104-3130
This hydraulic motor is widely used in IH and John Deere sugarcane harvesters
| 104-3130-006 | BMK2-400 | 393.8 cm3/r | STANDARD, 2 BOLT; 82.6. 13.59 106.4 SAE A | 31.75, 14 TOOTH, 12/24 DP 30 DEG. WITH .375-16 , 33.0 MIn FULL SPLINE LENGTH | .875-14 UNF-2B SAE O-RING .4375-20 UNF-2B SAE O-RING |
Xeriwell BMK2 = CHAR-LYNN 2000
| Main Specifications: | |||||||||||
| Type | BMK2 | BMK2 | BMK2 | BMK2 | BMK2 | BMK2 | BMK2 | BMK2 | BMK2 | BMK2 | |
| 65 | 80 | 100 | 125 | 160 | 200 | 250 | 315 | 400 | 475 | ||
| Geometric displacement (cm3 /rev.) | 65 | 80 | 100.9 | 129.8 | 156.8 | 193.4 | 242.5 | 304.3 | 390.8 | 485 | |
| Max. speed (rpm) | cont. | 835 | 800 | 742 | 576 | 477 | 385 | 308 | 246 | 191 | 153 |
| int. | 990 | 980 | 924 | 720 | 713 | 577 | 462 | 365 | 287 | 230 | |
| Max. torque (N·m) | cont. | 185 | 235 | 295 | 385 | 455 | 540 | 660 | 765 | 775 | 845 |
| int. | 245 | 345 | 445 | 560 | 570 | 665 | 820 | 885 | 925 | 930 | |
| Max. pressure drop (MPa) | cont. | 20.5 | 21 | 21 | 21 | 20.5 | 20.5 | 20.5 | 21 | 15.5 | 12 |
| int. | 27.5 | 31 | 31 | 31 | 26 | 26 | 26 | 24 | 17 | 14 | |
| peak | 31 | 31 | 31 | 31 | 31 | 31 | 31 | 31 | 20.5 | 17 | |
| Max. flow (L/min) | cont. | 55 | 65 | 75 | 75 | 75 | 75 | 75 | 75 | 75 | 75 |
| int. | 65 | 80 | 95 | 95 | 115 | 115 | 115 | 115 | 115 | 115 | |
| Weight (kg) | 9.2 | 9.4 | 9.7 | 10 | 10.2 | 10.5 | 11 | 11.5 | 12 | 12.4 | |
| * Continuous pressure :Max. value of operating motor continuously. | |||||||||||
| * Intermittent pressure :Max. value of operating motor in 6 seconds per minute. | |||||||||||
| * Peak pressure:Max. value of operating motor in 0.6 second per minute. | |||||||||||
