| Quantity: | |
|---|---|

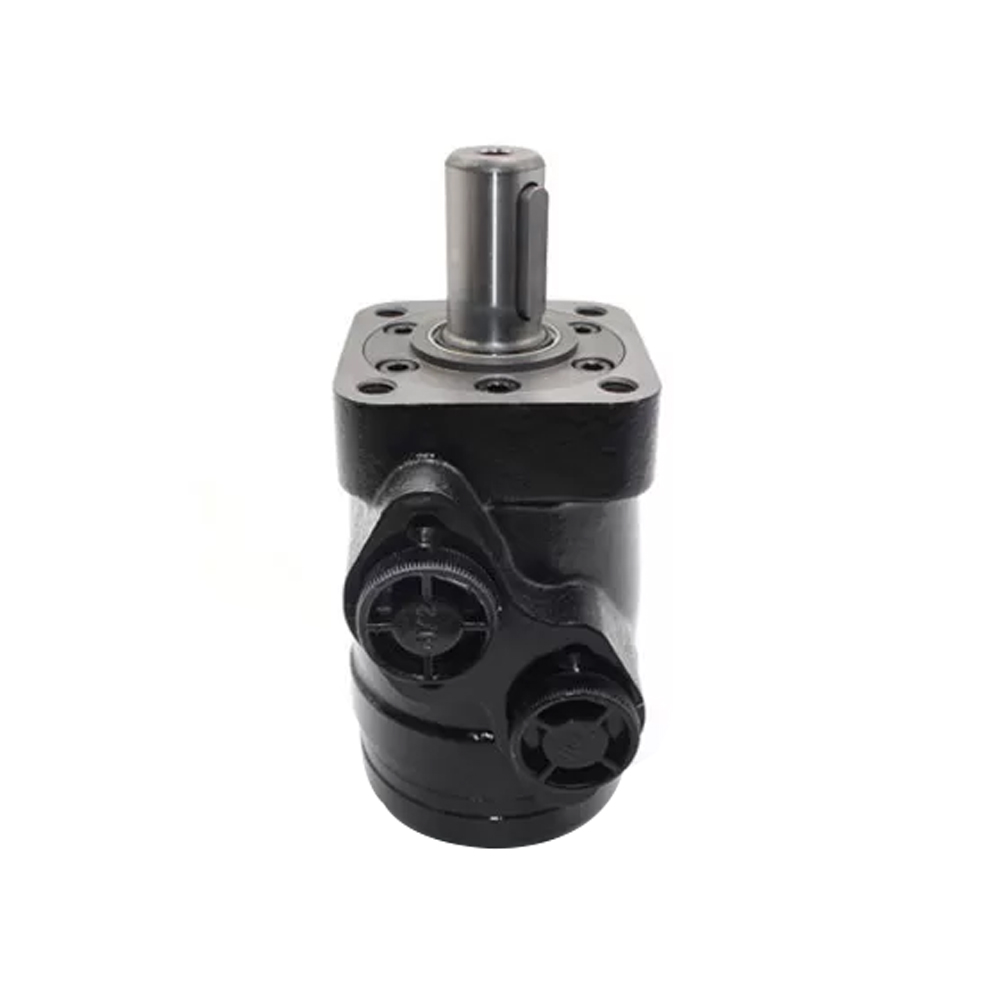

BMP
Xeriwell or Others
| Model No.: | BMP/OMP | Displacement: | 36cc |
|---|---|---|---|
| Speed: | 1500/1650rpm | Torque: | 55/76Nm |
| Max Power: | 8/11.5KW | Max Flow: | 55/60l/min |
| Certificate: | CE/ISO Certificate | Shaft: | 1inch Straight Key |
| Highlight: | OMP Hydraulic Drive Motor,BMP Hydraulic Drive Motor | ||
OEM 220936,125564 original replacement MACDON, IH Draper side belt,4belt hydraulic motors
40CC 4 BOLT Hydraulic Motor to fit SIDE DRAPER belt on -
MacDon D50, D60, D65, FD70, FD75
IH 2142, 2152, 2162
Cross Reference: MLHPQ40CN4UP08D, 101-1749-009
Characteristic Features
♦ Advanced manufacturing devices for the Gerolor gear set, which use low pressure of start-up, provide smooth reliable operation and high efficiency.
♦ Shaft seal can bear high pressure of back and the motor can be used in parallel or in series.
♦ Special design in the driver-linker and prolong operating life.
♦ Special design for distribution system can meet the requirement of low noise of unit.
♦ Compact volume and easy installation.
♦ The output shaft, with the deep groove ball bearing, can bear certain axial force and radial force.
♦ With two inner check valves, no drain connection.
| Model No.: | BMP/OMP | Displacement: | 36cc |
|---|---|---|---|
| Speed: | 1500/1650rpm | Torque: | 55/76Nm |
| Max Power: | 8/11.5KW | Max Flow: | 55/60l/min |
| Certificate: | CE/ISO Certificate | Shaft: | 1inch Straight Key |
| Highlight: | OMP Hydraulic Drive Motor,BMP Hydraulic Drive Motor | ||
OEM 220936,125564 original replacement MACDON, IH Draper side belt,4belt hydraulic motors
40CC 4 BOLT Hydraulic Motor to fit SIDE DRAPER belt on -
MacDon D50, D60, D65, FD70, FD75
IH 2142, 2152, 2162
Cross Reference: MLHPQ40CN4UP08D, 101-1749-009
Characteristic Features
♦ Advanced manufacturing devices for the Gerolor gear set, which use low pressure of start-up, provide smooth reliable operation and high efficiency.
♦ Shaft seal can bear high pressure of back and the motor can be used in parallel or in series.
♦ Special design in the driver-linker and prolong operating life.
♦ Special design for distribution system can meet the requirement of low noise of unit.
♦ Compact volume and easy installation.
♦ The output shaft, with the deep groove ball bearing, can bear certain axial force and radial force.
♦ With two inner check valves, no drain connection.
