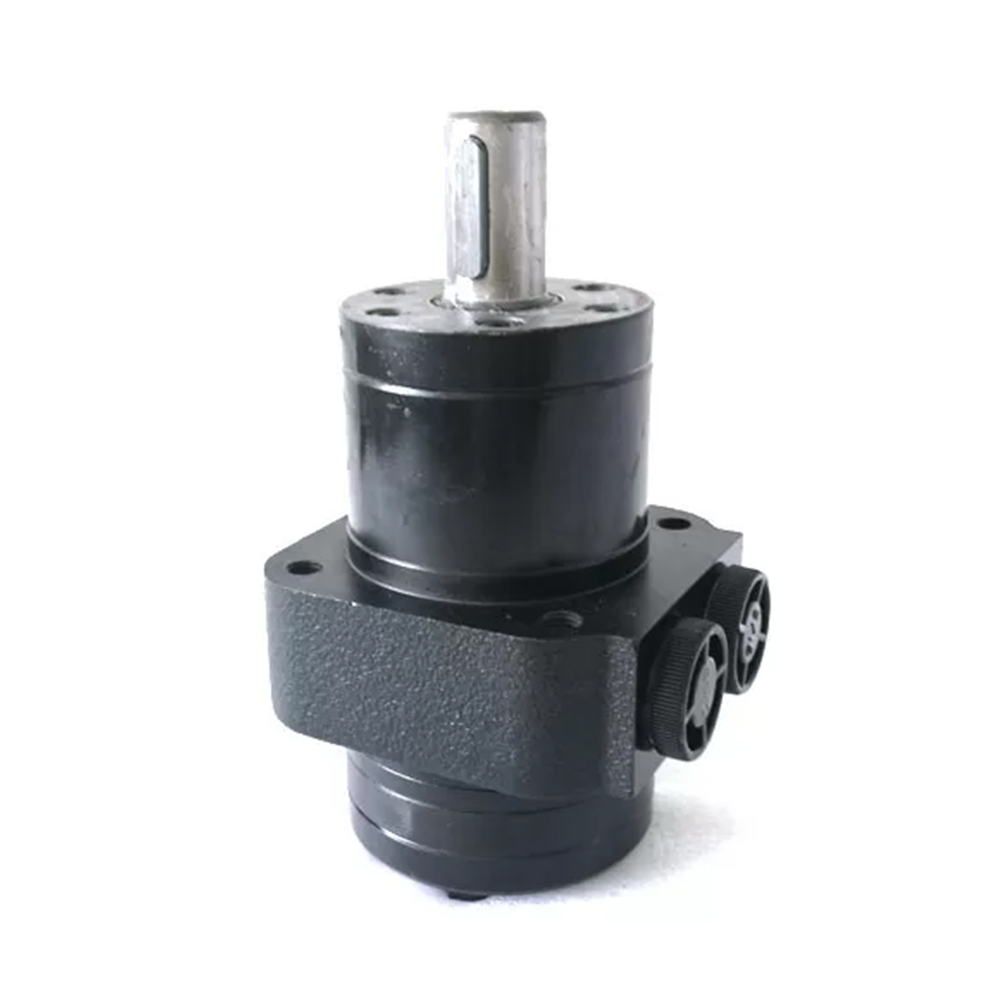

BMPW Series Motor
Xeriwell or Others
| Features: | Same ,M+S,Eaton Motor | Product Name: | Slow Speed High Torque Motor |
|---|---|---|---|
| Brand Name: | Xeriwell | Model Number: | BMPW / OMPW / Char - Lynn H Series |
| Displacement: | 100cc | Application: | Drilling Rig ,Harvesters, Augers, Conveyors, Machine Tools, Food Processing |
| Highlight: | slow speed high torque motor,lsht hydraulic motor | ||
Hydraulic component for integration in hydraulic systems hydraulic motor sweeper machery wheel motor
1. Characteristic features
• Advanced manufacturing devices for the Gerolor gear set, which use low pressure of start-up,
provide smooth, reliable operation and high efficiency.
• Shaft seal can bear high pressure of back and the motor can be used in parallel or in series.
• Special design for distribution system can meet the requirement of low noise of unit.
• Compact volume and easy installation
2. Specification
Type | BMP | BMP | BMP | BMP | BMP | BMP | BMP | BMP | BMP | BMP | BMP | |
Geometric displacement (cm3 /rev.) | 36 | 51.7 | 77.7 | 96.2 | 120.2 | 157.2 | 194.5 | 240.3 | 314.5 | 389.5 | 486.5 | |
Max. speed (rpm) | cont. | 1500 | 1150 | 770 | 615 | 490 | 383 | 310 | 250 | 192 | 155 | 120 |
int. | 1650 | 1450 | 960 | 770 | 615 | 475 | 385 | 310 | 240 | 190 | 150 | |
Max. torque (N·m) | cont. | 55 | 100 | 146 | 182 | 236 | 302 | 360 | 460 | 475 | 490 | 430 |
int. | 76 | 128 | 186 | 227 | 290 | 370 | 440 | 570 | 555 | 580 | 560 | |
peak | 96 | 148 | 218 | 264 | 360 | 434 | 540 | 670 | 840 | 840 | 780 | |
Max. output (kW) | cont. | 8 | 10 | 10 | 11 | 10 | 10 | 10 | 8.5 | 7 | 6 | 6 |
int. | 11.5 | 12 | 12 | 13 | 12 | 12 | 12 | 10.5 | 8.5 | 7 | 7 | |
Max. pressure drop (MPa) | cont. | 12.5 | 14 | 14 | 14 | 14 | 14 | 14 | 14 | 12 | 9.5 | 7 |
int. | 16.5 | 17.5 | 17.5 | 17.5 | 17.5 | 17.5 | 17.5 | 17.5 | 14 | 11.5 | 9 | |
peak | 22.5 | 22.5 | 22.5 | 22.5 | 22.5 | 22.5 | 22.5 | 22.5 | 22.5 | 18 | 13 | |
Max. flow (L/min) | cont. | 55 | 60 | 60 | 60 | 60 | 60 | 60 | 60 | 60 | 60 | 60 |
int. | 60 | 75 | 75 | 75 | 75 | 75 | 75 | 75 | 75 | 75 | 75 | |
Weight (kg) | 5.6 | 6 | 5.7 | 5.9 | 6 | 6.2 | 6.4 | 7 | 6.9 | 7.4 | 8 | |
3. Application
Low Speed High Torque Hydraulic Motor BMP Series can be widely applied
• hydraulic drive systems of mine construction machinery
• cranes and transporting equipment
• heavy-duty metallurgic machinery
• petroleum and vessel deck machinery
• geological drilling equipment
• agricultural and forest machinery
Other types for your ref.
