| Quantity: | |
|---|---|
4000 series
Xeriwell or Others
| Item: | Disc Geroler Motors | Model: | 4000 Series |
|---|---|---|---|
| Direction Of Rotation: | Reversible | Fastening: | 4 Bolts Standard Type |
| Shaft: | Key Shaft | Charlynn Code: | 109-1212 |
| Highlight: | 109-1212-006 eaton char lynn motor,4000 series eaton char lynn motor | ||

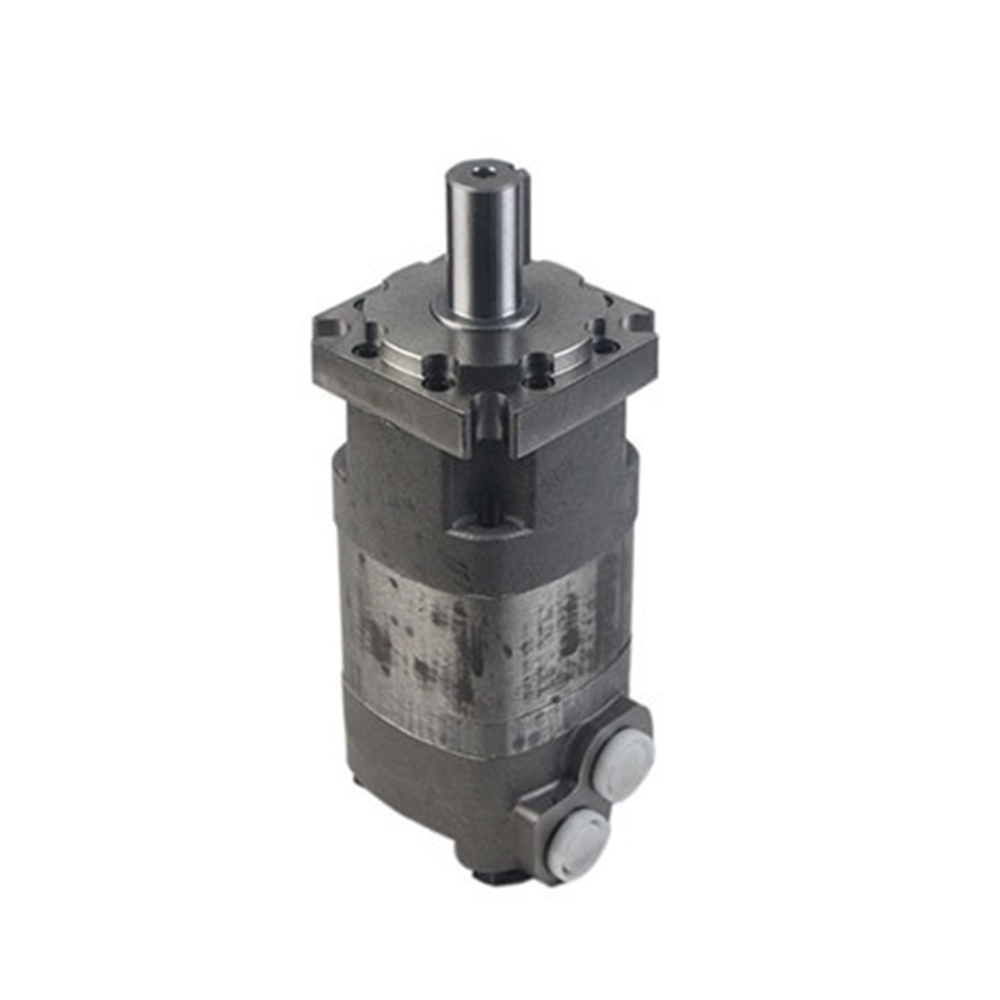

Hyd Motor OEM Ref. 109-1212-006 30.0 IN3 DISPLACEMENT, 4 BOLT SAE B MOUNT, 1-1/4" KEYED SHAFT, #12 SAE ORING PORT
Xeriwell technology supply the replacement charlynn motor BMK4 series motor
| Mfr. Number | Cubic Inch Disp. | Shaft | Keyway | Max GPM | Max RPM | Max PSI | Torque (lb-in) at Max PSI | Rotation |
| 109-1212 | 30 | 1-1/4" | 5/16" | 25 | 191 | 2000 | 8375 | Dual |
Product details:
Disc Motor
Geroler
Disc Valve
7/8-14 SAE O-Ring Port
30.06 Cubic Inch Displacement Per Rev
Xeriwell product line motor can deliver more than 40 hp in a small package. The disc valve design has the highest performance available.
Highly efficient Geroler® element provides energy savings
Widest range of available options on the market promotes maximum flexibility to fit into many applications
Disc valve design delivers the lowest pressure drop in the industry
Additional configurations available
please contact your local Applied® service center for more information
Five shaft configurations
Four mounting styles
BMK4 OEM NUMBER
| 109-1100-006 | 109-1001-AFT |
| 109-1101-006 | 109-1002-006 |
| 109-1102-006 | 109-1181-AFT |
| 109-1106-006 | 109-1003-006 |
| 109-1114-006 | 109-1012-006 |
| 109-1116-006 | 109-1100-006 |
| 109-1117-006 | 109-1120-AFT |
| 109-1118-006 | 109-1154-006 |
| 109-1119-006 | 109-1156-006 |
| 109-1120-006 | 109-1157-006 |
| 109-1212-006 | 109-1185-006 |
| 109-1225-006 | 109-1185-AFT |
| 109-1492-006 | 109-1189-AFT |
| 109-1516-006 | 109-1192-AFT |
| 109-1195-AFT | 109-1227-006 |
