| Quantity: | |
|---|---|
BMH500
Xeriwell or Others
| Product: | Danfoss Orbital Motor | Displacement: | 500CC |
|---|---|---|---|
| Max.Speed(rpm): | Cont.155rpm/int.184rpm | Max.Torque(N.m): | Cont.830N.m/int.1040N.m |
| Max. Pressure Drop: | Cont.12.5MPa/int.16MPa | Max.flow(L/min): | Cont.75L/min~int.90L/min |
| Highlight: | hustler wagon omh 500 hydraulic motor,g1/2 ports sauer danfoss hydraulic motor,omh 500 sauer danfoss hydraulic motor | ||

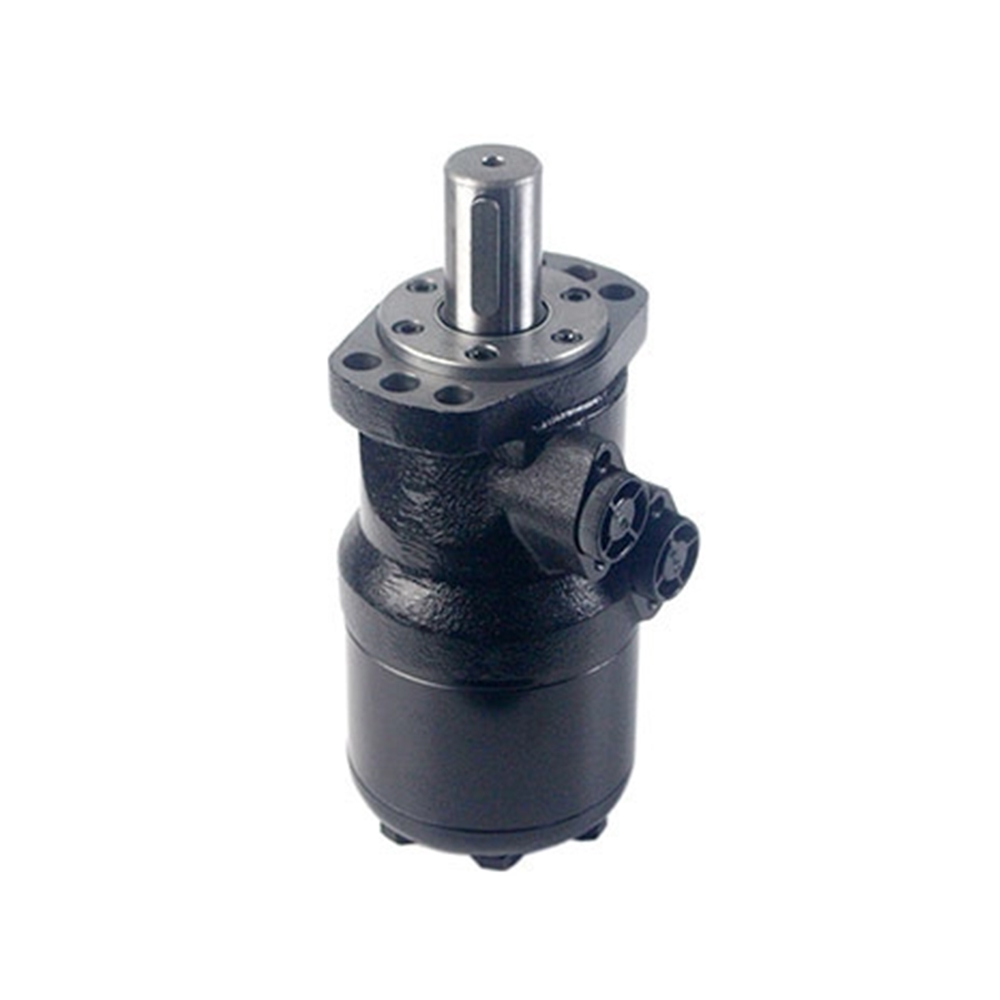

Hustler Wagon Hydraulic Motor OMH500 Sauer danfoss ,35mm key straight shaft,G1/2 ports
Product details:
displacement:500cc
flange:6 bolts flange
shaft:35mm key shaft
port size:G1/2 side ports
Hydraulic Motor used on Hustler Super Comby’s. Used to drive bed floor and the cross floor. Also used on Robertson/Hustler Mega Comby’s.
Main Specifications:
| Type | BMH 200 | BMH 250 | BMH 315 | BMH 400 | BMH 500 | |
Displacement (cc/rev) | 203.2 | 255.9 | 316.5 | 406.4 | 489.2 | |
Max torque (n.m) | cont | 510 | 621 | 740 | 850 | 830 |
| int | 439 | 348 | 282 | 220 | 184 | |
Max pressure (mpa) | cont | 17.5 | 17.5 | 17.5 | 15.5 | 12.5 |
| int | 20 | 20 | 20 | 19 | 16 | |
Max speed rate (rpm) | cont | 366 | 290 | 236 | 183 | 155 |
| int | 439 | 348 | 282 | 220 | 184 | |
Max flow (L/min) | cont | 75 | 75 | 75 | 75 | 75 |
| int | 90 | 90 | 90 | 90 | 90 | |
Weight(kg) | 10.5 | 11 | 11.5 | 12.3 | 13.0 | |
