BMH500
Xeriwell or Others

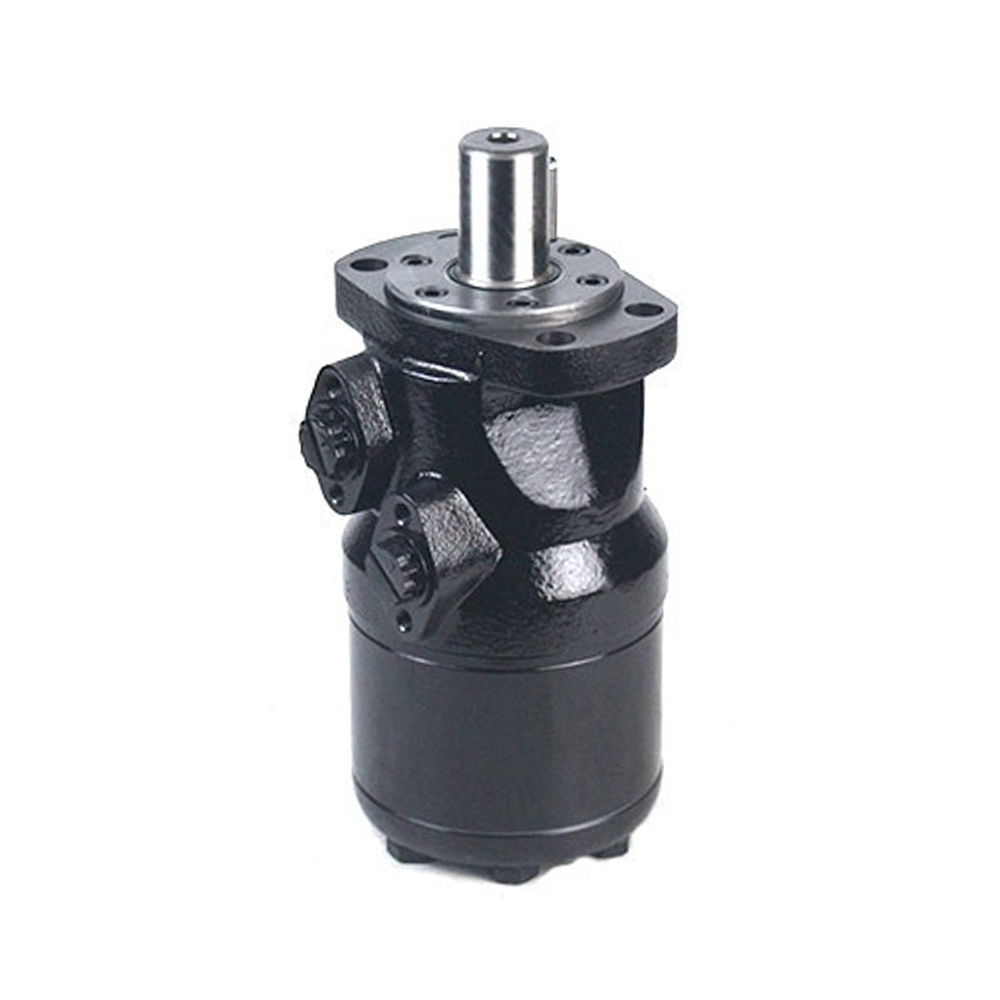

| Product: | Hydraulic Gerotor Motor | Displacement: | 500CC |
|---|---|---|---|
| Max.Speed(rpm): | Cont.155rpm/int.166rpm | Max.Torque(N.m): | Cont.830N.m/int.1040N.m |
| Max. Pressure Drop: | Cont.16MPa/int.18MPa | Max.flow(L/min): | Cont.75L/min~int.90L/min |
| Highlight: | BMH500 orbit hydraulic motor,500CC orbit hydraulic motor,BMH500 orbit motor | ||
Hustler Wagon Hydraulic Motor OMH500, 4 Bolt Magneto,31.75mm straight key shaft for Combi feedout wagons
Xeriwell techonlogy offer the OMH series motors, the same specification with Danfoss OMH Motors, M+S MH gerotor motors
Hydraulic Motor used on Hustler Super Comby’s. Used to drive bed floor and the cross floor. Also used on Robertson/Hustler Mega Comby’s.
BMH series motors are light and compact and thus easy to install in machinery like forklifts, lawn mowers, lifts, loaders and excavators.
Product details:
displacement:500cc
flange:4 bolts flange
shaft:31.75mm straight key
port size:7/8-14 UNF side ports
Main Specifications:
| Type | BMH 200 | BMH 250 | BMH 315 | BMH 400 | BMH 500 | |
Displacement (cc/rev) | 203.2 | 255.9 | 316.5 | 406.4 | 489.2 | |
Max torque (n.m) | cont | 510 | 621 | 740 | 850 | 830 |
| int | 439 | 348 | 282 | 220 | 184 | |
Max pressure (mpa) | cont | 17.5 | 17.5 | 17.5 | 15.5 | 12.5 |
| int | 20 | 20 | 20 | 19 | 16 | |
Max speed rate (rpm) | cont | 366 | 290 | 236 | 183 | 155 |
| int | 439 | 348 | 282 | 220 | 184 | |
Max flow (L/min) | cont | 75 | 75 | 75 | 75 | 75 |
| int | 90 | 90 | 90 | 90 | 90 | |
Weight(kg) | 10.5 | 11 | 11.5 | 12.3 | 13.0 | |
other type code
| Displacement | 200 | 250 | 315 | 400 | 500 |
| Cyl. Ø32 mm | 151H1002 | 151H1003 | 151H1004 | 151H1005 | 151H1006 |
| Cyl. Ø35 mm | 151H1012 | 151H1013 | 151H1014 | 151H1015 | 151H1016 |
| Cyl. 1 1/4 in | 151H1042 | 151H1043 | 151H1044 | 151H1045 | 151H1046 |
| Splined 1 in (SAE 6B) | 151H1080 | 151H1082 | 151H1083 | 151H1084 | 151H1081 |
| Splined 1 1/4 in | 151H1022 | 151H1023 | 151H1024 | 151H1025 | 151H1026 |
| Splined 1 1/4 in | 151H1052 | 151H1053 | 151H1054 | 151H1055 | 151H1056 |
| Product: | Hydraulic Gerotor Motor | Displacement: | 500CC |
|---|---|---|---|
| Max.Speed(rpm): | Cont.155rpm/int.166rpm | Max.Torque(N.m): | Cont.830N.m/int.1040N.m |
| Max. Pressure Drop: | Cont.16MPa/int.18MPa | Max.flow(L/min): | Cont.75L/min~int.90L/min |
| Highlight: | BMH500 orbit hydraulic motor,500CC orbit hydraulic motor,BMH500 orbit motor | ||
Hustler Wagon Hydraulic Motor OMH500, 4 Bolt Magneto,31.75mm straight key shaft for Combi feedout wagons
Xeriwell techonlogy offer the OMH series motors, the same specification with Danfoss OMH Motors, M+S MH gerotor motors
Hydraulic Motor used on Hustler Super Comby’s. Used to drive bed floor and the cross floor. Also used on Robertson/Hustler Mega Comby’s.
BMH series motors are light and compact and thus easy to install in machinery like forklifts, lawn mowers, lifts, loaders and excavators.
Product details:
displacement:500cc
flange:4 bolts flange
shaft:31.75mm straight key
port size:7/8-14 UNF side ports
Main Specifications:
| Type | BMH 200 | BMH 250 | BMH 315 | BMH 400 | BMH 500 | |
Displacement (cc/rev) | 203.2 | 255.9 | 316.5 | 406.4 | 489.2 | |
Max torque (n.m) | cont | 510 | 621 | 740 | 850 | 830 |
| int | 439 | 348 | 282 | 220 | 184 | |
Max pressure (mpa) | cont | 17.5 | 17.5 | 17.5 | 15.5 | 12.5 |
| int | 20 | 20 | 20 | 19 | 16 | |
Max speed rate (rpm) | cont | 366 | 290 | 236 | 183 | 155 |
| int | 439 | 348 | 282 | 220 | 184 | |
Max flow (L/min) | cont | 75 | 75 | 75 | 75 | 75 |
| int | 90 | 90 | 90 | 90 | 90 | |
Weight(kg) | 10.5 | 11 | 11.5 | 12.3 | 13.0 | |
other type code
| Displacement | 200 | 250 | 315 | 400 | 500 |
| Cyl. Ø32 mm | 151H1002 | 151H1003 | 151H1004 | 151H1005 | 151H1006 |
| Cyl. Ø35 mm | 151H1012 | 151H1013 | 151H1014 | 151H1015 | 151H1016 |
| Cyl. 1 1/4 in | 151H1042 | 151H1043 | 151H1044 | 151H1045 | 151H1046 |
| Splined 1 in (SAE 6B) | 151H1080 | 151H1082 | 151H1083 | 151H1084 | 151H1081 |
| Splined 1 1/4 in | 151H1022 | 151H1023 | 151H1024 | 151H1025 | 151H1026 |
| Splined 1 1/4 in | 151H1052 | 151H1053 | 151H1054 | 151H1055 | 151H1056 |
