BMTY-470
Xeriwell or Others

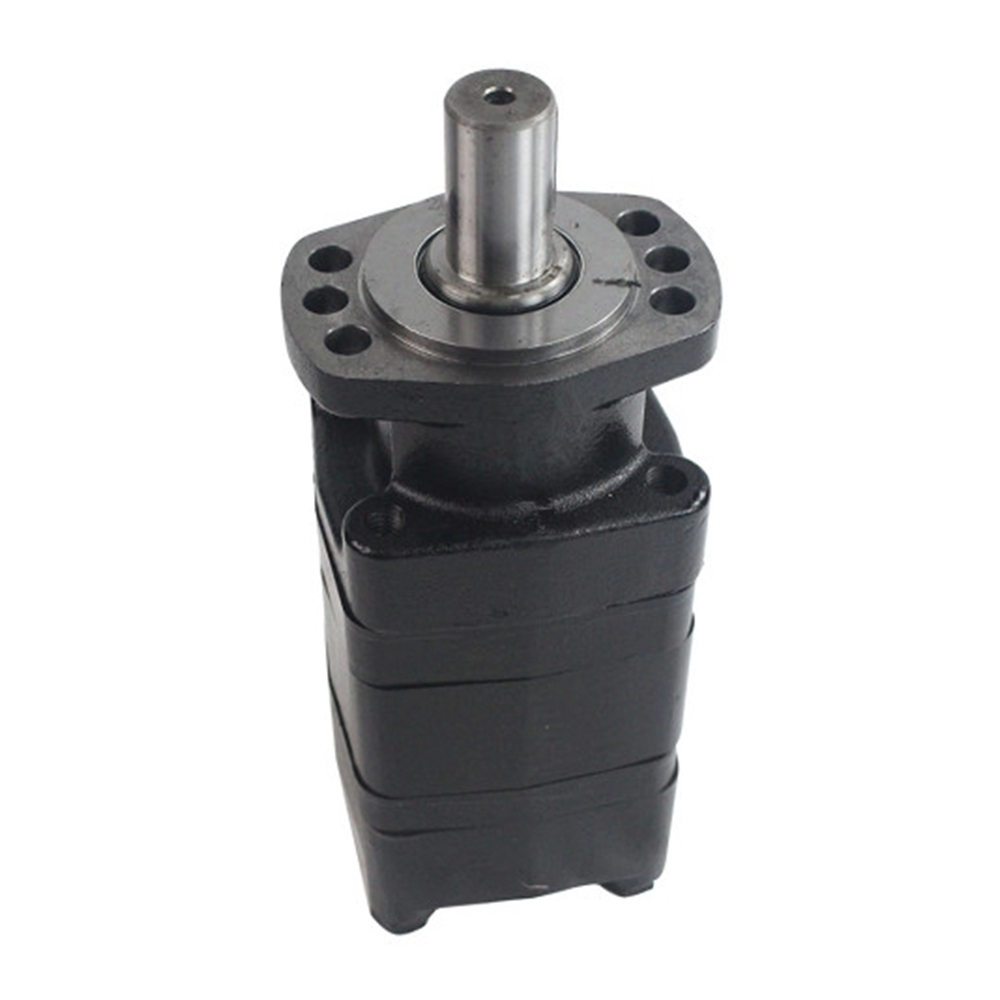

Hot selling China hydraulic motor factory wholesale BMTY-470 TG0470 TGK0470 hydraulic torqmotor, 6 bolt mounting
Quick review:
Hanjiu BMTY = Parker TGK
Quick detail:
| Product | Orbital Hydraulic Motor |
| Model No. | BMTY-470 |
| Size | 470 ml/r |
| Flange | 6 Bolt |
| Rotation | Clockwise |
Technical Specs.:
| Type | BMT 160 | BMT 200 | BMT 230 | BMT 250 | BMT 315 | BMT 400 | BMT 470 | BMT 630 | BMT 800 | |
| Geometric displacement (cm3 /rev.) | 161.1 | 201.4 | 232.5 | 251.8 | 326.3 | 410.9 | 523.6 | 629.1 | 801.8 | |
| Max. speed (rpm) | cont. | 625 | 625 | 536 | 500 | 380 | 305 | 240 | 196 | 154 |
| int. | 780 | 750 | 643 | 600 | 460 | 365 | 285 | 233 | 185 | |
| Max. torque (N·m) | cont. | 470 | 590 | 670 | 730 | 950 | 1080 | 1220 | 1318 | 1464 |
| int. | 560 | 710 | 821 | 880 | 1140 | 1260 | 1370 | 1498 | 1520 | |
| peak | 669 | 838 | 958 | 1036 | 1346.3 | 1450.3 | 1643.8 | 1618.8 | 1665 | |
| Max. output (kW) | cont. | 27.7 | 34.9 | 34.7 | 34.5 | 34.9 | 31.2 | 28.8 | 25.3 | 22.2 |
| int. | 32 | 40 | 40 | 40 | 40 | 35 | 35 | 27.5 | 26.8 | |
| Max. pressure drop (MPa) | cont. | 20 | 20 | 20 | 20 | 20 | 18 | 16 | 14 | 12.5 |
| int. | 24 | 24 | 24 | 24 | 24 | 21 | 18 | 16 | 13 | |
| peak | 28 | 28 | 28 | 28 | 28 | 24 | 21 | 19 | 16 | |
| Max. flow (L/min) | cont. | 100 | 125 | 125 | 125 | 125 | 125 | 125 | 125 | 125 |
| int. | 125 | 150 | 150 | 150 | 150 | 150 | 150 | 150 | 150 | |
| Max. inlet pressure (MPa) | cont. | 21 | 21 | 21 | 21 | 21 | 21 | 21 | 21 | 21 |
| int. | 25 | 25 | 25 | 25 | 25 | 25 | 25 | 25 | 25 | |
| peak | 30 | 30 | 30 | 30 | 30 | 30 | 30 | 30 | 30 | |
| Weight (kg) | 19.5 | 20 | 20.4 | 20.5 | 21 | 22 | 23 | 24 | 25 | |
* Continuous pressure :Max. value of operating motor continuously.
* Intermittent pressure :Max. value of operating motor in 6 seconds per minute.
* Peak pressure:Max. value of operating motor in 0.6 second per minute.

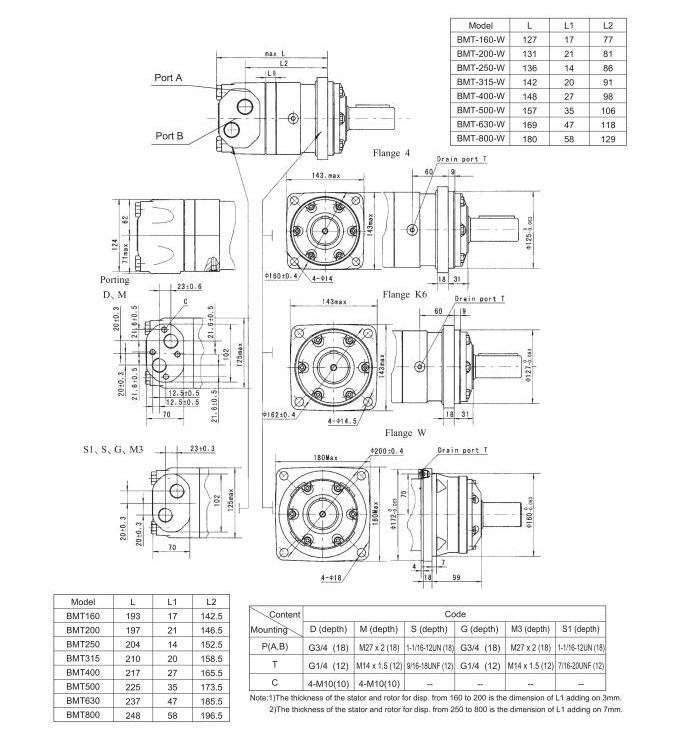

| Model | L | L1 | L2 |
| BMT-160-W | 127 | 17 | 77 |
| BMT-200-W | 131 | 21 | 81 |
| BMT-250-W | 136 | 14 | 86 |
| BMT-315-W | 142 | 20 | 91 |
| BMT-400-W | 148 | 27 | 98 |
| BMT-500-W | 157 | 35 | 106 |
| BMT-630-W | 169 | 47 | 118 |
| BMT-800-W | 180 | 58 | 129 |
| Model | L | L1 | L2 |
| BMT160 | 193 | 17 | 142.5 |
| BMT200 | 197 | 21 | 146.5 |
| BMT250 | 204 | 14 | 152.5 |
| BMT315 | 210 | 20 | 158.5 |
| BMT400 | 217 | 27 | 165.5 |
| BMT500 | 225 | 35 | 173.5 |
| BMT630 | 237 | 47 | 185.5 |
| BMT800 | 248 | 58 | 196.5 |
| Mounting Content | Code | |||||
| D (depth) | M (depth) | S (depth) | G (depth) | M3 (depth) | S1 (depth) | |
| P(A,B) | G3/4（18） | M27 x 2（18） | 1-1/16-12UN (18) | G3/4（18） | M27 x 2（18） | 1-1/16-12UN (18) |
| T | G1/4（12） | M14 x 1.5 (12) | 9/16-18UNF (12) | G1/4（12） | M14 x 1.5 (12) | 7/16-20UNF (12) |
| C | 4-M10(10) | 4-M10(10) | -- | -- | -- | -- |
| Note:1)The thickness of the stator and rotor for disp. from 160 to 200 is the dimension of L1 adding on 3mm. 2)The thickness of the stator and rotor for disp. from 250 to 800 is the dimension of L1 adding on 7mm. | ||||||
