| Quantity: | |
|---|---|
BMER750
Xeriwell or Others
| Type: | Concrete Pump Auger Motor | Speed: | Low Speed High Torque |
|---|---|---|---|
| OEM: | Available | Displacement: | 750cc |
| Warranty: | 12-18 Months | Application: | Concrete Pump |
| Highlight: | slow speed high torque motor,omt hydraulic motor | ||

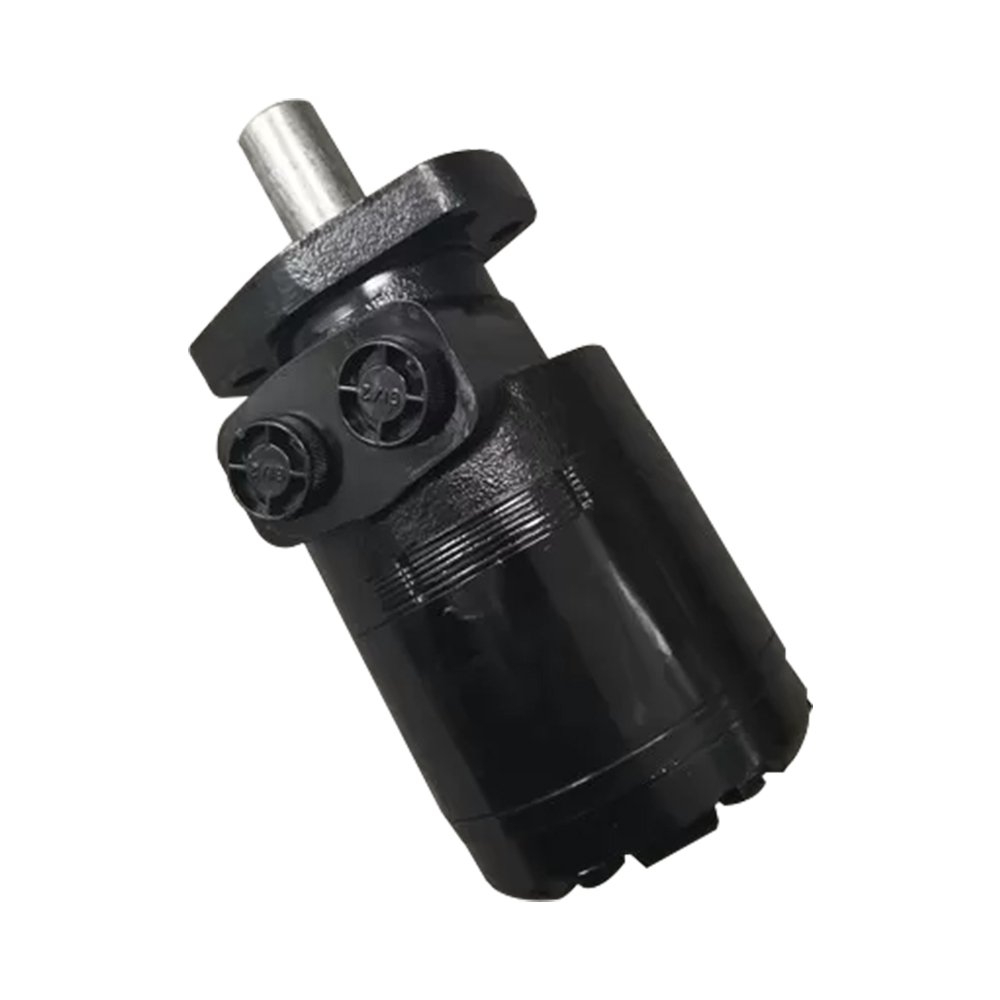

High Torque Powerful Putzmeister Concrete Pump Auger Motor 750cc / Parker TF
| Concrete Pump | Motor |
| Putzmeister | BMH / OMH / MH160cc,500cc,750cc |
| SCHWING | BMH / OMH / MH160cc,500cc,750cc |
| CIFA | BMH / OMH / MH160cc,500cc,750cc |
| JUNJIN | BMH / OMH / MH160cc,500cc,750cc |
| Sany | BMH / OMH / MH160cc,500cc,750cc |
1. Features
Low internal leakage
High torque at low speeds
Large displacement volume
Relatively small size
Low noise level
Longer life expectancy
Low speed, high torque motors
Roller vane type drive system – offers high volumetric efficiency and long life.
Manufactured with high quality materials and systems to exacting standards
2. Main Specifications
| Type | BMER 125 | BMER 160 | BMER 200 | BMER 230 | BMER 250 | BMER 300 | BMER 350 | BMER 375 | BMER 475 | BMER 540 | BMER 750 | |
Geometric displacement (cm3 /rev.) | 118 | 156 | 196 | 228 | 257 | 296 | 345 | 371 | 462 | 540 | 745 | |
| Max. speed (rpm) | cont. | 360 | 375 | 330 | 290 | 290 | 250 | 220 | 200 | 160 | 140 | 100 |
| int. | 490 | 470 | 425 | 365 | 350 | 315 | 270 | 240 | 195 | 170 | 120 | |
| Max. torque (N*m) | cont. | 325 | 450 | 530 | 625 | 700 | 810 | 905 | 990 | 1085 | 980 | 1050 |
| int. | 380 | 525 | 600 | 710 | 790 | 930 | 1035 | 1140 | 1180 | 1240 | 1180 | |
| peak | 450 | 590 | 750 | 870 | 980 | 1120 | 1285 | 1360 | 1260 | 1380 | 1370 | |
| Max. output (kW) | cont. | 12.0 | 15 | 15.5 | 16.0 | 17.5 | 18.0 | 17.5 | 16.5 | 14.5 | 11.5 | 8.0 |
| int. | 14.0 | 17.5 | 18.0 | 19.0 | 20.0 | 21.0 | 20.0 | 19.0 | 16.5 | 15.0 | 10.0 | |
| Max. pressure drop (MPa) | cont. | 20.5 | 20.5 | 20.5 | 20.5 | 20.5 | 20.5 | 20.5 | 20.5 | 17.5 | 14 | 10.5 |
| int. | 24 | 24 | 24 | 24 | 24 | 24 | 24 | 24 | 19 | 17.5 | 12 | |
| peak | 27.6 | 27.6 | 27.6 | 27.6 | 27.6 | 27.6 | 27.6 | 27.6 | 20.5 | 20.5 | 14 | |
| Max. flow (L/min) | cont. | 45 | 60 | 70 | 70 | 75 | 80 | 80 | 75 | 75 | 75 | 75 |
| int. | 60 | 75 | 85 | 85 | 90 | 95 | 95 | 90 | 90 | 90 | 90 | |
3. Applications
• Concrete Pump
• Conveyor drives
• Rotator motors
• Agricultural machinery
• Wheel drives
4. Workshop
Our processing equipment from Germany,oil seal is high pressure oil seal,precision parts processing and strict quality control.
| 排量 (cm3/rev.) | 125 | 160 | 200 | 230 | 250 | 300 | 350 | 375 | 475 | 540 | 750 |
| L1(mm) | 10.2 | 13.5 | 17 | 19.5 | 22 | 25.4 | 29.5 | 31.8 | 39.4 | 47.3 | 63.5 |
| L(mm) | 157 | 160 | 163.5 | 166 | 168.5 | 172 | 176 | 178.5 | 186 | 194 | 210 |
| 重量 (kg) | 10.6 | 10.9 | 11.2 | 11.3 | 11.4 | 11.6 | 12 | 12.5 | 13 | 13.5 | 15 |
| Type: | Concrete Pump Auger Motor | Speed: | Low Speed High Torque |
|---|---|---|---|
| OEM: | Available | Displacement: | 750cc |
| Warranty: | 12-18 Months | Application: | Concrete Pump |
| Highlight: | slow speed high torque motor,omt hydraulic motor | ||
High Torque Powerful Putzmeister Concrete Pump Auger Motor 750cc / Parker TF
| Concrete Pump | Motor |
| Putzmeister | BMH / OMH / MH160cc,500cc,750cc |
| SCHWING | BMH / OMH / MH160cc,500cc,750cc |
| CIFA | BMH / OMH / MH160cc,500cc,750cc |
| JUNJIN | BMH / OMH / MH160cc,500cc,750cc |
| Sany | BMH / OMH / MH160cc,500cc,750cc |
1. Features
Low internal leakage
High torque at low speeds
Large displacement volume
Relatively small size
Low noise level
Longer life expectancy
Low speed, high torque motors
Roller vane type drive system – offers high volumetric efficiency and long life.
Manufactured with high quality materials and systems to exacting standards
2. Main Specifications
| Type | BMER 125 | BMER 160 | BMER 200 | BMER 230 | BMER 250 | BMER 300 | BMER 350 | BMER 375 | BMER 475 | BMER 540 | BMER 750 | |
Geometric displacement (cm3 /rev.) | 118 | 156 | 196 | 228 | 257 | 296 | 345 | 371 | 462 | 540 | 745 | |
| Max. speed (rpm) | cont. | 360 | 375 | 330 | 290 | 290 | 250 | 220 | 200 | 160 | 140 | 100 |
| int. | 490 | 470 | 425 | 365 | 350 | 315 | 270 | 240 | 195 | 170 | 120 | |
| Max. torque (N*m) | cont. | 325 | 450 | 530 | 625 | 700 | 810 | 905 | 990 | 1085 | 980 | 1050 |
| int. | 380 | 525 | 600 | 710 | 790 | 930 | 1035 | 1140 | 1180 | 1240 | 1180 | |
| peak | 450 | 590 | 750 | 870 | 980 | 1120 | 1285 | 1360 | 1260 | 1380 | 1370 | |
| Max. output (kW) | cont. | 12.0 | 15 | 15.5 | 16.0 | 17.5 | 18.0 | 17.5 | 16.5 | 14.5 | 11.5 | 8.0 |
| int. | 14.0 | 17.5 | 18.0 | 19.0 | 20.0 | 21.0 | 20.0 | 19.0 | 16.5 | 15.0 | 10.0 | |
| Max. pressure drop (MPa) | cont. | 20.5 | 20.5 | 20.5 | 20.5 | 20.5 | 20.5 | 20.5 | 20.5 | 17.5 | 14 | 10.5 |
| int. | 24 | 24 | 24 | 24 | 24 | 24 | 24 | 24 | 19 | 17.5 | 12 | |
| peak | 27.6 | 27.6 | 27.6 | 27.6 | 27.6 | 27.6 | 27.6 | 27.6 | 20.5 | 20.5 | 14 | |
| Max. flow (L/min) | cont. | 45 | 60 | 70 | 70 | 75 | 80 | 80 | 75 | 75 | 75 | 75 |
| int. | 60 | 75 | 85 | 85 | 90 | 95 | 95 | 90 | 90 | 90 | 90 | |
3. Applications
• Concrete Pump
• Conveyor drives
• Rotator motors
• Agricultural machinery
• Wheel drives
4. Workshop
Our processing equipment from Germany,oil seal is high pressure oil seal,precision parts processing and strict quality control.
| 排量 (cm3/rev.) | 125 | 160 | 200 | 230 | 250 | 300 | 350 | 375 | 475 | 540 | 750 |
| L1(mm) | 10.2 | 13.5 | 17 | 19.5 | 22 | 25.4 | 29.5 | 31.8 | 39.4 | 47.3 | 63.5 |
| L(mm) | 157 | 160 | 163.5 | 166 | 168.5 | 172 | 176 | 178.5 | 186 | 194 | 210 |
| 重量 (kg) | 10.6 | 10.9 | 11.2 | 11.3 | 11.4 | 11.6 | 12 | 12.5 | 13 | 13.5 | 15 |
