| Quantity: | |
|---|---|
BMV630 , BMV800
Xeriwell or Others
| Features: | High Pressure Oil Seal | Product Name: | Hydraulic Drive Motor BMV630 |
|---|---|---|---|
| Brand Name: | Xeriwell | Model Number: | BMV630 |
| Displacement: | 315cc - 1000cc | Application: | Wood Cone Splitter |
| Highlight: | large hydraulic motor,hydraulic lift motor | ||

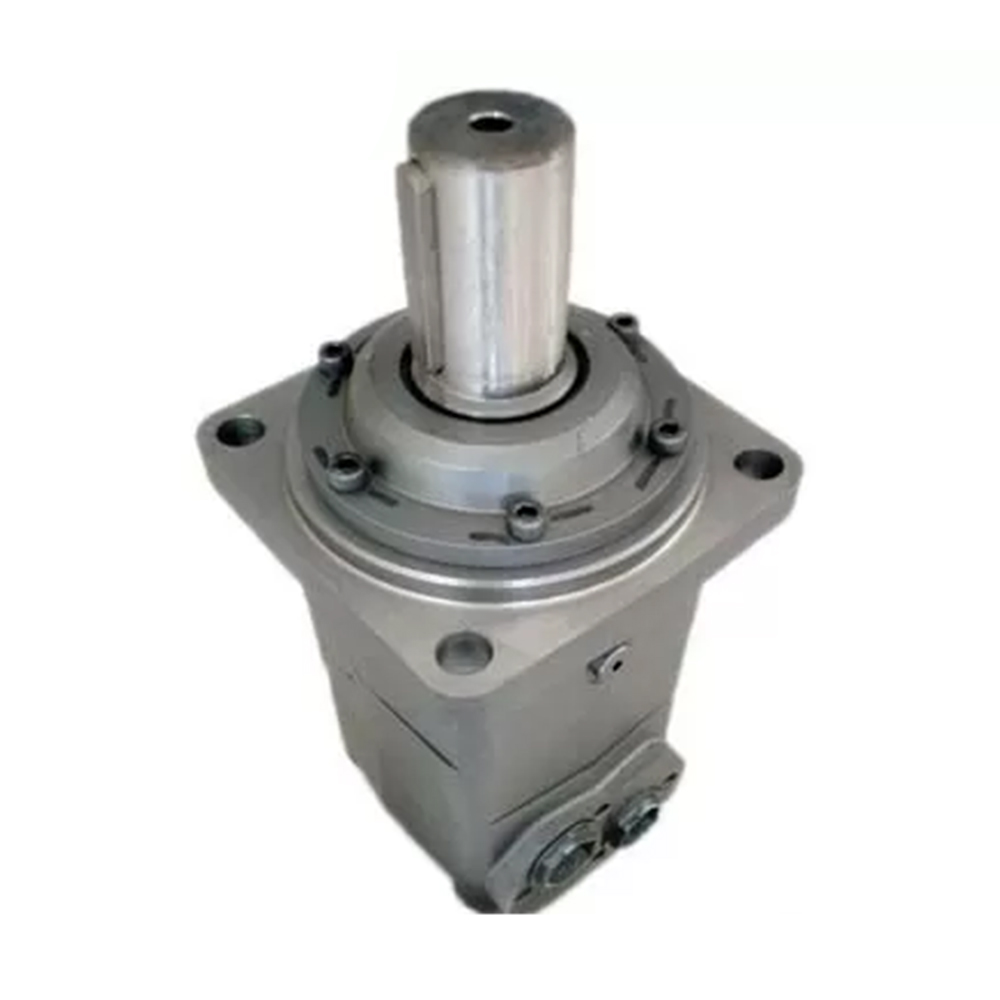

Hydraulic Drive Motor BMV630 / BMV800 For Cone Splitter , Excavator Splitter
1. Characteristic Features
BMV / OMV Motors widely used for Hydraulic Wood Splitter,Excavator Splitter and Mining Equipment.
• Constant operating torque over a wide speed range
• Smooth running over the entire speed range
• High starting torque
• High efficiency
• High return pressure without the use of drain line (High pressure shaft seal)
• Long life under extreme operating conditions
• High radial and axial bearing capacity
• Robust and compact design
• Suitable for a wide varie
2. Specification
| Type | BMV 315 | BMV 400 | BMV 500 | BMV 630 | BMV 800 | BMV 1000 | |
| Geometric displacement (cm3 /rev.) | 333 | 419 | 518 | 666 | 801 | 990 | |
| Max. speed (rpm) | cont. | 510 | 500 | 400 | 320 | 250 | 200 |
| int. | 630 | 600 | 480 | 380 | 300 | 240 | |
| Max. torque (N·m) | cont. | 920 | 1180 | 1460 | 1660 | 1880 | 2015 |
| int. | 1110 | 1410 | 1760 | 1940 | 2110 | 2280 | |
| peak | 1290 | 1640 | 2050 | 2210 | 2470 | 2400 | |
| Max. output (kW) | cont. | 38 | 47 | 47 | 40 | 33 | 28.6 |
| int. | 46 | 56 | 56 | 56 | 44 | 40 | |
| Max. pressure drop (MPa) | cont. | 20 | 20 | 20 | 18 | 16 | 14 |
| int. | 24 | 24 | 24 | 21 | 18 | 16 | |
| peak | 28 | 28 | 28 | 24 | 21 | 18 | |
| Max. flow (L/min) | cont. | 160 | 200 | 200 | 200 | 200 | 200 |
| int. | 200 | 240 | 240 | 240 | 240 | 240 | |
| Weight (kg) | 31.8 | 32.6 | 33.5 | 34.9 | 36.5 | 38.6 | |
3. Application
Hydraulic Drive Motor BMV630 / BMV800 Hydraulic motors
• Cone Splitter
• Excavator Splitter
• Drilling Machine
• Mining Equipment
• Geological exploration
| Features: | High Pressure Oil Seal | Product Name: | Hydraulic Drive Motor BMV630 |
|---|---|---|---|
| Brand Name: | Xeriwell | Model Number: | BMV630 |
| Displacement: | 315cc - 1000cc | Application: | Wood Cone Splitter |
| Highlight: | large hydraulic motor,hydraulic lift motor | ||
Hydraulic Drive Motor BMV630 / BMV800 For Cone Splitter , Excavator Splitter
1. Characteristic Features
BMV / OMV Motors widely used for Hydraulic Wood Splitter,Excavator Splitter and Mining Equipment.
• Constant operating torque over a wide speed range
• Smooth running over the entire speed range
• High starting torque
• High efficiency
• High return pressure without the use of drain line (High pressure shaft seal)
• Long life under extreme operating conditions
• High radial and axial bearing capacity
• Robust and compact design
• Suitable for a wide varie
2. Specification
| Type | BMV 315 | BMV 400 | BMV 500 | BMV 630 | BMV 800 | BMV 1000 | |
| Geometric displacement (cm3 /rev.) | 333 | 419 | 518 | 666 | 801 | 990 | |
| Max. speed (rpm) | cont. | 510 | 500 | 400 | 320 | 250 | 200 |
| int. | 630 | 600 | 480 | 380 | 300 | 240 | |
| Max. torque (N·m) | cont. | 920 | 1180 | 1460 | 1660 | 1880 | 2015 |
| int. | 1110 | 1410 | 1760 | 1940 | 2110 | 2280 | |
| peak | 1290 | 1640 | 2050 | 2210 | 2470 | 2400 | |
| Max. output (kW) | cont. | 38 | 47 | 47 | 40 | 33 | 28.6 |
| int. | 46 | 56 | 56 | 56 | 44 | 40 | |
| Max. pressure drop (MPa) | cont. | 20 | 20 | 20 | 18 | 16 | 14 |
| int. | 24 | 24 | 24 | 21 | 18 | 16 | |
| peak | 28 | 28 | 28 | 24 | 21 | 18 | |
| Max. flow (L/min) | cont. | 160 | 200 | 200 | 200 | 200 | 200 |
| int. | 200 | 240 | 240 | 240 | 240 | 240 | |
| Weight (kg) | 31.8 | 32.6 | 33.5 | 34.9 | 36.5 | 38.6 | |
3. Application
Hydraulic Drive Motor BMV630 / BMV800 Hydraulic motors
• Cone Splitter
• Excavator Splitter
• Drilling Machine
• Mining Equipment
• Geological exploration
