| Quantity: | |
|---|---|
BMM
Xeriwell or Others
| Type: | Hydraulic Small Motor | Max Torque: | Cont.11-46n.m/int15-88n.m |
|---|---|---|---|
| Max Speed: | Cont400-1950rpm/int.500-2450rpm | Displacement: | 8,12, 20, 32, 40, 50ML/R |
| Max Flow: | Cont.16-20l/min Int.20-25l/min | Max.output: | Cont.1.8-2.4kw/int.2.6-3.2kw |
| Highlight: | Omm high speed hydraulic motor,Omm motor,50ML/R high speed hydraulic motor | ||

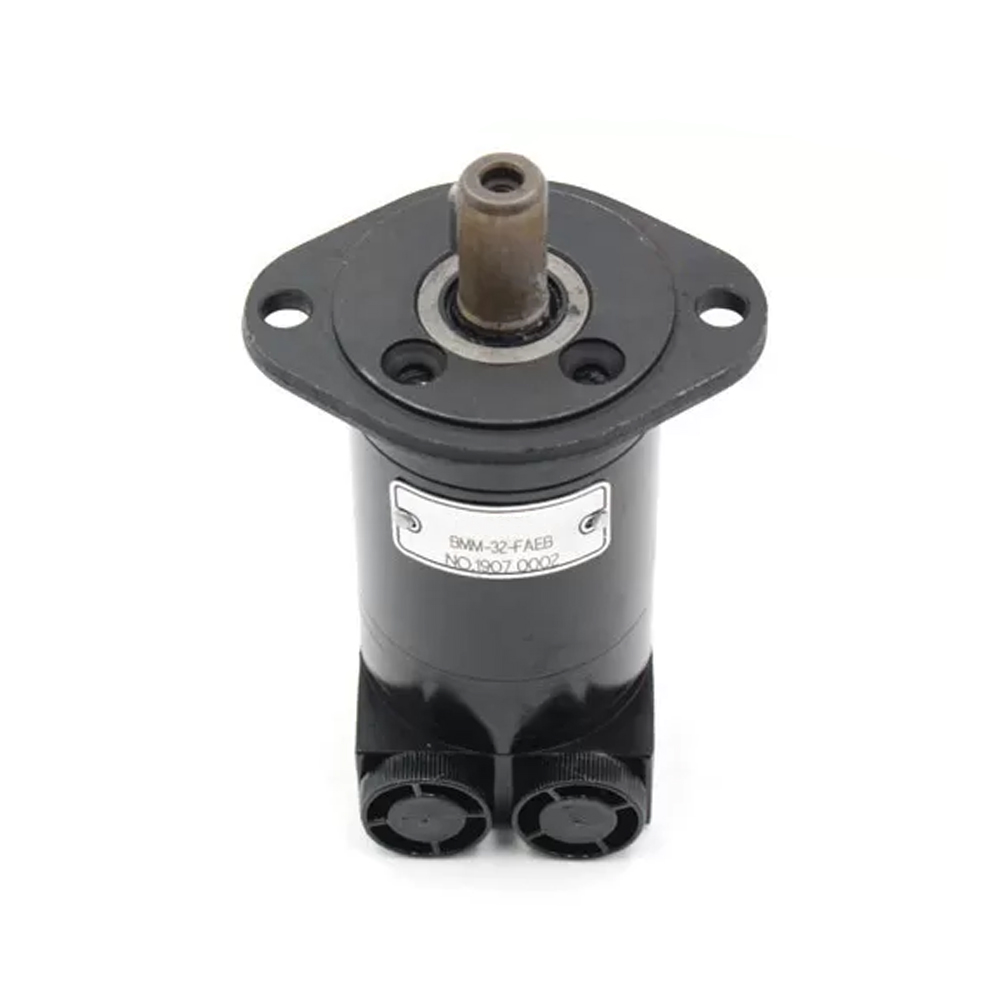

BMM series motor are small volume, economical type, which is designed with shaft distribution flow,
which adopt the Gerotor gear set design and provide compact volume, high power and low weight
Chartacteristic fectures:
*Advanced manufacturing devices for the Gerotor gear set,which provide small volume, high efficiency and long life.
*Shaft seal can bear high pressure of motor of which can be used in parallel or in series.
*Advanced construction design, high power and low weight.
Main Specifications:
| type | BMM8 | BMM12 | BMM20 | BMM32 | BMM40 | BMM50 | |
| displacement | 8.2 | 12.9 | 19.9 | 31.6 | 39.8 | 50.3 | |
| Max speed(rpm) | rated | 1537 | 1256 | 814 | 513 | 452 | 358 |
| Cont. | 1950 | 1550 | 1000 | 630 | 500 | 400 | |
| int. | 2450 | 1940 | 1250 | 800 | 630 | 500 | |
| Max Torque (N*M) | rated | 8 | 13 | 19 | 31 | 37 | 33 |
| Cont. | 11 | 16 | 25 | 40 | 45 | 46 | |
| int. | 15 | 23 | 35 | 57 | 70 | 88 | |
| peak | 21 | 33 | 51 | 64 | 82 | 100 | |
| Max speed (kw) | rated | 1.3 | 1.7 | 1.7 | 1.7 | 1.7 | 1.2 |
| Cont. | 1.8 | 2.4 | 2.4 | 2.4 | 2.2 | 1.8 | |
| int. | 2.6 | 3.2 | 3.2 | 3.2 | 3.2 | 3.2 | |
| Max pressure drop(MPa) | rated | 9 | 9 | 9 | 9 | 8.5 | 6 |
| Cont. | 10 | 10 | 10 | 10 | 9 | 7 | |
| int. | 14 | 14 | 14 | 14 | 14 | 14 | |
| peak | 20 | 20 | 20 | 16 | 16 | 16 | |
| Max flow(L/min) | rated | 14 | 18 | 18 | 18 | 20 | 20 |
| Cont. | 18 | 20 | 20 | 20 | 20 | 20 | |
| int. | 20 | 25 | 25 | 25 | 25 | 25 | |
| Weight(kg) | 1.9 | 2 | 2.1 | 2.2 | 2.3 | 2.4 | |
| Type | Max.inlet pressure | |
| BMM8-50 | Cont. | 17.5 |
| (Mpa) | Int. | 22.5 |
This OMM hydraulic motor is working high speed and low noise.
very suitable for hydraulic hoof trimming crush.
When machine work, hydraulic motor drives lifting belt and lifting the cow's two belly bands,
front legs, back legs and elevator. Then workers could trimming hoof.

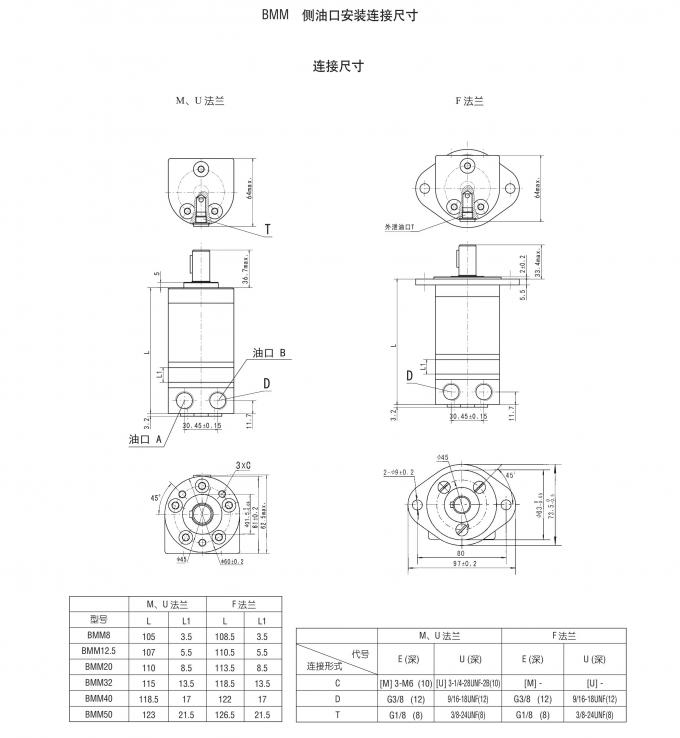

| M、U法兰 | F法兰 | |||
| 型号 | L | L1 | L | L1 |
| BMM8 | 105 | 3.5 | 108.5 | 3.5 |
| BMM12.5 | 107 | 5.5 | 110.5 | 5.5 |
| BMM20 | 110 | 8.5 | 113.5 | 8.5 |
| BMM32 | 115 | 13.5 | 118.5 | 13.5 |
| BMM40 | 118.5 | 17 | 122 | 17 |
| BMM50 | 123 | 21.5 | 126.5 | 21.5 |
| M、U法兰 | F法兰 | |||
| 连接形式 代号 | E (深) | U (深) | E (深) | U (深) |
| C | [M] 3-M6（10） | [U] 3-1/4-28UNF-29(10) | [M] - | [U] - |
| D | G3/8 （12） | 9/16-18UNF(12) | G3/8 （12） | 9/16-18UNF(12) |
| T | G1/8 （8） | 3/8-24UNF(8) | G1/8 （8） | 3/8-24UNF(8) |
