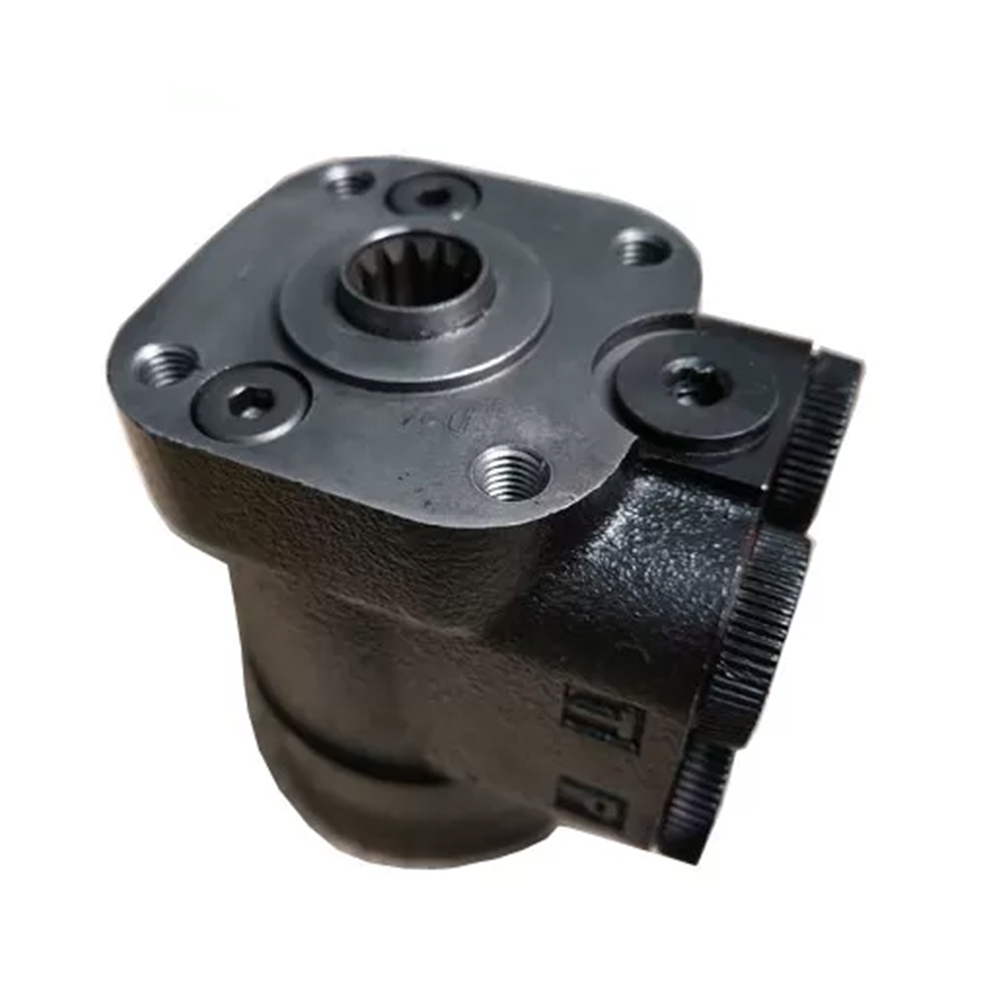

Hydraulic Steering Unit 101S
Xeriwell or Others
| Product Name: | Hydraulic Steering Unit | Model Number: | 101S OSPC HKUS |
|---|---|---|---|
| Warranty: | 12 Months | Pressure: | High Pressure |
| HS Code: | 8412291000 | Place Of Origin: | China |
| Highlight: | hydraulic steering control unit,hydraulic steering pump | ||
High Pressure Hydraulic Steering Unit 101S Open center non-reaction For / Claas/MTZ
Xeriwell 101Sseries hydraulic control unit is with relief valve ,suction valve, inlet check valve intergrated,and different valve can be assembled freely,compact ,more convenient ,fitting for European and American standards.
(101S-1/101S-2) series hydraulic control units' shape,internal structure, performance same as BPBS1,BPBS2, OSPC, M+S HKUS, Eaton 401-1,General Steering Components Steering units same as OSPM OSPB OSPC OSPF OSPR OSPD OSPQ OSPL
Open center hydrostatic steering system
Load sensing hydrostatic steering system
Characters:
101s ON/OR for hydraulic systems where oil is supplied by a fixed-displacement pump. The range is wide and flexible, characterised by: • Low steering torque, 0.5 Nm to 1.8 Nm in normal steering situations • Low noise level and wide control range • One or several built-in valve functions: pressure relief, shock, suction, and/or nonreturn in pump connection • Port threads as required, to DIN, ISO, SAE or JIS standards.
101s is available in versions “Open Center Reaction” or “Open Center Non Reaction” (OR or ON) and with displacements from 40 to 500 cm3 /rev. OSPC is also available in a “Closed Center Non Reaction” (CN) type. CN steering units are for constant-pressure systems with variable pump flow. In neutral position, the CN unit shuts off oil flow between pump and tank. CN units are available with displacements from 50 to 400 cm3 /rev.
Function of the incorporated valve:
Inlet safety valve: Limits maximum pressure drop across the PSU to protect the steering circuit.
Cylinder port shock valve: Protects hoses against pressure surge created by ground forces on the cylinder axle.
Anti- cavitation valve: Protects steering circuit against vacuum (cavitation) conditions.
Inlet check valve: Prevents oil from returning through the PSU when pressure on the cylinder
side is greater than the inlet side. It prevents steering wheel kick.
Internal check valve: Converts the PSU to a hand operated pump for limited manual steering.
| Parameters | Series 101S | ||||||||||
| Function code | 1,2,4 | 1,4 | |||||||||
| Displacement (mL/r) | 50 | 63 | 80 | 100 | 125 | 160 | 200 | 250 | 280 | 315 | 400 |
| Rated Flow (L/min) | 5 | 6 | 8 | 10 | 12.5 | 16 | 20 | 25 | 28 | 32 | 40 |
| Max.input pressure(Mpa) | 16 | ||||||||||
| Relief Valve Pressure Settings ( MPa) | 06,07,08,10,12,14,15,16 | ||||||||||
| Shock Valve Pressure Settings ( MPa) | 12,13,14,16,18,20,21,22 | ||||||||||
| Max.cont.back pressure | 2.5 | ||||||||||
| Weight(kg) | 5.75 | 5.81 | 5.89 | 5.96 | 6.1 | 6.3 | 6.5 | 6.73 | 6.91 | 7.1 | 7.5 |
| Dimension L (mm) | 130 | 132 | 134 | 137 | 140 | 145 | 150 | 156 | 161 | 166 | 176 |
Xeriwell Orbital Steering Valve 101s applications:
1. Construction Machinery,Agriculture Machinery,Heavy-Duty Equipment,Mining Equipment
2. Change , Eaton, M + S and other brands, the advantage is the price concessions, the quality is close.
3. Replacing tractors like , Claas, and other harvesters Orbital to OEM.
4. Replacing Delin, Crown, Toyota, Komatsu Forklift Steering Valve OEM
| 主要技术参数 Main Specification | |||||||||||
| Parameters | Type 101-****** | ||||||||||
| Function Code | 1,2,3 | 1,3 | |||||||||
| Displacement(mL/r) | 50 | 63 | 80 | 100 | 125 | 160 | 200 | 250 | 280 | 315 | 400 |
| Rated flow (L/min) | 5 | 6 | 8 | 10 | 12.5 | 16 | 20 | 25 | 28 | 31.5 | 40 |
| Max. input pressure (MPa) | 17.5 | ||||||||||
| Max. cont. back pressure (MPa) | 2.5 | ||||||||||
| Weight (kg) | 5.7 | 5.76 | 5.84 | 5.91 | 6.05 | 6.25 | 6.45 | 6.68 | 6.86 | 7.06 | 7.45 |
| Dimension L (mm) | 130 | 132 | 133 | 136 | 139 | 144 | 149 | 155 | 160 | 165 | 175 |
| Note:L is the maximum length dimension of product. This dimension on some products may 2mm or 4mm shorter. | |||||||||||
| 油口螺纹 Ports Threads | |||
| 代码 Code | P、T、A、B油口 Ports P,T,A,B | 连接螺纹C Column Mounting C | 连接螺纹V Valve Mounting V |
| A | M20×1.5 | M10 | M12 |
| B | M20×1.5 O-ring | ||
| C | M18×1.5 | ||
| D | M18×1.5 O-ring | ||
| E | G1/2 | M10×1 | |
| U | G1/2 O-ring | ||
| G | M22×1.5 | M12 | |
| Q | M22×1.5 O-ring | ||
| M | 3/4-16UNF O-ring | ||
| F | 3/8-16 UNC | 3/8-24 UNF | |
| I | M10 | M10 | |
| N | M10×1.25 | ||
| 注1：油口P、T、A、B的深度15 mm，连接螺纹C、V的深度16 mm。 Note 1:Ports P,T,A,B Depth:15 mm;Column Mounting C &V Depth:16 mm. 注2：其他油口连接方式协议确定代号。 | |||
