GPC4-40-B-6-F1-30-L
Xeriwell or Others
| Product Name: | High Efficiency Hydraulic Pump | Standard: | Sandard |
|---|---|---|---|
| Usage: | Construction Machinery | Input Power: | 67kw |
| Speed: | 2700r/min | ||
| Highlight: | high pressure gear pump,small gear pump | ||

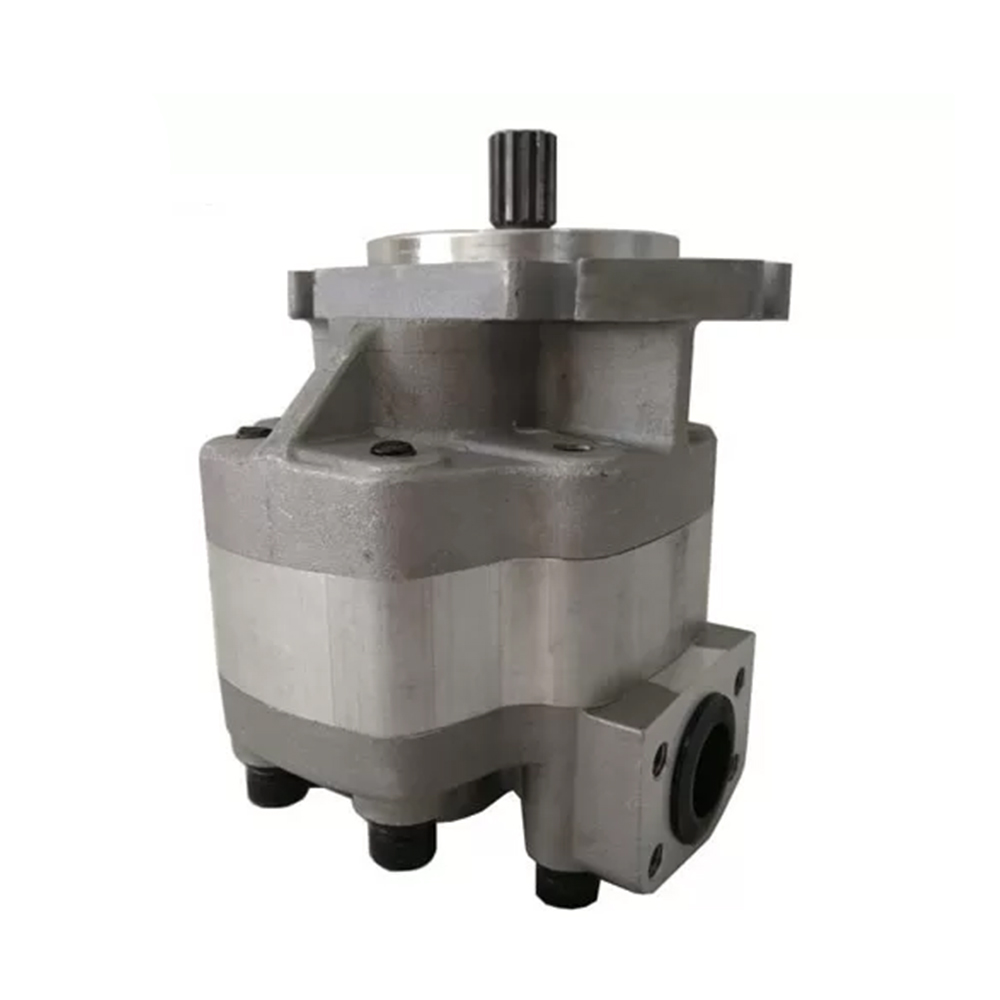

high pressure hydraulic gear pump GPC-4 Vickers series gear pump for rigs
GPC4 series of high-pressure gear pump is my company to introduce the US company Vickers high-pressure gear pump, and the internal structural improvements.
this type of gear pumps have the advantageous features of the axial flexible compensation and radial hydraulic balance. providing various mounting flanges,shafts ends and inlet&outlet oil connection with SAE and Chinese standards
Mainly used in cranes, dump trucks and other construction machinery.
GPC4 series of high-pressure gear pump, in addition to a single pump, but also can be multi-linked to meet the work needs of the host.
Specification and data
| model | nominal displacement(ml/r) | rated pressure(Mpa) | Nominal speed(r/min) | Min speed(r/min) | input power (at rated pressure&speed) | weight(kgs) |
| GPC4-20 | 21 | 25 | 3300 | 900 | 36.55 | 8.3 |
| GPC4-25 | 26.2 | 25 | 3300 | 900 | 45.6 | 8.6 |
| GPC4-32 | 32.8 | 25 | 3150 | 900 | 53.15 | 9 |
| GPC4-40 | 42 | 25 | 3000 | 900 | 64.81 | 9.4 |
| GPC4-50 | 52.5 | 23 | 2700 | 800 | 67.08 | 9.7 |
| GPC4-63 | 65.6 | 20 | 2500 | 700 | 67.49 | 10.2 |
| GPC4-80 | 78.7 | 18 | 2300 | 600 | 67.04 | 10.7 |

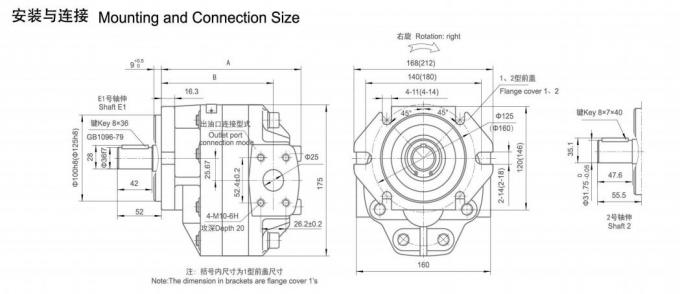

| 型号规格 Model | GPC4-20 | GPC4-25 | GPC4-32 | GPC4-40 | GPC4-50 | GPC4-63 | GPC4-80 |
| A | 156.3 | 160.3 | 165.3 | 172.3 | 180.3 | 190.3 | 200.3 |
| B | 119.3 | 123.3 | 128.3 | 135.3 | 143.3 | 153.3 | 163.3 |
Xeriwell Gear Pump Features:
1. Axial gap automatic compensation mechanism keeps high volumetric efficiency
2. Low noise and long service life
3. Application of high strength aluminum alloy materials, light weight, low installation labor intensity

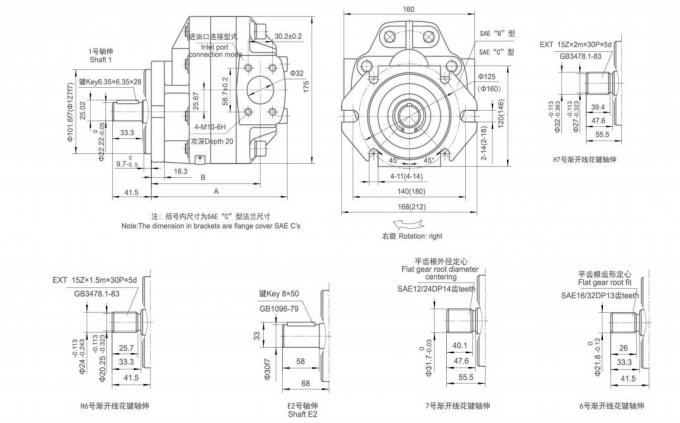

4. Input shaft types: key,rectangular spline,involute spline and woodruff
5. Connections types for the inlet and outlet ports: thread or flange etc.
Applications:
This series pumps also have the advantage of its simple structure, reliable performance, volumetric efficiency, shock resistence and long life service. And they are widely used in the tractors, construction machinery, sanitation trucks and other hydraulic systems.
Xeriwell Is an enterprise specializing in the production of BM series cycloid hydraulic motor, BZZ full hydraulic steering gear, hydraulic gear pump, FK combination valve block and other hydraulic components. The products are widely used in engineering machinery, mining machinery, metallurgical machinery, petroleum machinery, agricultural machinery, injection molding machinery, fishery machinery military engineering and other fields.
Our company has many sets of imported equipment and advanced production technology, has dozens of high-quality engineering and technical personnel, and equipped with its own research and development team, with strong technical force to ensure product quality. We have a complete set of product quality assurance system from employees, raw materials entering the factory, parts processing, equipment testing and product delivery. With high quality, friendly price and considerate service, the products are favored by users at home and abroad.
Xeriwell Hydraulic gear pump for any hydraulic system, our company uses high-end machine tools, excellence, the most humane service, manufacture and service the world, with good products and services to serve the world, welcome advice.
