| Products Name: | Orbit Hydraulic Motor | Flange: | 2 Bolts Diamond |
|---|---|---|---|
| Shaft: | 25mm, 25.4mm | Displacement: | 50cc - 395cc |
| Warranty: | 12-18 Months | Oil Port:: | G1/2" |
| Highlight: | slow speed high torque motor,lsht hydraulic motor | ||

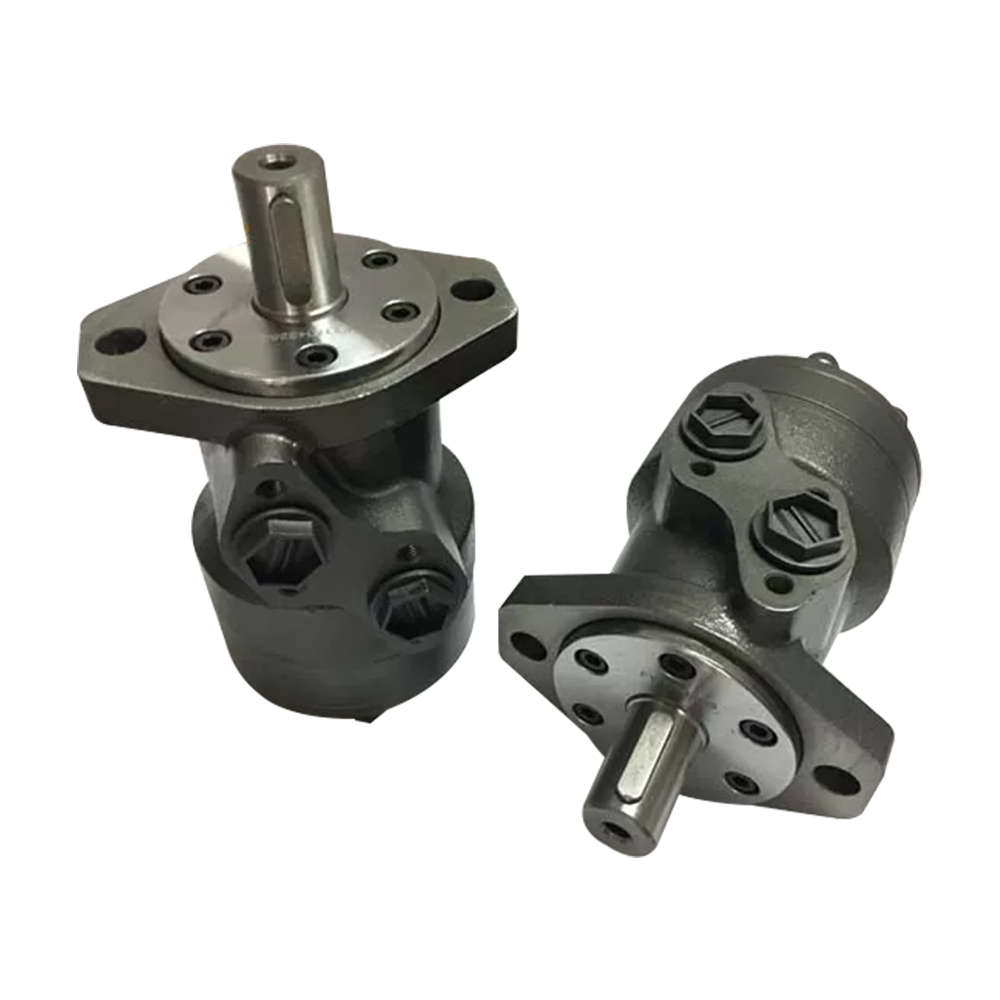

151-5191 Engine Shaft Ø25 - Low Speed High Torque Orbit Hydraulic Motors
Hydraulic orbit Motor is one type of high torque low speed hydraulic motors, with high efficiency and long life.
Xeriwell BM series motor has a wide speed range, high starting torque and rotating stable at high speed compact and light. It can be connected to working machine directly, adapted to all kinds of low speed heavy load facilities. 100% interchangable with the international brand, like EATON, .
Features:
* Compact design of spool and gear set , which provide mini volume, high power and low weight..
* Credible design for shaft seal , which can bear high pressure.
* Direction of shaft rotation and speed can be controlled easily and smoothly.
Specifications:
| Technical data for BMR Hydraulic Orbital Motors |
| Type | BMR BMRS 36 | BMR BMRS 50 | BMR BMRS 80 | BMR BMRS 100 | BMR BMRS 125 | BMR BMRS 160 | BMR BMRS 200 | BMR BMRS 250 | BMR BMRS 315 | BMR BMRS 375 | |
| Geometric displacement (cm3 /rev.) | 36 | 51.7 | 81.5 | 102 | 127.2 | 157.2 | 194.5 | 253.3 | 317.5 | 381.4 | |
| Max. speed (rpm) | cont. | 1085 | 960 | 750 | 600 | 475 | 378 | 310 | 240 | 190 | 155 |
| int. | 1220 | 1150 | 940 | 750 | 600 | 475 | 385 | 300 | 240 | 190 | |
| Max. torque (N·m) | cont. | 72 | 100 | 195 | 240 | 300 | 360 | 360 | 390 | 390 | 365 |
| int. | 83 | 126 | 220 | 280 | 340 | 430 | 440 | 490 | 535 | 495 | |
| peak | 105 | 165 | 270 | 320 | 370 | 460 | 560 | 640 | 650 | 680 | |
| Max. output (kW) | cont. | 8.5 | 9.5 | 12.5 | 13 | 12.5 | 12.5 | 10 | 7 | 6 | 5 |
| int. | 9.8 | 11.2 | 15 | 15 | 14.5 | 14 | 13 | 9.5 | 9 | 8 | |
| Max. pressure drop (MPa) | cont. | 14 | 14 | 17.5 | 17.5 | 17.5 | 16.5 | 13 | 11 | 9 | 7 |
| int. | 16.5 | 17.5 | 20 | 20 | 20 | 20 | 17.5 | 15 | 13 | 10 | |
| peak | 22.5 | 22.5 | 22.5 | 22.5 | 22.5 | 22.5 | 22.5 | 20 | 17.5 | 15 | |
| Max. flow (L/min) | cont. | 40 | 50 | 60 | 60 | 60 | 60 | 60 | 60 | 60 | 60 |
| int. | 45 | 60 | 75 | 75 | 75 | 75 | 75 | 75 | 75 | 75 | |
| Weight (kg) | 6.5 | 6.7 | 6.9 | 7 | 7.3 | 7.6 | 8 | 8.5 | 9 | 9.5 | |
Applications:
Xeriwell hydraulic motors are widely applied in agriculture machinery, fishing machinery, plastic industry, mining, and construction machinery.
* An agricultural use: all combine harvesters, seeders, rotary tiller, mower, sprayer, feed mixers, ground drilling machine.
* fishing with: hauling machine.
* light industry: winding machines, textile machines, printing presses, operating with a washing machine.
* construction industry: rollers, cement mixers, cleaning cars.
* Machines like: Sprinkler, Mini Excavator, Driven Scraper Screw, Baler, Hydraulic Winch, Fishing Boat, Plastic Injecton Mold Machine, Cleaner, Grass Cutter, Convevors, Slews, Sweeper Drives, Auger Cutters, Mowers, Chippers, Drilling Machine, Municipal Machinery, and Agriculture, Forestry, Construction Equipments etc.

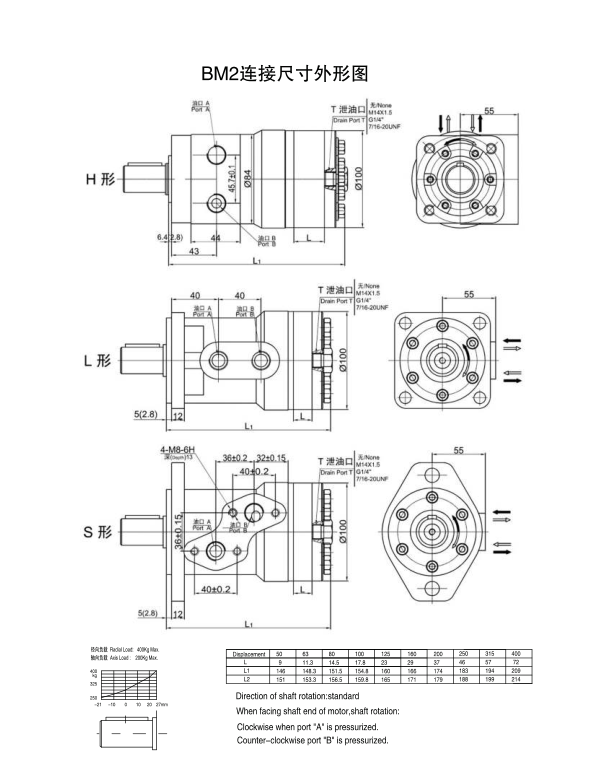

| Displacement | 50 | 45 | 80 | 100 | 125 | 150 | 200 | 250 | 315 | 400 |
| L | 9 | 11.3 | 14.5 | 17.5 | 23 | 29 | 37 | 46 | 57 | 72 |
| L1 | 146 | 148.5 | 151.5 | 154.5 | 160 | 165 | 174 | 183 | 194 | 209 |
| L2 | 151 | 153.5 | 156.5 | 159.5 | 165 | 171 | 179 | 188 | 199 | 214 |
| Direction of shaft rotation:standard When facing shaft end of motor,shaft rotation: Clockwise when port "A" is pressurized. Counter-clockwise port "B" is pressurized. | ||||||||||
