| Quantity: | |
|---|---|
101S
Xeriwell or Others

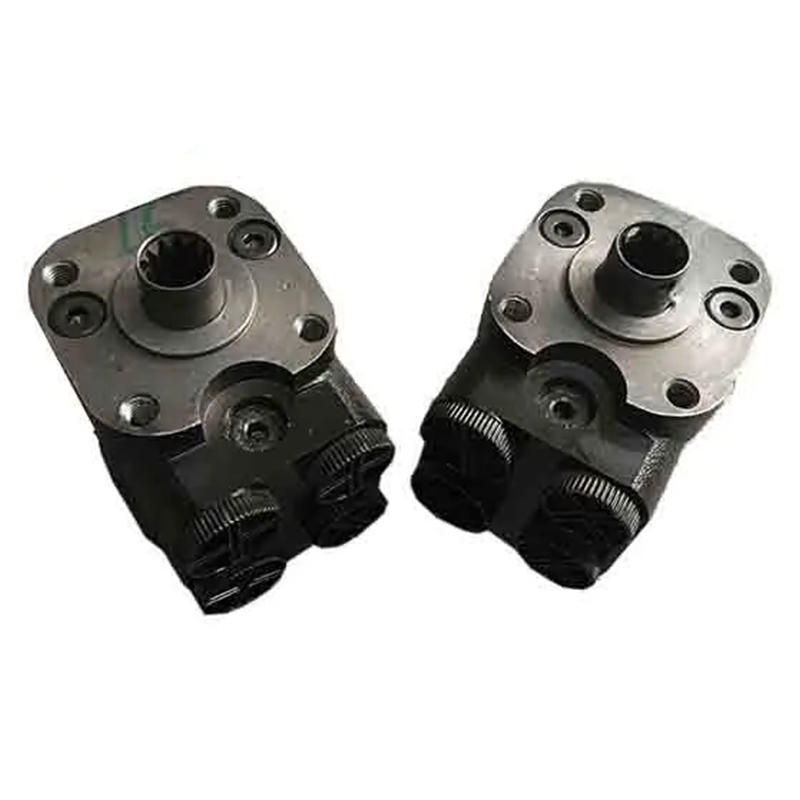

| Product: | Hydraulic Steering Unit | Brand: | Xeriwell |
|---|---|---|---|
| Displacement: | 120cc (50cc, 80cc, 100cc, 125cc, 160cc, 200cc, 250cc, 315cc, 400cc, 500cc Can Provide) | CN: | LS (Load Sensing) |
| Valves: | 5 Valves Built Inside | Feature: | Replace Char-lynn 211-1003 |
| Highlight: | power steering valve,power steering control unit | ||
Steering OEM
We provide steering unit for tractor , Fiat, Ford, , Massey Furguson, , MTZ, and many more.
This steering is an OEM part for tractors.
function open center
displacement 160cc
shock valve pressure 160mpa
safety alve pressure 220mpa
| Xeriwell | OEM | |
| 101s 100 CN | AL41291 AL55308 OSPC-160CN HKUS160/7/3 | 1550 (50 Series), 1640 (40 Series), 1750 (50 Series), 1850 (50 Series) 1950 (50 Series), 2040 (40 Series), 2140 (40 Series), 2250 (50 Series), 2450 (50 Series), 2650 (50 Series), 2850 (50 Series), 3040 (40 Series), 3050 (50 Series), 3140 (40 Series), 3150 (50 Series), 3340 (40 Series), 3350 (50 Series) |
we also provide the below:
| Xeriwell | Massey Ferguson OEM | Massey Ferguson |
| 101s 125 ON | K207419 4WD 125cc-3/4” HKUS125/ON | 240 (200 Series), 253 (200 Series) 261 (200 Series), 265 (200 Series) 275 (200 Series), 290 (200 Series) 298 (200 Series), 340 (300 Series) 342 (300 Series), 350 (300 Series) 352 (300 Series), 355 (300 Series) 360 (300 Series), 362 (300 Series) 365 (300 Series), 372 (300 Series) |
| Xeriwell | Fiat OEM | Fiat |
| 101s 100 ON | (5140383) / 5143319/ 2WD HKUS100/ON OSPC100/ON | 100-90 (90 Series), 110-90 (90 Series) 115-90 (90 Series), 130-90 (90 Series) 140-90 (90 Series), 160-90 (90 Series) 180-90 (90 Series), 55-90 (90 Series) 60-90 (90 Series), 70-90 (90 Series) 80-90 (90 Series), 85-90 (90 Series) |
We also make analogue orbitrol of M+S, , Eaton.
Excellent performance compatible with , Eaton, M+S, also 100% replace OEM parts you may find on original machines.

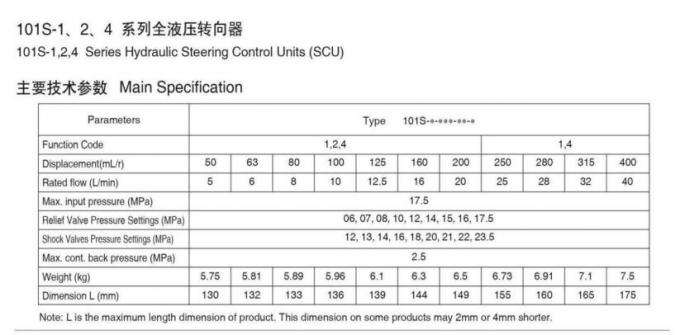

Technical data sheet:
| Parameters | Series 101S-*-***-**-* | ||||||||||
| Function code | 1,2,4 | 1,4 | |||||||||
| Displacement (mL/r) | 50 | 63 | 80 | 100 | 125 | 160 | 200 | 250 | 280 | 315 | 400 |
| Rated Flow (L/min) | 5 | 6 | 8 | 10 | 12.5 | 16 | 20 | 25 | 28 | 32 | 40 |
| Max.input pressure(Mpa) | 16 | ||||||||||
| Relief Valve Pressure Settings ( MPa) | 06,07,08,10,12,14,15,16 | ||||||||||
| Shock Valve Pressure Settings ( MPa) | 12,13,14,16,18,20,21,22 | ||||||||||
| Max.cont.back pressure | 2.5 | ||||||||||
| Weight(kg) | 5.75 | 5.81 | 5.89 | 5.96 | 6.1 | 6.3 | 6.5 | 6.73 | 6.91 | 7.1 | 7.5 |
| Dimension L (mm) | 130 | 132 | 134 | 137 | 140 | 145 | 150 | 156 | 161 | 166 | 176 |
101S series orbital steering valve is with relief valve ,suction valve, inlet check valve intergrated,and different valve can be assembled freely, compact, more convenient, fitting for European and American standards. Widely applied to low speed and heavy vehicles , construction machinery, tractor, forklift, digger, loader, helm control.
