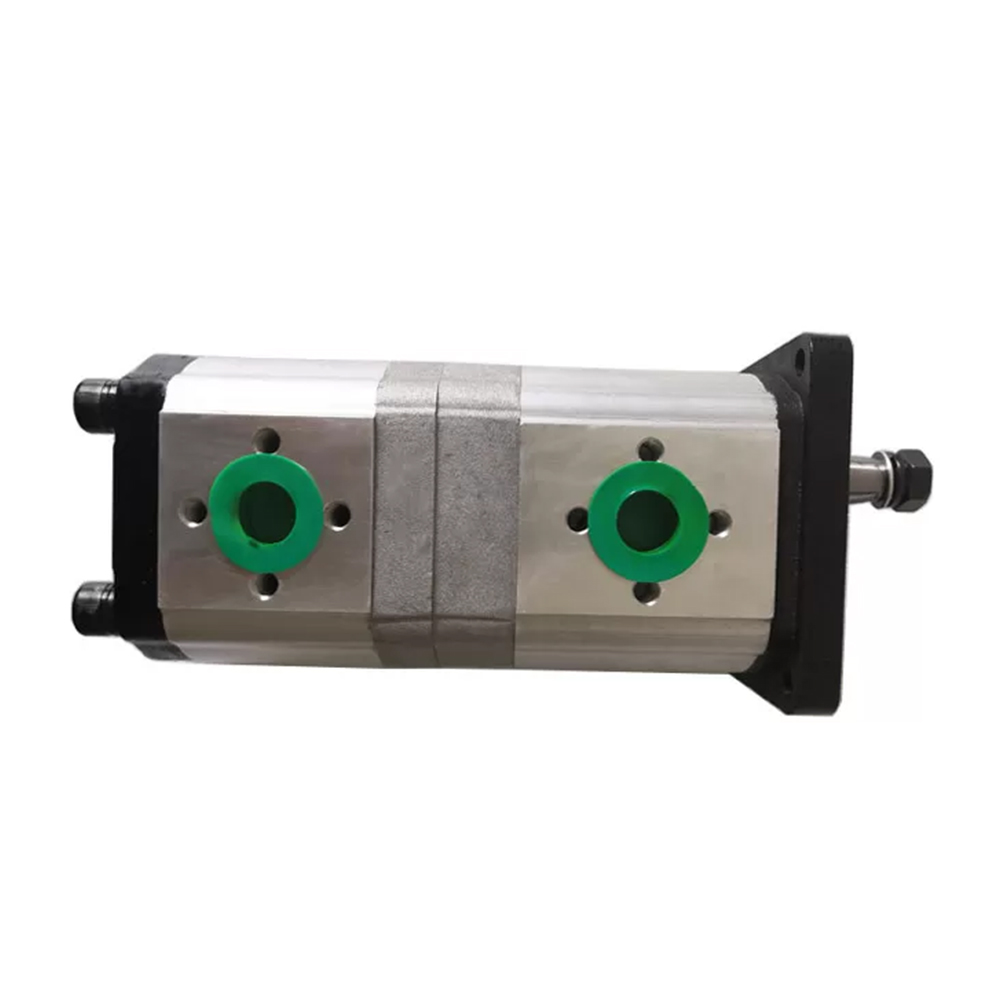

Hydraulic Gear Pump
Xeriwell or Others
| Product Name: | High Efficiency Hydraulic Pump | Pressure Level: | 16/20 MPa |
|---|---|---|---|
| Displacement (ml/r): | 6,10,14,16,20 | Applications: | Hydraulic Power,construction Machines,plastic Machines |
| Direction Of Rotation: | Left , Right | ||
| Highlight: | high pressure gear pump,small gear pump | ||
High pressure caproni group 20 gear pump double gear pump 20A(C)11X66 20A(C)19X067 forklift
The hydraulic gear pump produced by Xeriwell is widely used in various kinds of machinery, such as tractors, excavators, forklifts and other projects as well as agricultural machinery, and is professionally designed for well-known brands of imported machinery, such as Ford, Kubota, Lovol and others.
REGULAR MODEL NO.
| 20A4,5X066 | 20A6,3X066 | 20A8,2X066 | 20A10X066 | 20A11,3X066 | 20A12X066 |
| 20A14X0 66 | 20A15X0 66 | 20A16X0 66 | 20A19X0 66 | 20A22X066 | 20A25X066 |
| 20A28X0 66 | 20A32X0 66 | 20A36X0 66 | |||
| 20C4,5X0 66 | 20C6,3X0 66 | 20C8,2X0 66 | 20C10X0 66 | 20C11,3X066 | 20C12X066 |
| 20C14X0 66 | 20C15X0 66 | 20C16X0 66 | 20C19X066 | 20C22X066 | 20C25X066 |
| 20C28X0 66 | 20C32X0 66 | 20C36X0 66 |
| 20A4,5X067 | 20A6,3X067 | 20A8,2X067 | 20A10X067 | 20A11,3X067 | 20A12X067 |
| 20A14X0 67 | 20A15X0 67 | 20A16X0 67 | 20A19X0 67 | 20A22X067 | 20A25X067 |
| 20A28X0 67 | 20A32X0 67 | 20A36X0 67 | |||
| 20C4.5X0 67 | 20C6,3X0 67 | 20C8,2X0 67 | 20C10X0 67 | 20C11,3X067 | 20C12X067 |
| 20C14X0 67 | 20C15X0 67 | 20C16X0 67 | 20C19X067 | 20C22X067 | 20C25X067 |
| 20C28X0 67 | 20C32X0 67 | 20C36X0 67 |

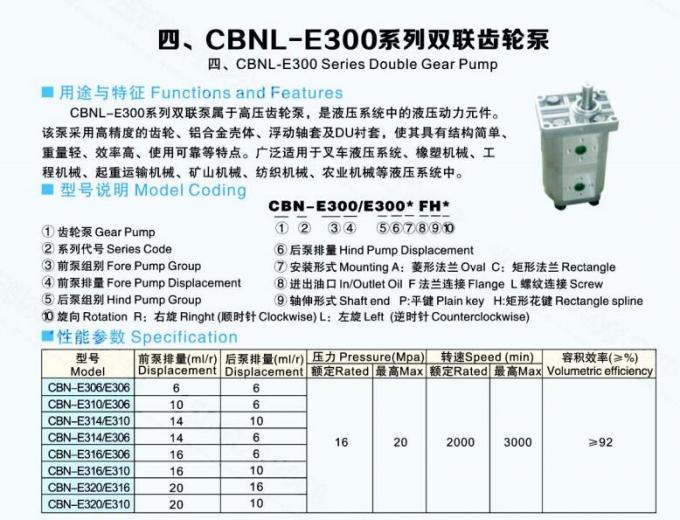

| ■型号说明 Model Coding | |
| CBN-E300/E300* FH* | |
| ①齿轮泵 Gear Pump | ⑥后泵排量 Hind Pump Displacement |
| ②系列代号 Series Code | ⑦安装形式 Mounting A：菱形法兰 Oval C：矩形法兰 Rectangle |
| ③前泵组别 Fore Pump Group | ⑧进出油口 In/Outlet Oil F 法兰连接 Flange L 螺纹连接 Screw |
| ④前泵排量 Fore Pump Displacement | ⑨轴伸形式 Shaft end P:平键 Plain key H:矩形花键 Rectangle spline |
| ⑤后泵组别 Hind Pump Group | ⑩旋向 Rotation R：右旋 Ringht (顺时针 Clockwise) L：左旋 Left (逆时针 Counterclockwise) |
| ■性能参数 Specification | |||||||
| 型号 Model | 前泵排量(ml/r) Displacement | 后泵排量(ml/r) Displacement | 压力 Pressure(Mpa) | 转速Speed (min) | 容积效率(≥%) Volumetric efficiency | ||
| 额定Rated | 最高Max | 额定Rated | 最高Max | ||||
| CBN-E306/E306 | 6 | 6 | 16 | 20 | 2000 | 3000 | ≥92 |
| CBN-E310/E306 | 10 | 6 | |||||
| CBN-E314/E310 | 14 | 10 | |||||
| CBN-E314/E306 | 14 | 6 | |||||
| CBN-E316/E306 | 16 | 6 | |||||
| CBN-E316/E310 | 16 | 10 | |||||
| CBN-E320/E316 | 20 | 16 | |||||
| CBN-E320/E310 | 20 | 10 | |||||
other type application
| Xeriwell Hydraulic Orbital Steering Units and Hydrauic Gear Pumps |
| CLAAS |
| DEUTZ |
| FIAT |
| Lamborghini |
| SAME |
| Landini |
| Massey Ferguson |
| Kubota |
| FENDT |
| VALTRA |
| MTZ |
Xeriwell Gear Pump Features:
1. Axial gap automatic compensation mechanism keeps high volumetric efficiency
2. Low noise and long service life
3. Application of high strength aluminum alloy materials, light weight, low installation labor intensity
4. Input shaft types: key,rectangular spline,involute spline and woodruff
5. Connections types for the inlet and outlet ports: thread or flange etc.
Applications:
This series pumps also have the advantage of its simple structure, reliable performance, volumetric efficiency, shock resistence and long life service. And they are widely used in the tractors, construction machinery, sanitation trucks and other hydraulic systems.
Xeriwell Is an enterprise specializing in the production of BM series cycloid hydraulic motor, BZZ full hydraulic steering gear, hydraulic gear pump, FK combination valve block and other hydraulic components. The products are widely used in engineering machinery, mining machinery, metallurgical machinery, petroleum machinery, agricultural machinery, injection molding machinery, fishery machinery military engineering and other fields.
Our company has many sets of imported equipment and advanced production technology, has dozens of high-quality engineering and technical personnel, and equipped with its own research and development team, with strong technical force to ensure product quality. We have a complete set of product quality assurance system from employees, raw materials entering the factory, parts processing, equipment testing and product delivery. With high quality, friendly price and considerate service, the products are favored by users at home and abroad.
Xeriwell Hydraulic gear pump for any hydraulic system, our company uses high-end machine tools, excellence, the most humane service, manufacture and service the world, with good products and services to serve the world, welcome advice.
