CBT-E3
Xeriwell or Others
| Product: | Cast Iron Gear Pump | Series: | CBT |
|---|---|---|---|
| Displacement: | 04ml/r, 06ml/r, 08ml/r, 10ml/r, 12ml/r, 14ml/r, 16ml/r, 20ml/r, 25ml/r | Pressure: | 16MPa |
| Port Connection: | Flange Connection & Metric Thread Connection | Rotation: | L & R |
| Highlight: | industrial hydraulic pump,small gear pump | ||
Hydraulic Gear pump CBT-E3 For Agricultural Tractor and Harvester
Xeriwell design & make huge range of gear pumps with many options.
CBT-E3******series gear pumps are external pumps with axial compensation and radial balancing. They are widely applied in hydraulic system and Agricultural & Tractors and Engineering Trucks.
Displacement range:
04ml, 06ml, 08ml, 10ml, 12ml, 14ml, 16ml, 20ml, 25ml
pressure 16 MPa (160 bar)
CBT-E3 single hydraulic gear pump
High strength aluminium alloy shell
High perforance,low noise and long service life
Input shaft types: key,rectangular,involute spline,SAE involute spline
Connection types for oil inlet and outlet: flange, thread
Axial interval self compensation keeps the pump work at high volumetric efficiency
High working pressure and wide range of speed
It still remains high volumetric efficiency even when 400rpm
Widely used in the hydraulic system of road machinery, small automobile, forklift, tractor, metallurgical machinery,petroleum machinery, engineering machinery and agricultural machinery etc.
Very competitive price
1 year of warranty
Short delivery time
Applications
We design & make huge range of gear pumps with many option.
Group 1, group 2 and group 3 gear pumps, single & multiple SAE A and SAE B gear pumps, single and tandem.
Used on tractor of Belarus, , David Brown, Deutz, Fendt, Fiat, Ford, , Lamborgini, Massey Ferguson, , Same, etc.
We make very nice quality in shor time, and with good pricing.
replace Caproni, Casappa, Parker, Rexroth, Cat, Komatus, , , ......

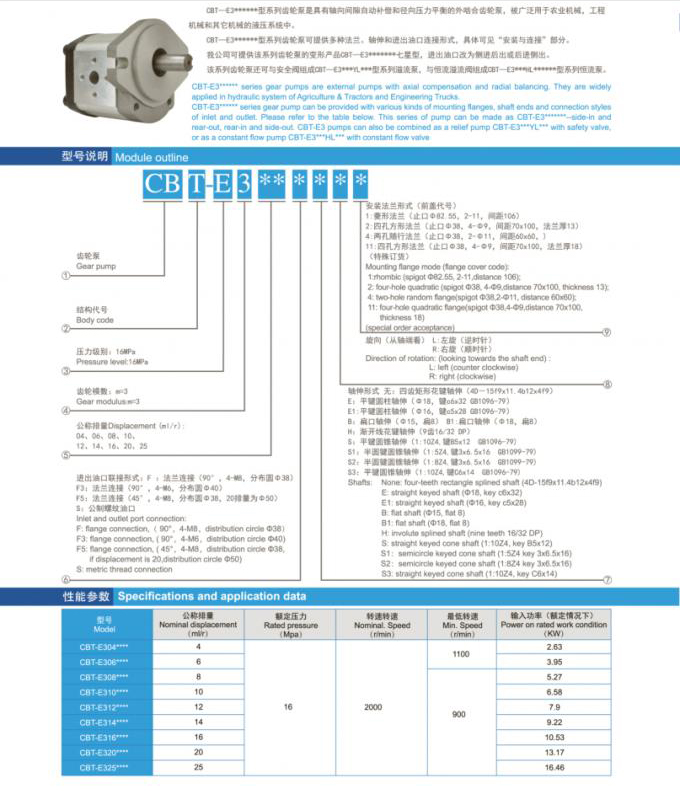

| 1 | Gear Pump |
| 2 | Body Code |
| 3 | Pressure:16MPa |
| 4 | Module of Gear: m=3 |
| 5 | Norminal Displacement (ml/r):04,06,08,10,12,14,16,18,20,25 |
| 6 | 3.port connection: F: flange connection (90°, 4-M8, distribution circleφ38) F3: flange connection(90°, 4-M6, distribution circleφ40) , F5: flange connection (45°, 4-M8, distribution circleφ38) , If displacement is 20ml/r, the distrbution circle is φ50) S: metric thread connection (only for 2#front cover) |
| 7 | 3.Shaft ends: None: four-teeth rectangle splined shaft key (4D-15f9x11.4b12x4f9) E1: straight keyed shaft (Φ 16, C5x28) B: flat shaft (Φ 15, flat 8) B1: flat shaft (Φ 18, flat 8) S3: straight keyed cone (1:10Z4, key B6x14) |
| 8 | Rotation (looking from the shaft end): L: Left R: Right |
| 9 | 3.Mounting flange type (front cover code): 1:rhombic (spigot Φ82.55, 2-Φ11,distance 106); 2: four-hole quadratic (spigot Φ38, 4-Φ9,distance 70x100, thick 13); 4: two-hole random (spigot Φ38,2-Φ11, distance 60x60); 11: four-hole quadratic (spigot Φ38,4-Φ9,distance 70x100, thick 18) (special order acceptance) |
