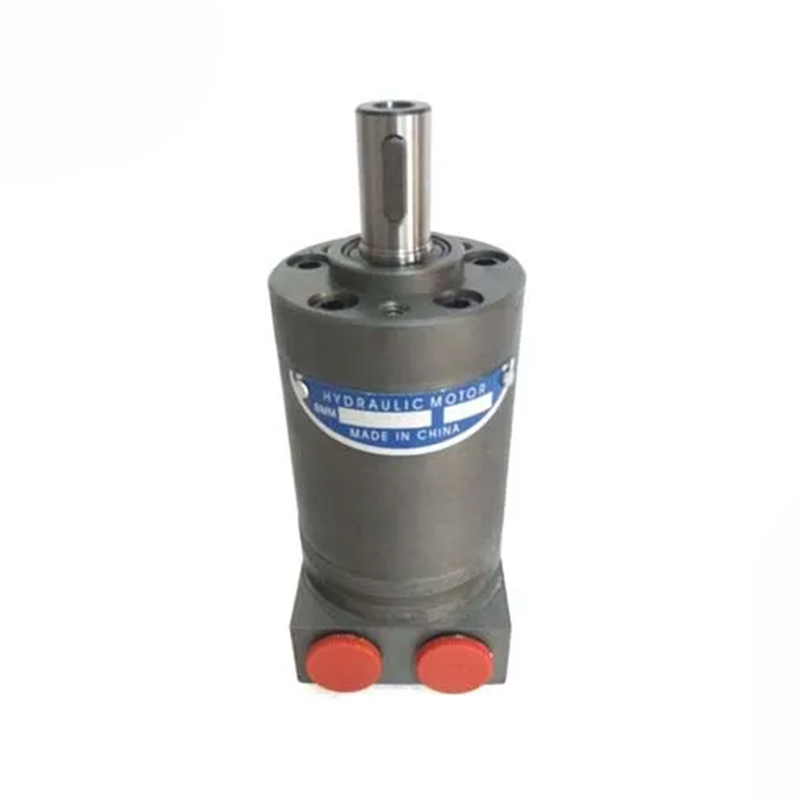

Hydraulic Motor BMM
Xeriwell or Others
| Product Name: | Hydraulic Motors | Model Number: | BMM |
|---|---|---|---|
| Place Of Origin: | China | Material: | CAST IRON |
| Color: | No Paint/blue/black | Internal Structure: | Gerolor Gear Set |
| Highlight: | low speed gear motor,high speed gear motor | ||
Hydraulic Gear Motor BMM Incorporates The Latest Advances For Smooth Performance, Efficiency And Durability
1) Intermittent operation: the permissible values may occur for max. 10% of every minute.
2) Peak load: the permissible values may occur for max. 1% of every minute.
3) Operation by lower speeds may be slightly less smooth.
Specification :
| Xeriwell | BMM |
| M+S | MM |
| EATON | J Series |
| OMM |
| Type | BMM8 | BMM12 | BMM20 | BMM32 | BMM40 | BMM50 | |
| displacement | 8.2 | 12.9 | 19.9 | 31.6 | 39.8 | 50.3 | |
| Max speed(rpm) | rated | 1537 | 1256 | 814 | 513 | 452 | 358 |
| Cont. | 1950 | 1550 | 1000 | 630 | 500 | 400 | |
| int. | 2450 | 1940 | 1250 | 800 | 630 | 500 | |
| Max Torque (N*M) | rated | 8 | 13 | 19 | 31 | 37 | 33 |
| Cont. | 11 | 16 | 25 | 40 | 45 | 46 | |
| int. | 15 | 23 | 35 | 57 | 70 | 88 | |
| peak | 21 | 33 | 51 | 64 | 82 | 100 | |
| Max speed (kw) | rated | 1.3 | 1.7 | 1.7 | 1.7 | 1.7 | 1.2 |
| Cont. | 1.8 | 2.4 | 2.4 | 2.4 | 2.2 | 1.8 | |
| int. | 2.6 | 3.2 | 3.2 | 3.2 | 3.2 | 3.2 | |
| Max pressure drop(MPa) | rated | 9 | 9 | 9 | 9 | 8.5 | 6 |
| Cont. | 10 | 10 | 10 | 10 | 9 | 7 | |
| int. | 14 | 14 | 14 | 14 | 14 | 14 | |
| peak | 20 | 20 | 20 | 16 | 16 | 16 | |
| Max flow(L/min) | rated | 14 | 18 | 18 | 18 | 20 | 20 |
| Cont. | 18 | 20 | 20 | 20 | 20 | 20 | |
| int. | 20 | 25 | 25 | 25 | 25 | 25 | |
| Weight(kg) | 1.9 | 2 | 2.1 | 2.2 | 2.3 | 2.4 | |
Model - Disc valve, roll-gerotor;
Flange and wheel mount;
Short motor;
Tacho connection;
Speed sensor connection;
Side and rear ports;
Shafts - straight, splined and tapered;
Metric and BSPP ports;
Other special features.
Applications:
Xeriwell Hydraulic Motors BMM Series used for the following field:
1. Brush cutters
2. Mower
3. Forestry equipment
4. Ship Cleaning Underwater
5. Plastic injection moulding
