| Quantity: | |
|---|---|
BMP,BMR Series
Xeriwell or Others
| Features: | High Pressure Oil Seals | Product Name: | Hydraulic Winch Motor BMR |
|---|---|---|---|
| Brand Name: | Xeriwell | Model Number: | BMR125 , BMR160 |
| Displacement: | 50cc - 500cc | Application: | Hydraulic Winches |
| Highlight: | high power hydraulic motor,two speed hydraulic motor | ||

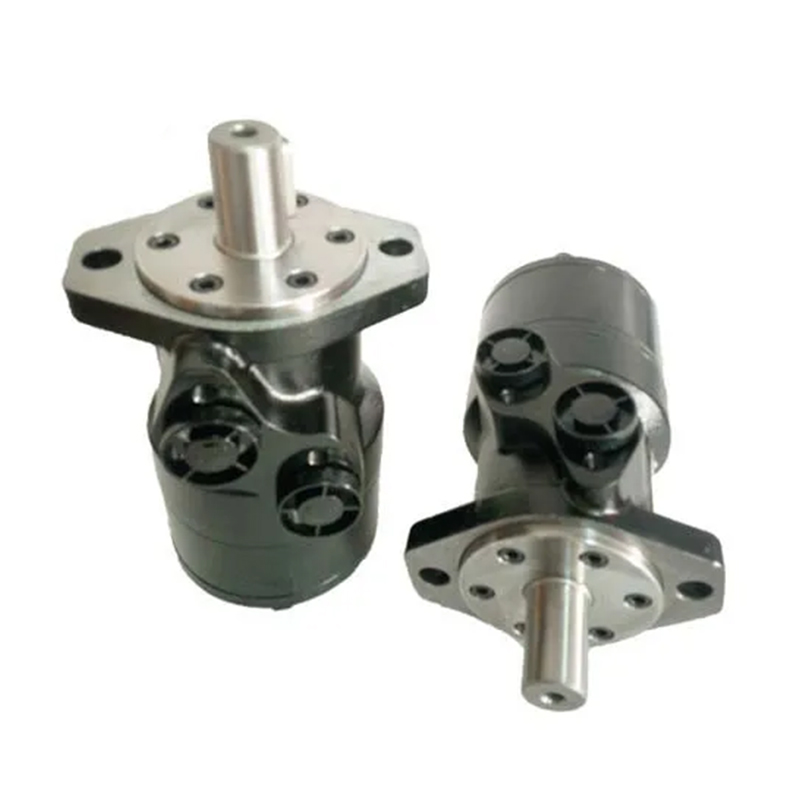

Hydraulic Winch Motor BMR / OMR For Truck Hydraulic Winches With Two Speed Motor
1. Characteristic Features
1. BMR series hydraulic motors adapt the advanced gerotor gear set design with shaft distribution flow, which can automatically compensate in operating with high pressure provide reliable and smooth operation, high efficiency and long service life.
2. BMR hydraulic motors can well replace OMR series motors from , JS series motors from EATON and WR series motors from WHITE.
3. Advanced manufacturing devices for the gerotor gear set, which use low pressure of start-up provide smooth, reliable operation and high efficiency.
4. Shaft seal can bear high pressure of back and the motor can be used in parallel or in series.
5. Special design in the driver-linker and prolong operating life
6. Special design for distribution system which can meet the requirement of low noise of unit.
2. Specification
| Type | BMR BMRS 36 | BMR BMRS 50 | BMR BMRS 80 | BMR BMRS 100 | BMR BMRS 125 | BMR BMRS 160 | BMR BMRS 200 | BMR BMRS 250 | BMR BMRS 315 | BMR BMRS 375 | |
| Geometric displacement (cm3 /rev.) | 36 | 51.7 | 81.5 | 102 | 127.2 | 157.2 | 194.5 | 253.3 | 317.5 | 381.4 | |
| Max. speed (rpm) | cont. | 1085 | 960 | 750 | 600 | 475 | 378 | 310 | 240 | 190 | 155 |
| int. | 1220 | 1150 | 940 | 750 | 600 | 475 | 385 | 300 | 240 | 190 | |
| Max. torque (N·m) | cont. | 72 | 100 | 195 | 240 | 300 | 360 | 360 | 390 | 390 | 365 |
| int. | 83 | 126 | 220 | 280 | 340 | 430 | 440 | 490 | 535 | 495 | |
| peak | 105 | 165 | 270 | 320 | 370 | 460 | 560 | 640 | 650 | 680 | |
| Max. output (kW) | cont. | 8.5 | 9.5 | 12.5 | 13 | 12.5 | 12.5 | 10 | 7 | 6 | 5 |
| int. | 9.8 | 11.2 | 15 | 15 | 14.5 | 14 | 13 | 9.5 | 9 | 8 | |
| Max. pressure drop (MPa) | cont. | 14 | 14 | 17.5 | 17.5 | 17.5 | 16.5 | 13 | 11 | 9 | 7 |
| int. | 16.5 | 17.5 | 20 | 20 | 20 | 20 | 17.5 | 15 | 13 | 10 | |
| peak | 22.5 | 22.5 | 22.5 | 22.5 | 22.5 | 22.5 | 22.5 | 20 | 17.5 | 15 | |
| Max. flow (L/min) | cont. | 40 | 50 | 60 | 60 | 60 | 60 | 60 | 60 | 60 | 60 |
| int. | 45 | 60 | 75 | 75 | 75 | 75 | 75 | 75 | 75 | 75 | |
| Weight (kg) | 6.5 | 6.7 | 6.9 | 7 | 7.3 | 7.6 | 8 | 8.5 | 9 | 9.5 | |
3. Application
BMR Hydraulic motors used for hydraulic winches.
1. Warn Series 15 Hydraulic Industrial Winch 65931
2. Hydraulic Winch 75-50085C with 2 Speed Motor
3. DK2 Hydraulic Winch - 10,000lb NH Series
4. Runva 10HX Hydraulic Winch 10,000lbs
5. Fishing Hydraulic Winch
