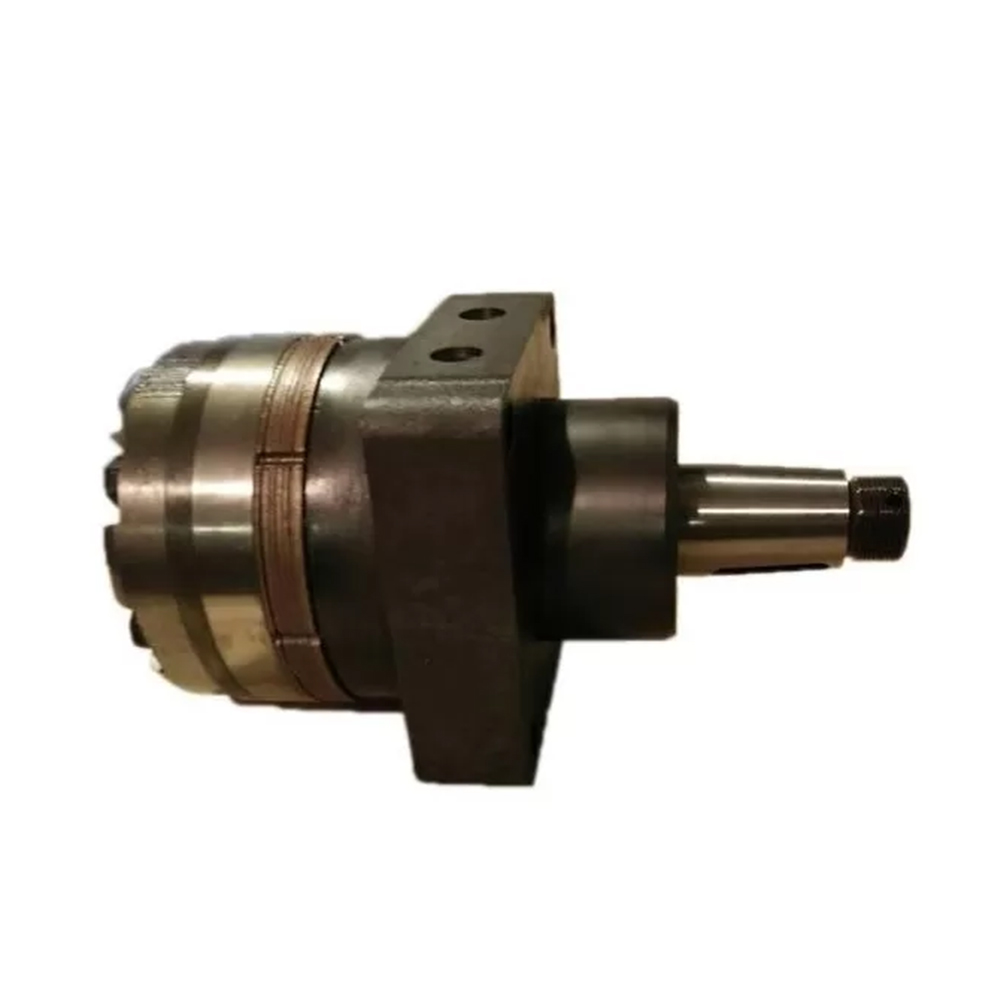

Hydraulic Wheel Motor BMRW
Xeriwell or Others
| Product Name: | Hydraulic Orbital Motors | Speed.Range(cont.)(r/min): | 10-475 |
|---|---|---|---|
| Displacement: | 50,80,100,125,160,200,250,315,400 | Applications: | Wheel Loader, Wheel Crane,Fairway Mower Etc. |
| Max.Output.Power(cont.)(Kw): | 32 | Replace: | Fairway Mower OEM ,Parker Motor, Eaton Motor Etc. |
| Highlight: | Shaf Hydraulic Wheel Drive Units | ||
Hydraulic Wheel Motor BMRW Replace:Fairway Mower OEM ,Parker Motor, Eaton Motor etc.
Xeriwell High Torque BMER-300-MDG2R Replaces American Parker Conical Cycloidal Hydraulic Oil Motor
Features:
(1) Low-friction and long life advantages
(2) Compact size, high efficiency
(3)Shaft seal can bear high pressure of back and the motor can be used in parallel or series
(4) Geroler and drive use the SMT series motors parameter, prolong operating life.
(5) Internal check valves, Escort seal
(6) This motor has a rugged housing with an extra large capacity side load bearing
Specification:
Model: BMER1-200-WS-T4-S
Disp. 11.96 cu.in./rev.
Pressure:
2973 PSI(Cont.)
3481 PSI(Int.)
Torque
4691 in-lb. (Cont.)
6310 in-lb. (Int.)
Speed
330 PRM (Cont.)
425 RPM (Int.)
Flow
18.5 GPM (Cont.)
22.4 GPM (Int.)
Rotation Reversible
Mount 4 Bolt Wheel
5.812 bolt circle, 3-1/4" pilot dia
Shaft 1-1/4" tapered*4.21"
shaft w/5/16" key and threaded end
Ports SAE 10
Size 4.94"*5.25"*5.45"
Shpg. 30lbs.
| YPE | BMSW-315 | BMSW-400 | BMSW-500 | BMSW-630 | BMSW-800 | BMSW-985 | |
| Displacement(ml/r) | 314.9 | 399.7 | 496.6 | 617.8 | 787.4 | 969.1 | |
Max.Pressure.Drop(Mpa) | cont. | 20 | 20 | 20 | 18 | 16 | 14 |
| int. | 24 | 24 | 24 | 21 | 18 | 16 | |
| peak. | 28 | 28 | 28 | 24 | 21 | 18 | |
| Max.Torque(N.m) | cont. | 873 | 1108 | 1385 | 1570 | 1773 | 1900 |
| int. | 1119 | 1440 | 1783 | 1951 | 2122 | 2133 | |
| peak. | 1293 | 1650 | 2060 | 2249 | 2481 | 2399 | |
| Speed.Range(cont.)(r/min) | 10-475 | 9-375 | 8-300 | 6-238 | 5-187 | 5-154 | |
| Max.Flow(cont.)(L/min) | 150 | 150 | 150 | 150 | 150 | 150 | |
| Max.Output.Power(cont.)(Kw) | 32 | 32 | 32 | 32 | 32 | 24 | |
| Weight(kg) | 30.7 | 31.5 | 32.4 | 33.6 | 35.2 | 37.2 | |
Applications:
Xeriwell Wheel Motor Orbital type is one type of high torque low speed hydraulic motors, with high efficiency and long life. Which can be widely used for kinds of Rollers, Heavey Machines, Construction Machines etc. To know more details, like technical data or drawing, pls directly contact us or to download from our main website.
My factory take the good faith first, quality first for the purpose, from the employee on-boarding, raw materials into the factory, from parts processing, assembly proposal until products, has a relatively perfect system of product quality. And through CE certification. Our factory is dedicated to the establishment of an internationally renowned brand, looking forward to the long-term cooperation with more demand of hydraulic products.
