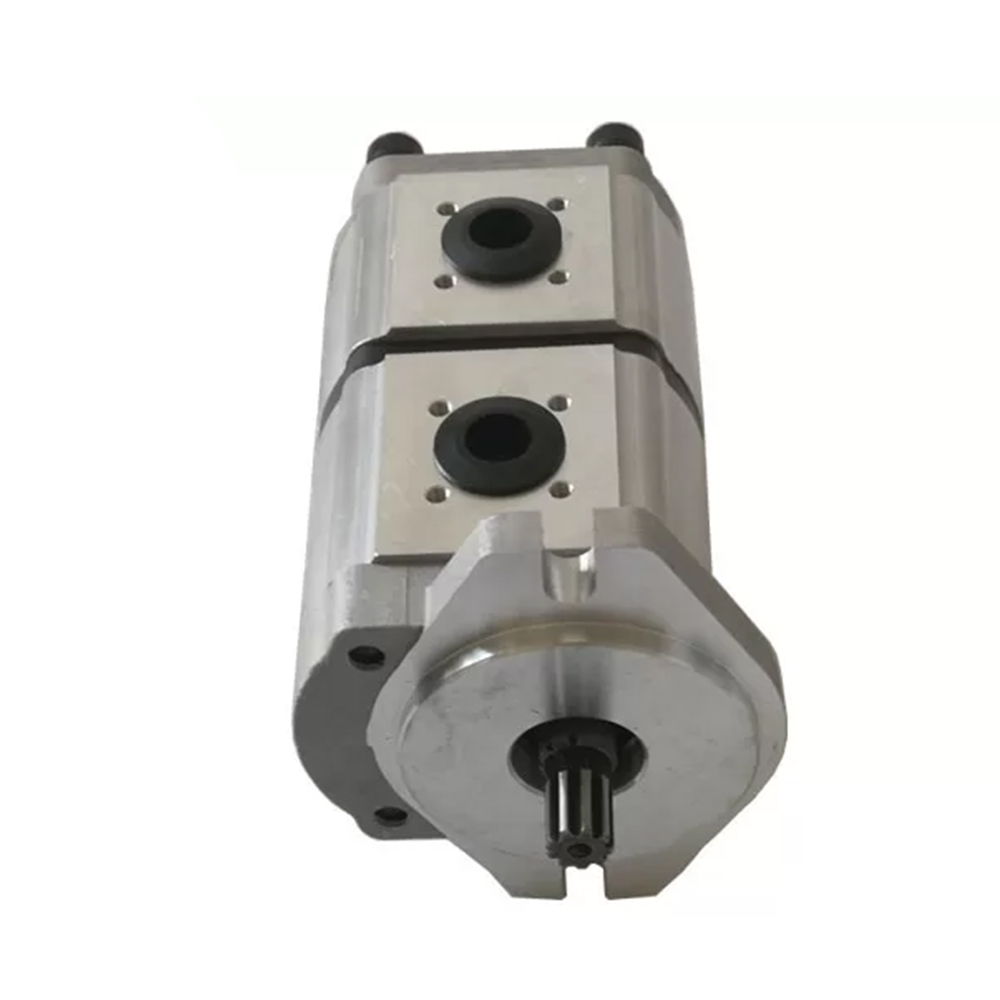

Hydraulic Gear Pump
Xeriwell or Others
| Product Name: | High Efficiency Hydraulic Pump | Pressure Level: | 16 MPa |
|---|---|---|---|
| Displacement (ml/r): | 6,8,10,12,14,16,20,25 | Applications: | Hydraulic Power,construction Machines,plastic Machines |
| Direction Of Rotation: | Left , Right | Nominal Speed: | 2000r/min |
| Highlight: | high pressure gear pump,small gear pump | ||

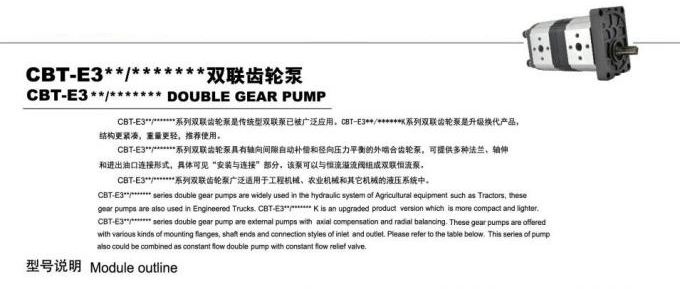

great quality CBT series tendem gear pumps for tractors/trucks with spline shaft Skid Steer hydraulic pumps
The hydraulic gear pump produced by Xeriwell is widely used in various kinds of machinery, such as tractors, excavators, forklifts and other projects as well as agricultural machinery, and is professionally designed for well-known brands of imported machinery, such as Ford, Kubota, Lovol and others.
| nominal displacement(ml/r) | A1,A2 Dimension(mm) | M | φD(MM) | φE(mm) | Rated pressure(Mpa) | Nominal Speed(r/min) | Min Speed(r/min) |
| 6 | 54 | M18X1.5 | φ14 | φ10 | 16 | 2000 | 1100 |
| 8 | 56.5 | 900 | |||||
| 10 | 59.5 | φ18 | φ15 | ||||
| 12 | 63.5 | M24X1.5 | |||||
| 14 | 65.7 | ||||||
| 16 | 68.5 | ||||||
| 20 | 74.5 | M27X1.5 | |||||
| 25 | 82.5 |

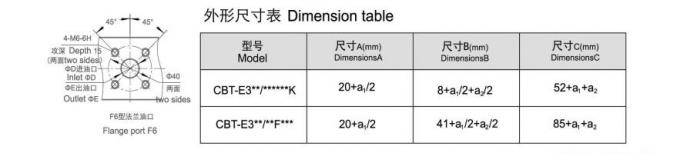

| 外形尺寸表 Dimension table | |||
| 型号 Model | 尺寸A(mm) DimensionsA | 尺寸B(mm) DimensionsB | 尺寸C(mm) DimensionsC |
| CBT-E3**/***K | 20+a1/2 | 8+a1/2+a2/2 | 52+a1+a2 |
| CBT-E3**/***F*** | 20+a1/2 | 41+a1/2+a2/2 | 85+a1+a2 |

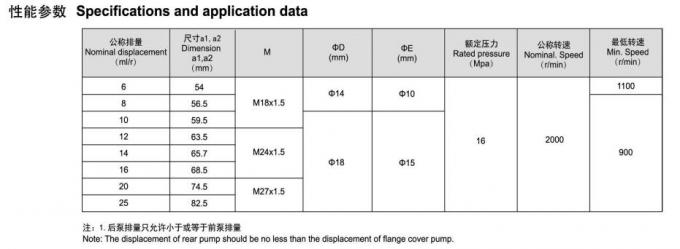

| 性能参数 Specifications and application data | |||||||
| 公称排量 Nominal displacement (ml/r) Nominal displacement (ml/r) | 尺寸a1,a2 Dimension a1,a2 (mm) | M | ΦD (mm) | ΦE (mm) | 额定压力 Rated pressure (Mpa) | 公称转速 Nominal Speed (r/min) | 最低转速 Min. Speed (r/min) |
| 6 | 54 | M18x1.5 | Φ14 | Φ10 | 16 | 2000 | 1100 |
| 8 | 56.5 | 900 | |||||
| 10 | 59.5 | Φ18 | Φ15 | ||||
| 12 | 63.5 | M24x1.5 | |||||
| 14 | 65.7 | ||||||
| 16 | 68.5 | ||||||
| 20 | 74.5 | M27x1.5 | |||||
| 25 | 82.5 | ||||||
| 注：1. 后泵排量只允许小于或等于前泵排量 Note:The displacement of rear pump should be no less than the displacement of flange cover pump. | |||||||
Xeriwell Gear Pump Features:
1. Axial gap automatic compensation mechanism keeps high volumetric efficiency
2. Low noise and long service life
3. Application of high strength aluminum alloy materials, light weight, low installation labor intensity

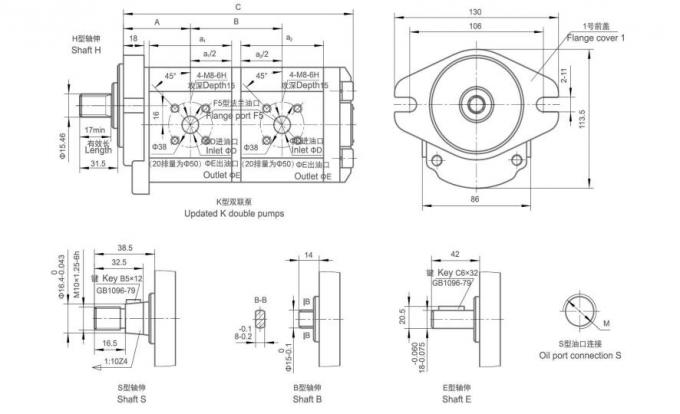

4. Input shaft types: key,rectangular spline,involute spline and woodruff
5. Connections types for the inlet and outlet ports: thread or flange etc.
Applications:
This series pumps also have the advantage of its simple structure, reliable performance, volumetric efficiency, shock resistence and long life service. And they are widely used in the tractors, construction machinery, sanitation trucks and other hydraulic systems.
Xeriwell Is an enterprise specializing in the production of BM series cycloid hydraulic motor, BZZ full hydraulic steering gear, hydraulic gear pump, FK combination valve block and other hydraulic components. The products are widely used in engineering machinery, mining machinery, metallurgical machinery, petroleum machinery, agricultural machinery, injection molding machinery, fishery machinery military engineering and other fields.
Our company has many sets of imported equipment and advanced production technology, has dozens of high-quality engineering and technical personnel, and equipped with its own research and development team, with strong technical force to ensure product quality. We have a complete set of product quality assurance system from employees, raw materials entering the factory, parts processing, equipment testing and product delivery. With high quality, friendly price and considerate service, the products are favored by users at home and abroad.
Xeriwell Hydraulic gear pump for any hydraulic system, our company uses high-end machine tools, excellence, the most humane service, manufacture and service the world, with good products and services to serve the world, welcome advice.
