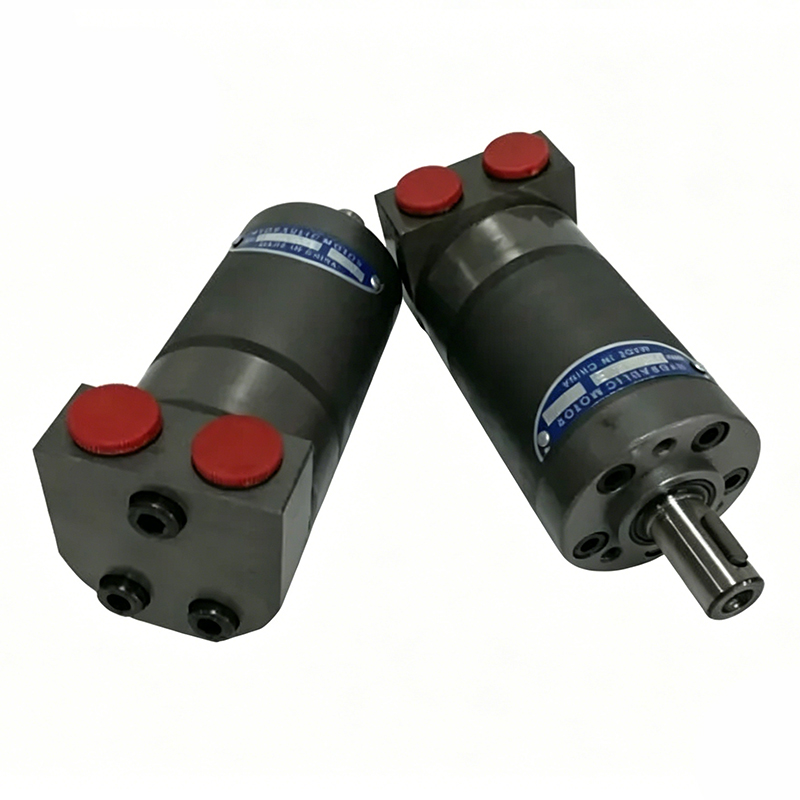

Small Hydraulic Motors BMM 32cc, Side Port For Indoor Sweeper
One type of Xeriwell motor, which can replace , M+S, White, Eaton etc.
BMM Series Motor are small volume, economical type, which is designed with shaft distribution flow, which adapt the Grotor gear set design and provide compact colume, high power and low weight.
Features:
1. Xeriwell BMM = OMM = M+S MM = EATON J Series
2. With the axial oil distribution structure, it is smaller, high efficiency and long life.
3. Shaft seal can bear high pressure of motor of which can be used in parallel or in series.
4. Direction of shaft rotation and speed can be controlled easily and smoothly.
5. The Gerotor gear set design and provide compact volume,high power and low weigt.
6. Can be used on Agricultural, Construction, Forestry, Mining, Industrial, etc.
Main Specifications:
| Type | BMM8 | BMM12 | BMM20 | BMM32 | BMM40 | BMM50 | |
| displacement | 8.2 | 12.9 | 19.9 | 31.6 | 39.8 | 50.3 | |
| Max speed(rpm) | rated | 1537 | 1256 | 814 | 513 | 452 | 358 |
| Cont. | 1950 | 1550 | 1000 | 630 | 500 | 400 | |
| int. | 2450 | 1940 | 1250 | 800 | 630 | 500 | |
| Max Torque (N*M) | rated | 8 | 13 | 19 | 31 | 37 | 33 |
| Cont. | 11 | 16 | 25 | 40 | 45 | 46 | |
| int. | 15 | 23 | 35 | 57 | 70 | 88 | |
| peak | 21 | 33 | 51 | 64 | 82 | 100 | |
| Max speed (kw) | rated | 1.3 | 1.7 | 1.7 | 1.7 | 1.7 | 1.2 |
| Cont. | 1.8 | 2.4 | 2.4 | 2.4 | 2.2 | 1.8 | |
| int. | 2.6 | 3.2 | 3.2 | 3.2 | 3.2 | 3.2 | |
| Max pressure drop(MPa) | rated | 9 | 9 | 9 | 9 | 8.5 | 6 |
| Cont. | 10 | 10 | 10 | 10 | 9 | 7 | |
| int. | 14 | 14 | 14 | 14 | 14 | 14 | |
| peak | 20 | 20 | 20 | 16 | 16 | 16 | |
| Max flow(L/min) | rated | 14 | 18 | 18 | 18 | 20 | 20 |
| Cont. | 18 | 20 | 20 | 20 | 20 | 20 | |
| int. | 20 | 25 | 25 | 25 | 25 | 25 | |
| Weight(kg) | 1.9 | 2 | 2.1 | 2.2 | 2.3 | 2.4 | |
* Continuous pressure:Max. value of operating motor continuously.
* Intermittent pressure :Max. value of operating motor in 6 seconds per minute.
* Peak pressure:Max. value of operating motor in 0.6 second per minute.

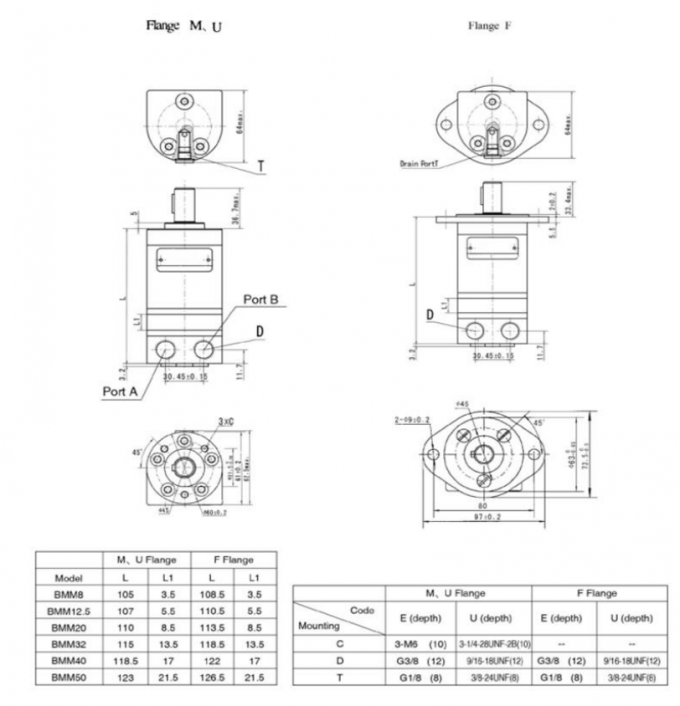

BMM Side Port Dimension and Mounting Data

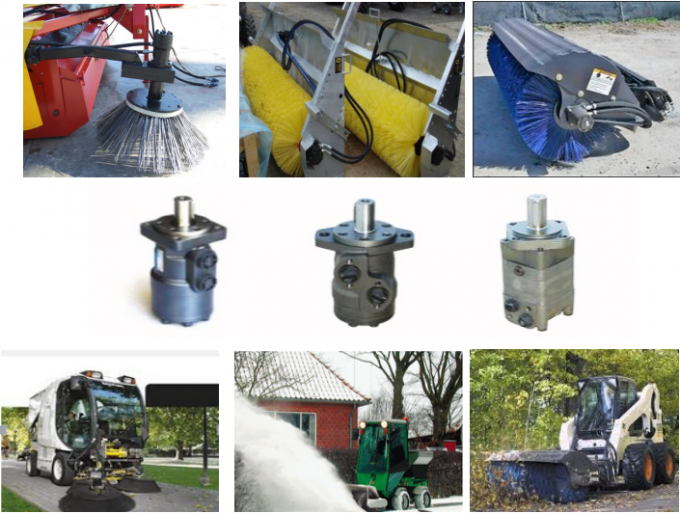

Applications:
BMM Hydraulic Motors apply to indoor and outdoor sweeper, like Hako, Karchrs, Dulevo, Comac, Tennante, etc.
Model Crossing:
| Xeriwell | M+S | EATON | ROSS | WHITE | PARKER | SAM | |||
| HYDRAULIC | HYDRAULIC | CHAR LYNN | TRW | CROSS | BREVINI | REXROTH | |||
| BMM | MM | OMM | MGX | ||||||
| MLHK | J SERIES | - | - | - | BGM | ||||
| BMP/BM1 | MP | OMP | MF | WP | TC | BG | MGP, GMP | ||
| TE | |||||||||
| HP | H SERIES | DH | MG | RS | TB | ||||
| BMR/BM2 | MR | OMR | MB | WR | BR | MGR, GMR | |||
| HR | S,T SERIES | DS | RE | TF | |||||
| MLHRW, RW | W SERIES | OMEW | |||||||
| BMH/BM4 | MH | OMH | |||||||
| MLHH | ME | ||||||||
| HW, HWF | RE | TG | |||||||
| BMS/BM5 | MS, MSY | OMS | TG | MGS, GMS | |||||
| HPR | |||||||||
| MLHS | 2000 SERIES | ME | RE | ||||||
| BMT/BM6 | MT | OMT | MGT, GMT | ||||||
| MLHT | 6000 SERIES | MJ | HT | ||||||
| MTM | TMT | ||||||||
| BMV | MV | OMV | MGV, GMV | ||||||
| MLHV | 10000 SERIES |
