BMV MOTOR
Xeriwell or Others
| Features: | Match /M+S/Eaton/Char_lynn | Material: | Cast Iron /Steel |
|---|---|---|---|
| Application: | Construction Machines, Mine Machines | Displacement: | 630cc |
| Max.speed(rpm): | Cont.320rpm/int.380rpm | Max.torque(N.m): | Cont.1660N.m/int.1940N.m |
| Max.pressure Drop: | Cont.18mpa/int.21Mpa | Oil Temperature: | Normal-35℃-80℃ |
| Viscosity: | 42-74mm2/s | ||
| Highlight: | hydraulic wheel drive motors,hydraulic track motor | ||

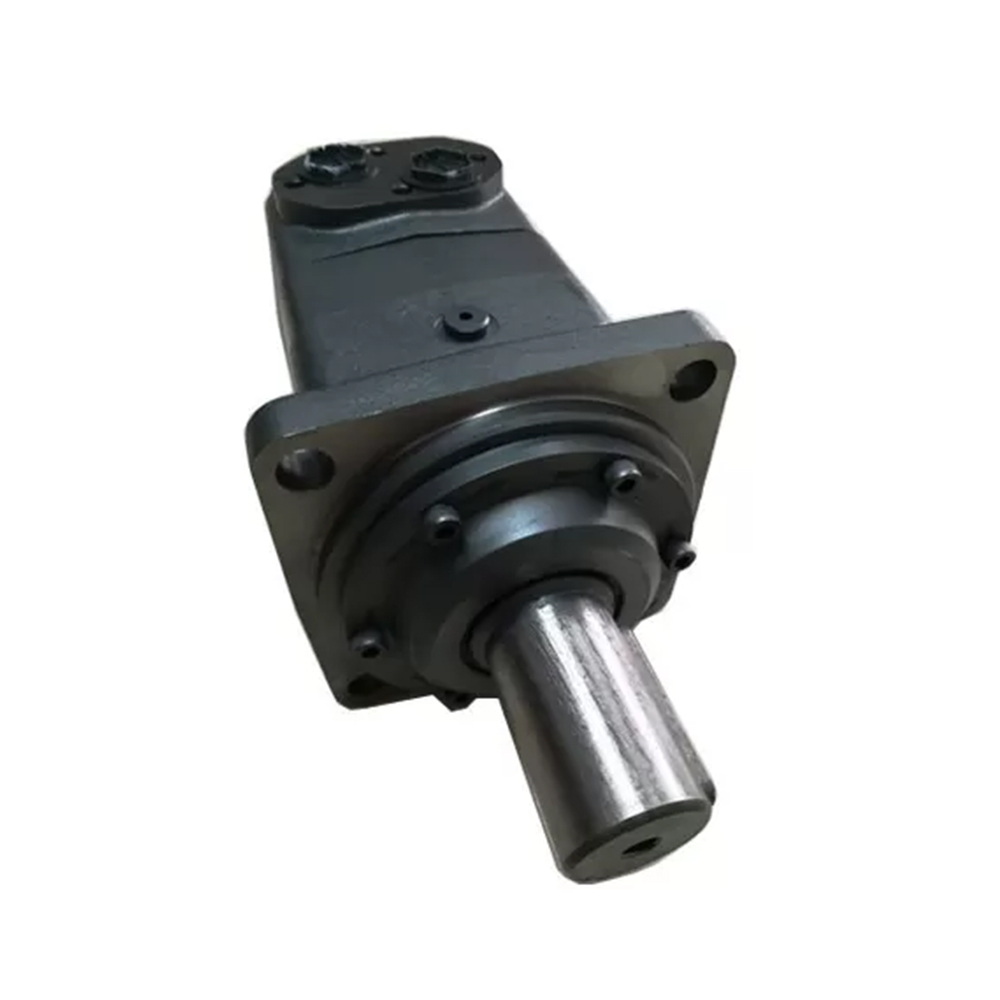

hydraulic products heavy motor OMV630 151B3309 for crusher screener equiepment conveyor powerscreen machines
This heavy hydraulic motor widely unsed for Screeners/Crushers/wheel conveyors/Mobile screens
We are a manufacturer from China specialize in hydraulic motor which is very good quality and much more excellent price
CHARACTERISTIC FEATURES:
Constant operating torque over a wide speed range
Smooth running over the entire speed range
High starting torque
High efficiency
High return pressure without the use of drain line (High pressure shaft seal)
Long life under extreme operating conditions
High radial and axial bearing capacity
Robust and compact design
Suitable for a wide varie
Main Specification:
| Type | BMV 315 | BMV 400 | BMV 500 | BMV 630 | BMV 800 | BMV 1000 | |
| Geometric displacement (cm3 /rev.) | 333 | 419 | 518 | 666 | 801 | 990 | |
| Max. speed (rpm) | cont. | 510 | 500 | 400 | 320 | 250 | 200 |
| int. | 630 | 600 | 480 | 380 | 300 | 240 | |
| Max. torque (N·m) | cont. | 920 | 1180 | 1460 | 1660 | 1880 | 2015 |
| int. | 1110 | 1410 | 1760 | 1940 | 2110 | 2280 | |
| peak | 1290 | 1640 | 2050 | 2210 | 2470 | 2400 | |
| Max. output (kW) | cont. | 38 | 47 | 47 | 40 | 33 | 28.6 |
| int. | 46 | 56 | 56 | 56 | 44 | 40 | |
| Max. pressure drop (MPa) | cont. | 20 | 20 | 20 | 18 | 16 | 14 |
| int. | 24 | 24 | 24 | 21 | 18 | 16 | |
| peak | 28 | 28 | 28 | 24 | 21 | 18 | |
| Max. flow (L/min) | cont. | 160 | 200 | 200 | 200 | 200 | 200 |
| int. | 200 | 240 | 240 | 240 | 240 | 240 | |
| Weight (kg) | 31.8 | 32.6 | 33.5 | 34.9 | 36.5 | 38.6 | |
APPLICATIONS:
Mobile equipment
Snow Removal, mowing
Spayer, trencher
Wood products
Material Handling Equipment
Oil & Gas
Forestry Equipment
Mining
Xeriwell is specializes in designing and producing any type of motor and steering gear required by our customers, from large to small, from low to high displacement. And can replace , Eaton, M + S series models. Products are widely used in engineering machinery, mining machinery, metallurgical machinery, petroleum machinery, agricultural machinery, injection molding machinery, fishery machinery, military engineering and other fields.
My factory takes honesty first and quality first as its tenet. From the employees' posts to the raw materials, to the factory, from parts processing and assembly advice to product leaving, there is a relatively complete product quality system. And passed CE certification. Our factory is committed to establishing an internationally renowned brand and looks forward to long-term cooperation with more demanders of hydraulic products.
we are willing to be your new supplier, because our products have lower price and good performance,will saving you more extra cost,the best after sale service will less complaint from your consumers,also stable delivery will make you have enough stock.
| Pos.1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 Unusually function | |||||||
| Code | 排量 Disp. | 法兰 Flange | 轴键 Output shaft | 进□Port and drain port | Rotation direction | Paint | ||||||||
| Omit | 315 400 500 630 800 1000 | 4 W | 4-Ø18 Square-flangeØ200,pilot Ø160 × 11 4-Ø18 Wheel-flange Ø224,pilot Ø180 × 10 | A BD BC C T T1 | Shaft Ø50,parallel key 14 × 9 × 70 | D M S G M5 S1 | G1 Manifold 4 × M12,G1/4 M33 × 2 Manifold 4 × M12,M14 × 1.5 1-5/16-12UN,9/16-18UNF G1,G1/4 M33 × 2,M14 × 1.5 1-5/16-12UN(18),7/16-20UNF(12) | 0ml R | Standard Opposite | 0 0ml B S | No paint Blue Black Silver grey | 0ml | Standard | |
| Shat Ø53.975,spined key 16-DP8/16 | ||||||||||||||
| Shaft Ø53.975,spined key 16-DP8/16 | ||||||||||||||
| Shaft Ø57.15,parallel key 12.7 × 12.7 × 57.15 | ||||||||||||||
| Cone shaft Ø60,parallel key B16 × 10 × 32 | ||||||||||||||
| Cone shaft Ø60,parallel key 14.308 × 14.308 × 50.8 | ||||||||||||||
