BMTE-250-CCG1SFB
Xeriwell or Others
| Features: | High Torque | Product: | High Torque Hydraulic Motor |
|---|---|---|---|
| Type: | BMT Series | Applications: | Mining & Drilling Equipment |
| Used On: | Hydraulic System | Rotary: | Left & Right |
| Highlight: | 1036 N*M Heavy Duty Hydraulic Motor,31.75mm Heavy Duty Hydraulic Motor,625rpm Heavy Duty Hydraulic Motor | ||

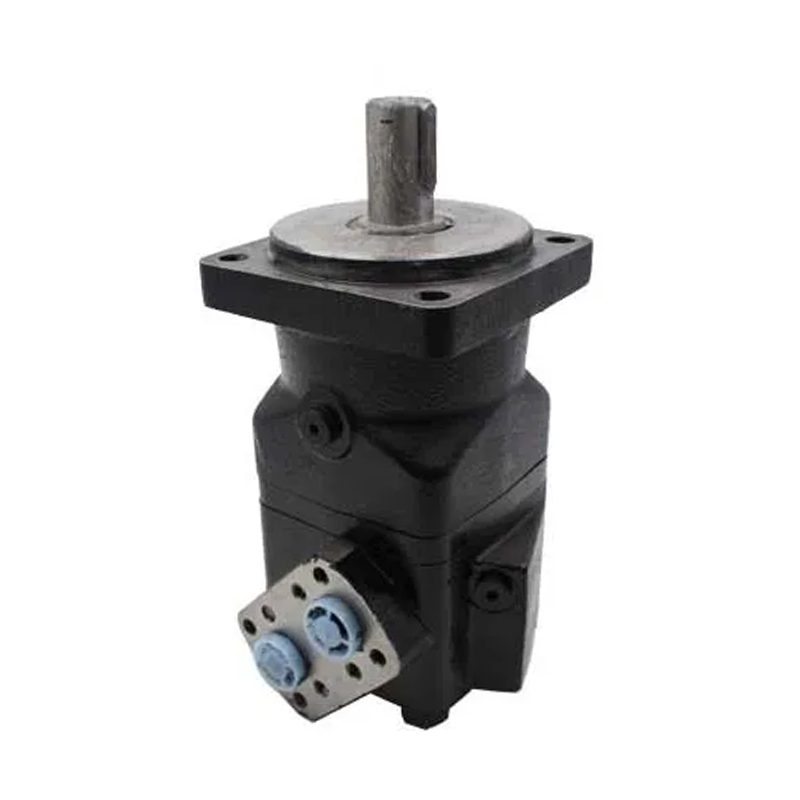

BMTE-250-CCG1SFB Heavy Duty Hydraulic Motor Torque 1036 n*m 31.75mm shaft
| Main Specifications: |
| Type | BMT 160 | BMT 200 | BMT 230 | BMT 250 | BMT 315 | BMT 400 | BMT 500 | BMT 630 | BMT 800 | |
| Geometric displacement (cm3 /rev.) | 161.1 | 201.4 | 232.5 | 251.8 | 326.3 | 410.9 | 523.6 | 629.1 | 801.8 | |
| Max. speed (rpm) | cont. | 625 | 625 | 536 | 500 | 380 | 305 | 240 | 196 | 154 |
| int. | 780 | 750 | 643 | 600 | 460 | 365 | 285 | 233 | 185 | |
| Max. torque (N·m) | cont. | 470 | 590 | 670 | 730 | 950 | 1080 | 1220 | 1318 | 1464 |
| int. | 560 | 710 | 821 | 880 | 1140 | 1260 | 1370 | 1498 | 1520 | |
| peak | 669 | 838 | 958 | 1036 | 1346.3 | 1450.3 | 1643.8 | 1618.8 | 1665 | |
| Max. output (kW) | cont. | 27.7 | 34.9 | 34.7 | 34.5 | 34.9 | 31.2 | 28.8 | 25.3 | 22.2 |
| int. | 32 | 40 | 40 | 40 | 40 | 35 | 35 | 27.5 | 26.8 | |
| Max. pressure drop (MPa) | cont. | 20 | 20 | 20 | 20 | 20 | 18 | 16 | 14 | 12.5 |
| int. | 24 | 24 | 24 | 24 | 24 | 21 | 18 | 16 | 13 | |
| peak | 28 | 28 | 28 | 28 | 28 | 24 | 21 | 19 | 16 | |
| Max. flow (L/min) | cont. | 100 | 125 | 125 | 125 | 125 | 125 | 125 | 125 | 125 |
| int. | 125 | 150 | 150 | 150 | 150 | 150 | 150 | 150 | 150 | |
| Max. inlet pressure (MPa) | cont. | 21 | 21 | 21 | 21 | 21 | 21 | 21 | 21 | 21 |
| int. | 25 | 25 | 25 | 25 | 25 | 25 | 25 | 25 | 25 | |
| peak | 30 | 30 | 30 | 30 | 30 | 30 | 30 | 30 | 30 | |
| Weight (kg) | 19.5 | 20 | 20.4 | 20.5 | 21 | 22 | 23 | 24 | 25 | |
* Continuous pressure :Max. value of operating motor continuously.
* Intermittent pressure :Max. value of operating motor in 6 seconds per minute.
* Peak pressure:Max. value of operating motor in 0.6 second per minute.
| Flange | ||
| 4 | 4-Ø14 Square-flangeØ160,pilotØ125×9 | BMT |
| K6 | 4-Ø14.5Square-flangeØ162,pilotØ127×9 | |
| W | 4-Ø18 Wheel-flangeØ200,pilotØ160×7 | |
| D | 4-Ø14 Circle-flange Ø160,pilot Ø125×8 | BMTS |
| E | 4-Ø14.5 Square-flange Ø162, pilot Ø127×10 | |
| Output Shaft | ||
| M | Shaft Ø40,parallel key 12×8×70 | BMT |
| G | Shaft Ø38.1,parallel key 9.52×9.52×57.15 | |
| F | Shaft Ø38.1,splined tooth 17-DP12/24 | |
| FD | Shaft Ø38.1,splined tooth 17-DP12/24 | |
| T | Cone-shaft 1:10 Ø45,parallel key B12×8×28 | |
| T1 | Cone-shaft 1:8 Ø45,parallel key 11.13×11.13×31.75 | |
| SL | shaft Ø34.85,Splined key,Splined key 6-34.85×28.14×8.64 | |
| G1 | shaftØ31.75,parallel key 7.96×7.96×40 | |
| F1 | Shaft Ø31.75,splined tooth 14-DP12/24 | |
| Omit | Short shaft 16-DP12/24 | BMTS |
| Port and Drain Port | ||
| D | G3/4 Manifold Mount,4-M10 , G1/4 | |
| M | M27×2 Manifold Mount,4-M10, M14×1.5 | |
| S | 1-1/16-12UN O-ring, 9/16-18UNF | |
| S1 | 1-1/16-12UN O-ring, 7/16-20UNF | |
| G | G3/4,G1/4 | |
| M3 | M27×2,M14×1.5 | |
Xeriwell produce and supply hydraulic motors to kind of mining drilling equipments.
rock drill rig,
multipurpose drill rig,
coring investigation drill rig,
soil investigation drill rig,
piling grouting drill rig,
jet grounting drill rig,
water well drill rig,
