| Quantity: | |
|---|---|
BMS
Xeriwell or Others
| Type: | Low Speed High Torque Motor | Place Of Origin: | China(Mainland) |
|---|---|---|---|
| Flange: | 4 Bolts Squre Flange | Motor Number: | 80cc, 100cc, 125cc, 160cc, 200cc, 250cc, 315cc, 395cc |
| Max. Speed: | 800~2000[rpm] | Application: | Winches, Harvesters, Agricultural Machines, Sweepers, Spreaders Etc. |
| Highlight: | high power hydraulic motor,two speed hydraulic motor | ||

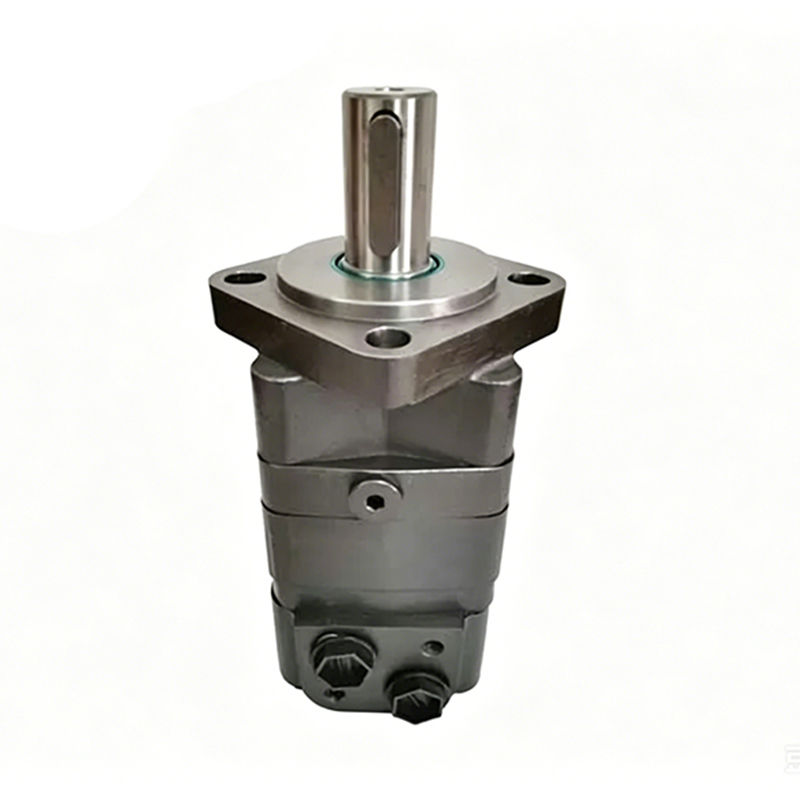

Hydraulic Winch Motor BMS , OMS , 2000 Series For Fishing Boat Rolling , Drilling Machine
OMS series Hydraulic orbit motor Characteristic featutres:
Advanced manufacturing devices for the Geroler gear set,which use low pressure of start-up,
provide smooth and reliable operation and high efficiency.
The output shaft adapts in tapered roller bearings that permit high axial and radial forces.The
can offers capacities of high pressure and high torque in the wide of applications.
Advanced design in disc distrbution flow, which can automatically compensate in operating with high volume efficiency and long life,provide smooth and reliable operation.
Sprinkler
Mini excavator
Driven scraper conveyor
Screw
Baler
Hydraulic Winch
Fishing boat
Plastic injection mold machine
Cleaner
Grass cutter
Winches
Conveyors
Slews
Sweeper Drives
Augers Cutters
Mowers
Chippers
Drilling machine
Municipal machinery, agriculture, forestry and construction equipment etc
Specifications:
| Type | BMS BMSE 80 | BMS BMSE 100 | BMS BMSE 125 | BMS BMSE 160 | BMS BMSE 200 | BMS BMSE 250 | BMS BMSE 315 | BMS BMSE 375 | |
| Geometric displacement (cm3 /rev.) | 80.6 | 100.8 | 125 | 157.2 | 200 | 252 | 314.5 | 370 | |
| Max. speed (rpm) | cont. | 800 | 748 | 600 | 470 | 375 | 300 | 240 | 200 |
| int. | 988 | 900 | 720 | 560 | 450 | 360 | 280 | 240 | |
| Max. torque (N·m) | cont. | 190 | 240 | 310 | 316 | 400 | 450 | 560 | 536 |
| int. | 240 | 300 | 370 | 430 | 466 | 540 | 658 | 645 | |
| peak | 260 | 320 | 400 | 472 | 650 | 690 | 740 | 751 | |
| Max. output (kW) | cont. | 15.9 | 18.8 | 19.5 | 15.6 | 15.7 | 14.1 | 14.1 | 11.8 |
| int. | 20.1 | 23.5 | 23.2 | 21.2 | 18.3 | 17 | 18.9 | 17 | |
| Max. pressure drop (MPa) | cont. | 17.5 | 17.5 | 17.5 | 15 | 14 | 12.5 | 12 | 10 |
| int. | 21 | 21 | 21 | 21 | 16 | 16 | 14 | 12 | |
| peak | 22.5 | 22.5 | 22.5 | 22.5 | 22.5 | 20 | 18.5 | 14 | |
| Max. flow (L/min) | cont. | 65 | 75 | 75 | 75 | 75 | 75 | 75 | 75 |
| int. | 80 | 90 | 90 | 90 | 90 | 90 | 90 | 90 | |
| Max. inlet pressure (MPa) | cont. | 25 | 25 | 25 | 25 | 25 | 25 | 25 | 25 |
| int. | 30 | 30 | 30 | 30 | 30 | 30 | 30 | 30 | |
| Weight (kg) | 9.8 | 10 | 10.3 | 10.7 | 11.1 | 11.6 | 12.3 | 12.6 | |
* Continuous pressure :Max. value of operating motor continuously.
* Intermittent pressure :Max. value of operating motor in 6 seconds per minute.
* Peak pressure:Max. value of operating motor in 0.6 second per minute.
