BMER
Xeriwell or Others
| Material: | Cast Iron | Max Torque: | Cont.810n.m/int930n.m |
|---|---|---|---|
| Max Speed: | Cont250rpm/int.315rpm | Max Flow: | Cont.80l/min Int.95l/min |
| Max.output: | Cont.18kw/int.21kw | Application: | Platform Spare Parts |
| Highlight: | Boom Lifts Parts Gear Hydraulic Motor,300CC Gear Hydraulic Motor,4000022840 Gear Hydraulic Motor | ||

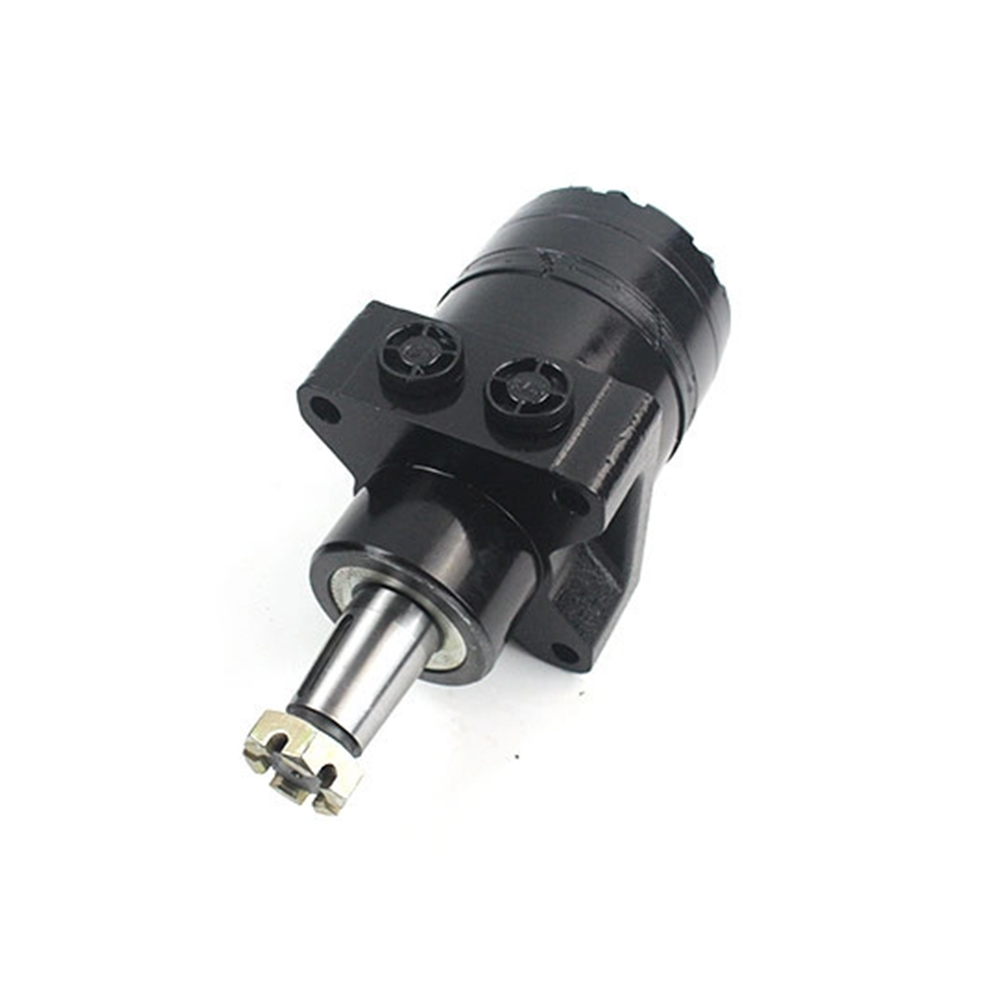

Model Hydraulic Wheel Motor With Bolts and coupling for Haulotte
Ref. model HA - 2431203590
Height 16.5 kg
Compatible with Haulotte Compact 8, Compact 8W, Compact 10,Compact 10 RTE, Compact 10N, Compact 12, Compact 12 RTE, Compact 14
Main Specifications:
| Type | BMER | BMER | BMER | BMER | BMER | BMER | BMER | BMER | BMER | BMER | BMER | |
| 125 | 160 | 200 | 230 | 250 | 300 | 350 | 375 | 475 | 540 | 750 | ||
| Geometric displacement (cm3/rev.) | 118 | 156 | 196 | 228 | 257 | 296 | 345 | 371 | 462 | 540 | 745 | |
| Max. speed (rpm) | cont. | 360 | 375 | 330 | 290 | 290 | 250 | 220 | 200 | 160 | 140 | 100 |
| int. | 490 | 470 | 425 | 365 | 350 | 315 | 270 | 240 | 195 | 170 | 120 | |
| Max. torque (N•m) | cont. | 325 | 450 | 530 | 625 | 700 | 810 | 905 | 990 | 1085 | 980 | 1050 |
| int. | 380 | 525 | 600 | 710 | 790 | 930 | 1035 | 1140 | 1180 | 1240 | 1180 | |
| peak | 450 | 590 | 750 | 870 | 980 | 1120 | 1285 | 1360 | 1260 | 1380 | 1370 | |
| Max. output (kW) | cont. | 12.0 | 15.0 | 15.5 | 16.0 | 17.5 | 18.0 | 17.5 | 16.5 | 14.5 | 11.5 | 8.0 |
| int. | 14.0 | 17.5 | 18.0 | 19.0 | 20.0 | 21.0 | 20.0 | 19.0 | 16.5 | 15.0 | 10.0 | |
| Max. pressure drop (MPa) | cont. | 20.5 | 20.5 | 20.5 | 20.5 | 20.5 | 20.5 | 20.5 | 20.5 | 17.5 | 14 | 10.5 |
| int. | 24 | 24 | 24 | 24 | 24 | 24 | 24 | 24 | 19 | 17.5 | 12 | |
| peak | 27.6 | 27.6 | 27.6 | 27.6 | 27.6 | 27.6 | 27.6 | 27.6 | 20.5 | 20.5 | 14 | |
| Max. flow (L/min) | cont. | 45 | 60 | 70 | 70 | 75 | 80 | 80 | 75 | 75 | 75 | 75 |
| int. | 60 | 75 | 85 | 85 | 90 | 95 | 95 | 90 | 90 | 90 | 90 | |
ELECTRIC SCISSOR LIFTS COMPACT 8W / COMPACT 2247E
ELECTRIC SCISSOR LIFTS COMPACT 8 / COMPACT 2032E
ELECTRIC SCISSOR LIFTS COMPACT 14 / COMPACT 3947E
ELECTRIC SCISSOR LIFTS COMPACT 10N / COMPACT 2632E
ELECTRIC SCISSOR LIFTS COMPACT 10 / COMPACT 2747E
