| Quantity: | |
|---|---|
BMK2-290
Xeriwell or Others
| Features: | Eaton Replacement | Type: | Low Speed High Torque Motors Lsht Gerotor |
|---|---|---|---|
| Series: | BMK2 | Size: | 290 Cm3 |
| Highlight: | heavy duty hydraulic motor,large hydraulic motor | ||

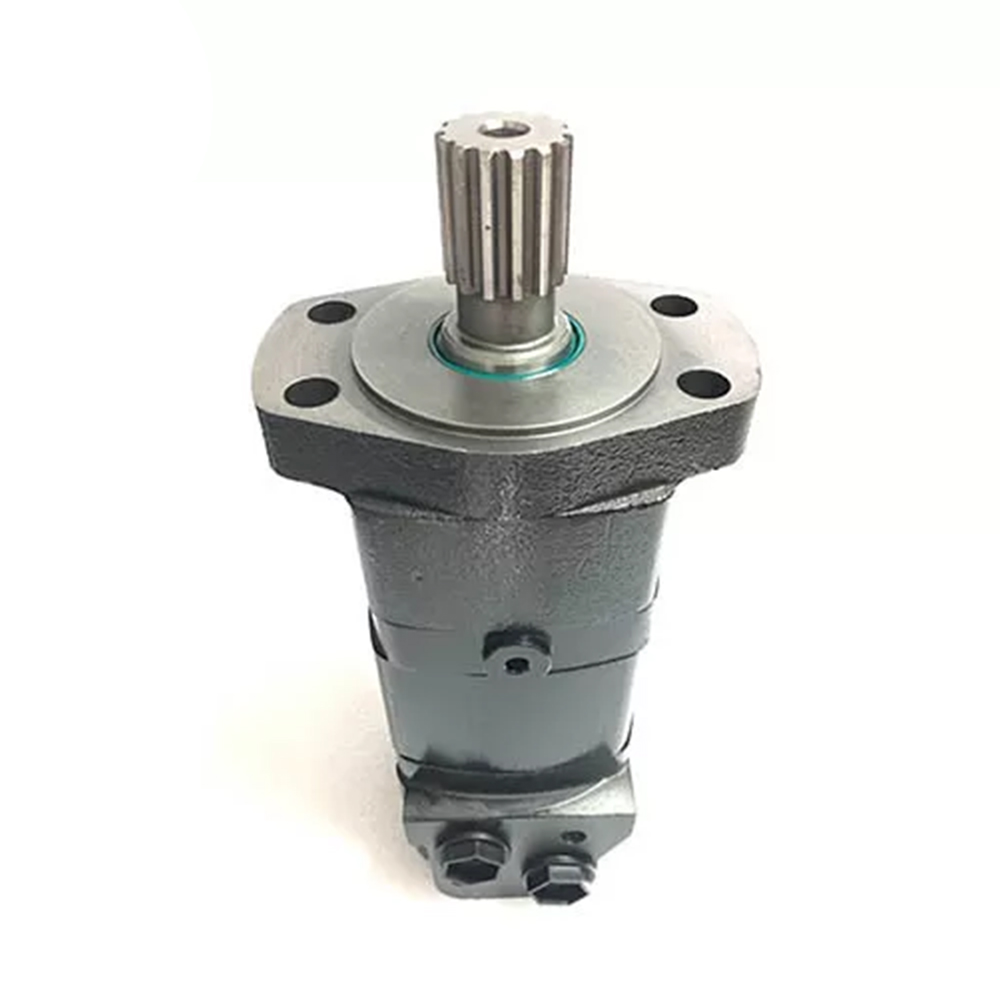

Harvesting equipment eaton hydraulic drive motors 2-290AB6C-E 2-290AB6C-E Motor Replacement, 288 (CM3/REV)
This motor is one special type motor to replace Eaton 2000 (2K) series.
This motor is one special type motor to replace OMS series.
Model number: 2-290AB6C-E
Specifications:
motor BMK2
displacement 290 ml/r

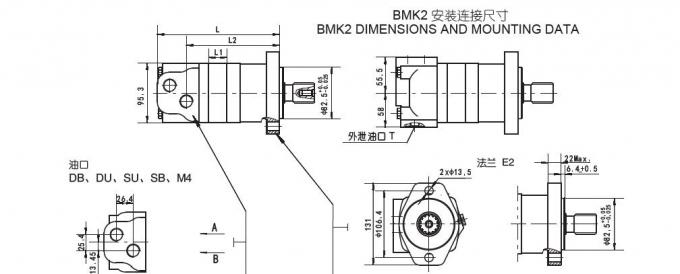

4-13.5 rhomb-flange, pilot 82.5x6.4mm
shaft 31.75mm, spline key 14-DP12/24
port and drain port G 1/2, G 1/4
rotation standard
| Main Specifications: | |||||||||||
| Type | BMK2 | BMK2 | BMK2 | BMK2 | BMK2 | BMK2 | BMK2 | BMK2 | BMK2 | BMK2 | |
| 65 | 80 | 100 | 125 | 160 | 200 | 250 | 315 | 400 | 475 | ||
| Geometric displacement (cm3 /rev.) | 65 | 80 | 100.9 | 129.8 | 156.8 | 193.4 | 242.5 | 304.3 | 390.8 | 485 | |
| Max. speed (rpm) | cont. | 835 | 800 | 742 | 576 | 477 | 385 | 308 | 246 | 191 | 153 |
| int. | 990 | 980 | 924 | 720 | 713 | 577 | 462 | 365 | 287 | 230 | |
| Max. torque (N·m) | cont. | 185 | 235 | 295 | 385 | 455 | 540 | 660 | 765 | 775 | 845 |
| int. | 245 | 345 | 445 | 560 | 570 | 665 | 820 | 885 | 925 | 930 | |
| Max. pressure drop (MPa) | cont. | 20.5 | 21 | 21 | 21 | 20.5 | 20.5 | 20.5 | 21 | 15.5 | 12 |
| int. | 27.5 | 31 | 31 | 31 | 26 | 26 | 26 | 24 | 17 | 14 | |
| peak | 31 | 31 | 31 | 31 | 31 | 31 | 31 | 31 | 20.5 | 17 | |
| Max. flow (L/min) | cont. | 55 | 65 | 75 | 75 | 75 | 75 | 75 | 75 | 75 | 75 |
| int. | 65 | 80 | 95 | 95 | 115 | 115 | 115 | 115 | 115 | 115 | |
| Weight (kg) | 9.2 | 9.4 | 9.7 | 10 | 10.2 | 10.5 | 11 | 11.5 | 12 | 12.4 | |
| * Continuous pressure :Max. value of operating motor continuously. | |||||||||||
| * Intermittent pressure :Max. value of operating motor in 6 seconds per minute. | |||||||||||
| * Peak pressure:Max. value of operating motor in 0.6 second per minute. | |||||||||||
Market we serve:
• Turf Equipment
• Aerial
• Agriculture Machinery
• Construction Equipment
• Factory Automation
• Material Handling Equipment
• Oil & Gas
• Forestry Equipment
• Mining
Features/Benefits:
• Robust construction for longer life
• Continuous oil flow across internal splines for longer life
• Superior side load capacity
• Smooth, extra low speed operation
• High pressure shaft seal is standard
• Innovative design eliminates the need for a drain
• Dependability based on high quality design and manufacturing
• Designed and manufactured in Greeneville, TN USA
Applications:
• Trenchers
• Skid Steer Attachments
• Zero Turn Mowers
• Golf Course Maintenance Equipment
• Sweepers
• Wood Chippers
• Conveyers
• Combine Harvesters
• Winches
• Augers
• Portable Irrigation Systems
• Post Hole Augers
• Potato, Tomato, Nut, Leafy Vegetable, Sugar, Cotton, Coffee and Grape Specialty Harvesters
• Combine Header Drives
• Sprayers
• Scissor Lifts
• Snow Removal
• Salt and Sand Spreaders
• Oil and Gas Blender Trucks
• Mini and Walk-Behind Skid Steers
• Tool Carriers
• Pipe Spinners
