| Quantity: | |
|---|---|
BMP
Xeriwell or Others
| Item: | Harvester Components | Type: | Low Speed High Torque Motor |
|---|---|---|---|
| Direction: | Clockwise | Speed: | 280/375 Rpm |
| Flow: | 45/60LPM | Torque: | 310/436NM |
| Mounting: | 4 Bolt | Port: | SAE |
| Shaft: | Long 1'' Keyed | Application: | John Deere |
| Highlight: | Harvester Headband Low Speed High Torque Motor,60LPM Low Speed High Torque Motor,John Deere Low Speed High Torque Motor | ||

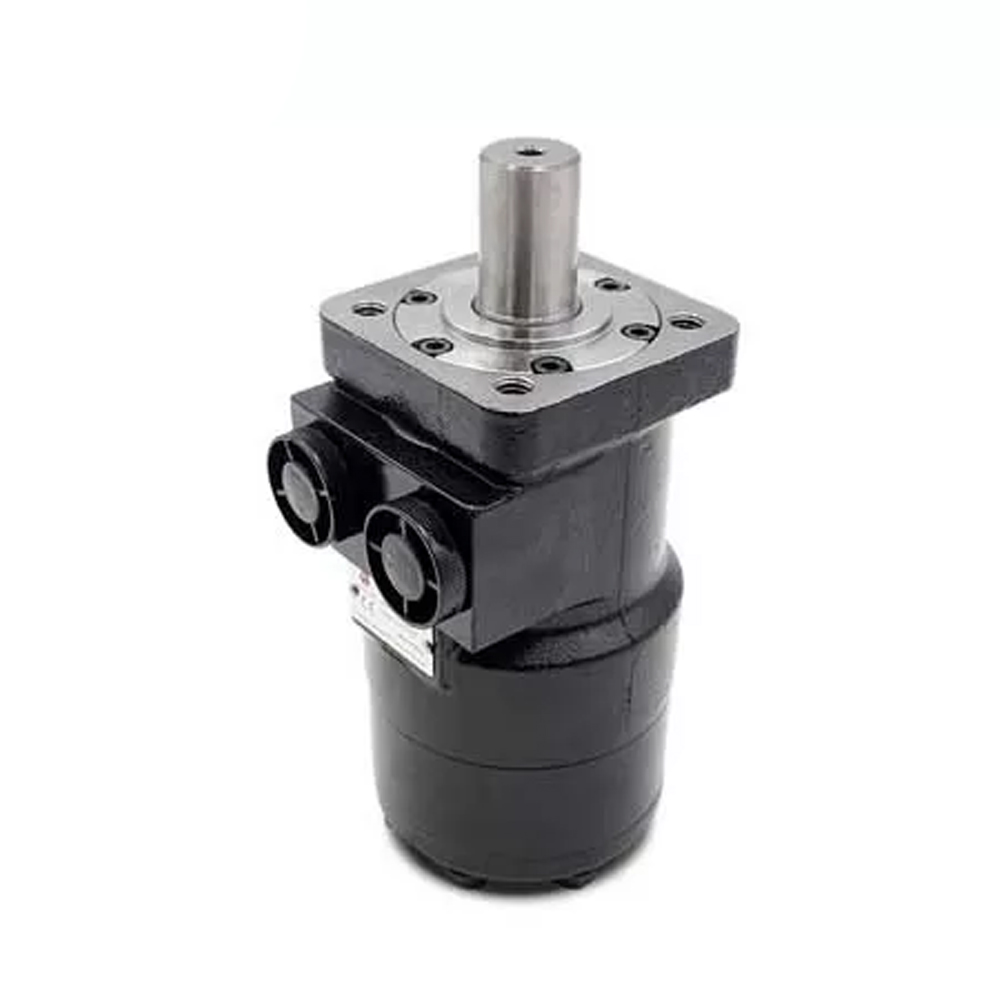

Harvester Headband Components Low Speed High Torque motor 4 bolt Parker Alternative
We provide hydraulic motors for combine harvesters for hydraulic harvesting systems
This hydraulic motor applied from tough sugarcane surrenders to tougher hydraulic harvester
No matter what model you need, what size, what installation method, I can provide
And has a price performance leading position
Item
Harvester Components
Type
Low Speed High Torque Motor
Direction
Clockwise
Speed
280/375 Rpm
Flow
45/60 LPM
Torque
310/436NM
Mounting
4 Bolt
Port
SAE
Shaft
Long 1'' Keyed
Application
John Deere
| Main Specifications: |
| Technical data for BMP with 25 and 1 in and 1 in splined and 28.56 tapered shaft: |
| Type | BMP BMPH BMPW 36 | BMP BMPH BMPW 50 | BMP BMPH BMPW 80 | BMP BMPH BMPW 100 | BMP BMPH BMPW 125 | BMP BMPH BMPW 160 | BMP BMPH BMPW 200 | BMP BMPH BMPW 250 | BMP BMPH BMPW 315 | BMP BMPH BMPW 400 | BMP BMPH BMPW 500 | |
| Geometric displacement (cm3 /rev.) | 36 | 51.7 | 77.7 | 96.2 | 120.2 | 157.2 | 194.5 | 240.3 | 314.5 | 389.5 | 486.5 | |
| Max. speed (rpm) | cont. | 1500 | 1150 | 770 | 615 | 490 | 383 | 310 | 250 | 192 | 155 | 120 |
| int. | 1650 | 1450 | 960 | 770 | 615 | 475 | 385 | 310 | 240 | 190 | 150 | |
| Max. torque (N·m) | cont. | 55 | 100 | 146 | 182 | 236 | 302 | 360 | 380 | 375 | 360 | 385 |
| int. | 76 | 128 | 186 | 227 | 290 | 370 | 440 | 460 | 555 | 525 | 560 | |
| peak | 96 | 148 | 218 | 264 | 360 | 434 | 540 | 550 | 650 | 680 | 680 | |
| Max. output (kW) | cont. | 8 | 10 | 10 | 11 | 10 | 10 | 10 | 8.5 | 7 | 6 | 5 |
| int. | 11.5 | 12 | 12 | 13 | 12 | 12 | 12 | 10.5 | 8.5 | 7 | 6 | |
| Max. pressure drop (MPa) | cont. | 12.5 | 14 | 14 | 14 | 14 | 14 | 14 | 11 | 9 | 7 | 6 |
| int. | 16.5 | 17.5 | 17.5 | 17.5 | 17.5 | 17.5 | 17.5 | 14 | 14 | 10.5 | 9 | |
| peak | 22.5 | 22.5 | 22.5 | 22.5 | 22.5 | 22.5 | 22.5 | 18 | 16 | 14 | 12 | |
| Max. flow (L/min) | cont. | 55 | 60 | 60 | 60 | 60 | 60 | 60 | 60 | 60 | 60 | 60 |
| int. | 60 | 75 | 75 | 75 | 75 | 75 | 75 | 75 | 75 | 75 | 75 | |
| Weight (kg) | 5.6 | 5.6 | 5.7 | 5.9 | 6 | 6.2 | 6.4 | 7 | 6.9 | 7.4 | 8 | |
| Item: | Harvester Components | Type: | Low Speed High Torque Motor |
|---|---|---|---|
| Direction: | Clockwise | Speed: | 280/375 Rpm |
| Flow: | 45/60LPM | Torque: | 310/436NM |
| Mounting: | 4 Bolt | Port: | SAE |
| Shaft: | Long 1'' Keyed | Application: | John Deere |
| Highlight: | Harvester Headband Low Speed High Torque Motor,60LPM Low Speed High Torque Motor,John Deere Low Speed High Torque Motor | ||
Harvester Headband Components Low Speed High Torque motor 4 bolt Parker Alternative
We provide hydraulic motors for combine harvesters for hydraulic harvesting systems
This hydraulic motor applied from tough sugarcane surrenders to tougher hydraulic harvester
No matter what model you need, what size, what installation method, I can provide
And has a price performance leading position
Item
Harvester Components
Type
Low Speed High Torque Motor
Direction
Clockwise
Speed
280/375 Rpm
Flow
45/60 LPM
Torque
310/436NM
Mounting
4 Bolt
Port
SAE
Shaft
Long 1'' Keyed
Application
John Deere
| Main Specifications: |
| Technical data for BMP with 25 and 1 in and 1 in splined and 28.56 tapered shaft: |
| Type | BMP BMPH BMPW 36 | BMP BMPH BMPW 50 | BMP BMPH BMPW 80 | BMP BMPH BMPW 100 | BMP BMPH BMPW 125 | BMP BMPH BMPW 160 | BMP BMPH BMPW 200 | BMP BMPH BMPW 250 | BMP BMPH BMPW 315 | BMP BMPH BMPW 400 | BMP BMPH BMPW 500 | |
| Geometric displacement (cm3 /rev.) | 36 | 51.7 | 77.7 | 96.2 | 120.2 | 157.2 | 194.5 | 240.3 | 314.5 | 389.5 | 486.5 | |
| Max. speed (rpm) | cont. | 1500 | 1150 | 770 | 615 | 490 | 383 | 310 | 250 | 192 | 155 | 120 |
| int. | 1650 | 1450 | 960 | 770 | 615 | 475 | 385 | 310 | 240 | 190 | 150 | |
| Max. torque (N·m) | cont. | 55 | 100 | 146 | 182 | 236 | 302 | 360 | 380 | 375 | 360 | 385 |
| int. | 76 | 128 | 186 | 227 | 290 | 370 | 440 | 460 | 555 | 525 | 560 | |
| peak | 96 | 148 | 218 | 264 | 360 | 434 | 540 | 550 | 650 | 680 | 680 | |
| Max. output (kW) | cont. | 8 | 10 | 10 | 11 | 10 | 10 | 10 | 8.5 | 7 | 6 | 5 |
| int. | 11.5 | 12 | 12 | 13 | 12 | 12 | 12 | 10.5 | 8.5 | 7 | 6 | |
| Max. pressure drop (MPa) | cont. | 12.5 | 14 | 14 | 14 | 14 | 14 | 14 | 11 | 9 | 7 | 6 |
| int. | 16.5 | 17.5 | 17.5 | 17.5 | 17.5 | 17.5 | 17.5 | 14 | 14 | 10.5 | 9 | |
| peak | 22.5 | 22.5 | 22.5 | 22.5 | 22.5 | 22.5 | 22.5 | 18 | 16 | 14 | 12 | |
| Max. flow (L/min) | cont. | 55 | 60 | 60 | 60 | 60 | 60 | 60 | 60 | 60 | 60 | 60 |
| int. | 60 | 75 | 75 | 75 | 75 | 75 | 75 | 75 | 75 | 75 | 75 | |
| Weight (kg) | 5.6 | 5.6 | 5.7 | 5.9 | 6 | 6.2 | 6.4 | 7 | 6.9 | 7.4 | 8 | |
