Hagglunds Marathon Viking MK Hydraulic Motor
You are here: Home » Products » Hydraulic Motor » HAGGLUNDS Hydraulic Motor » Hagglunds Marathon Viking MK Hydraulic Motor

loading

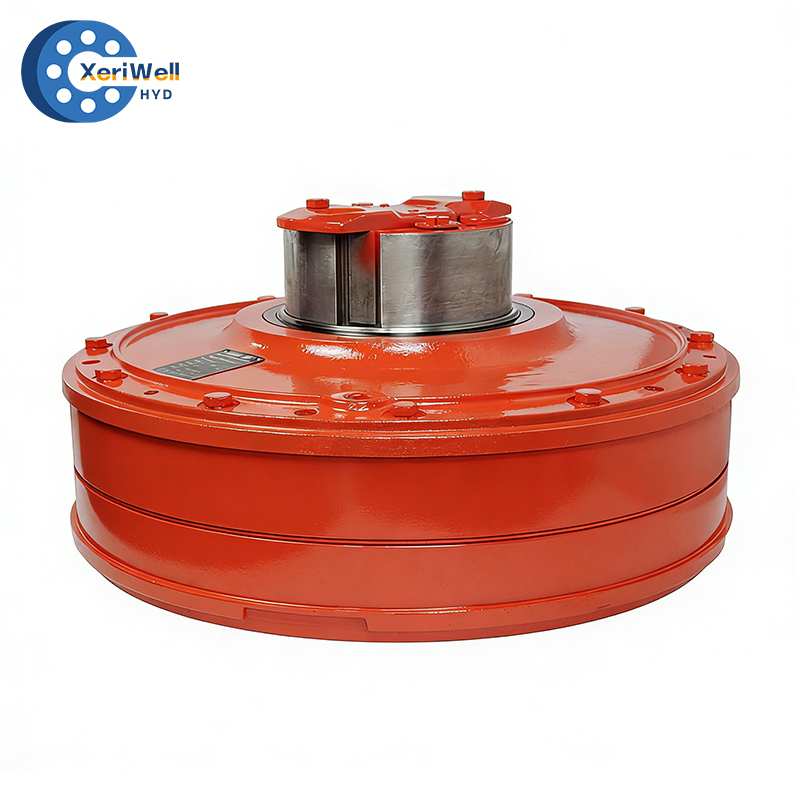

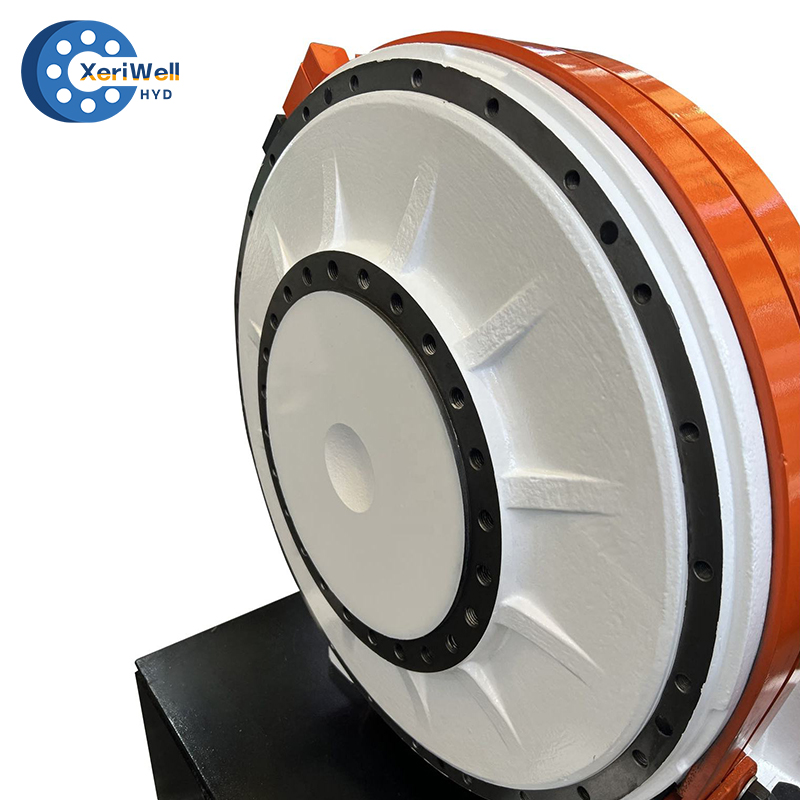

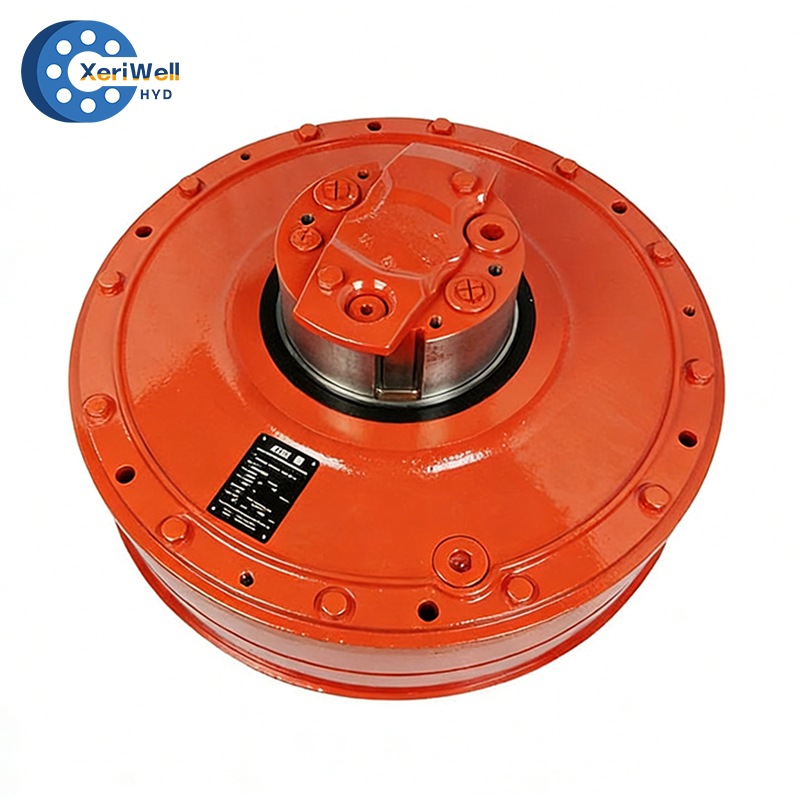

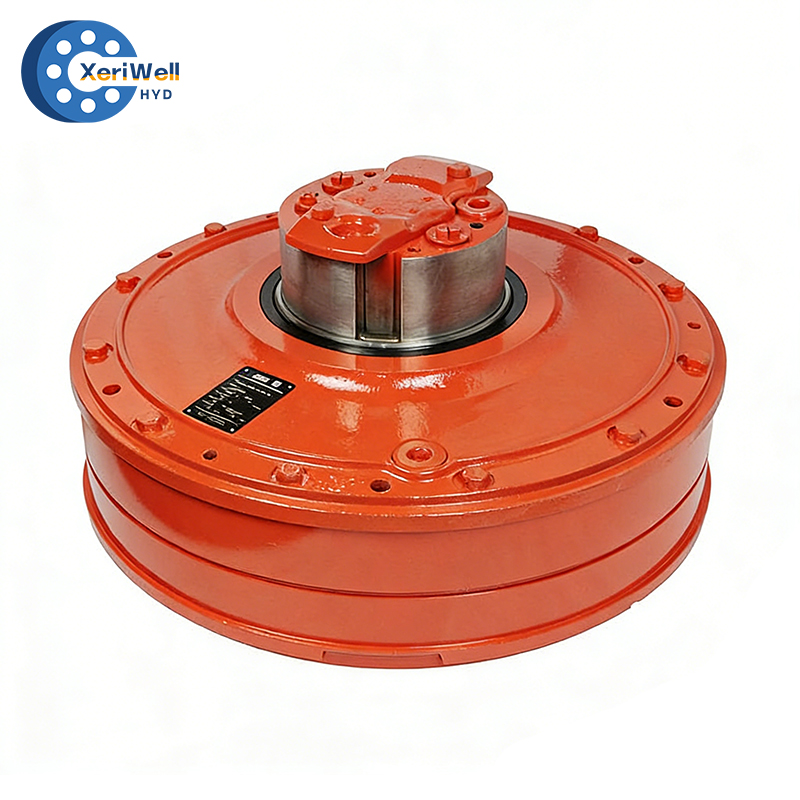

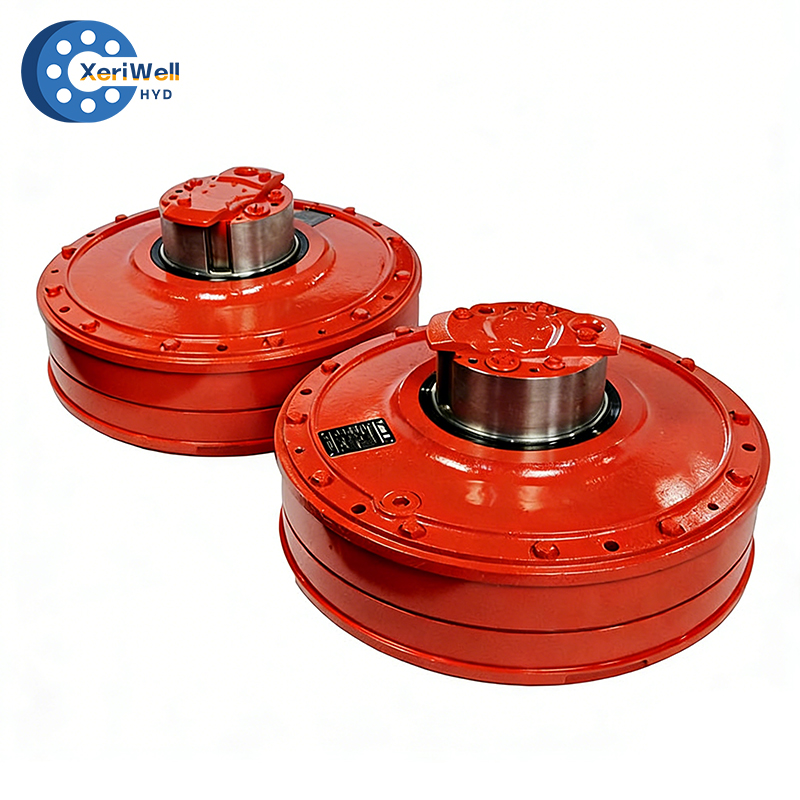

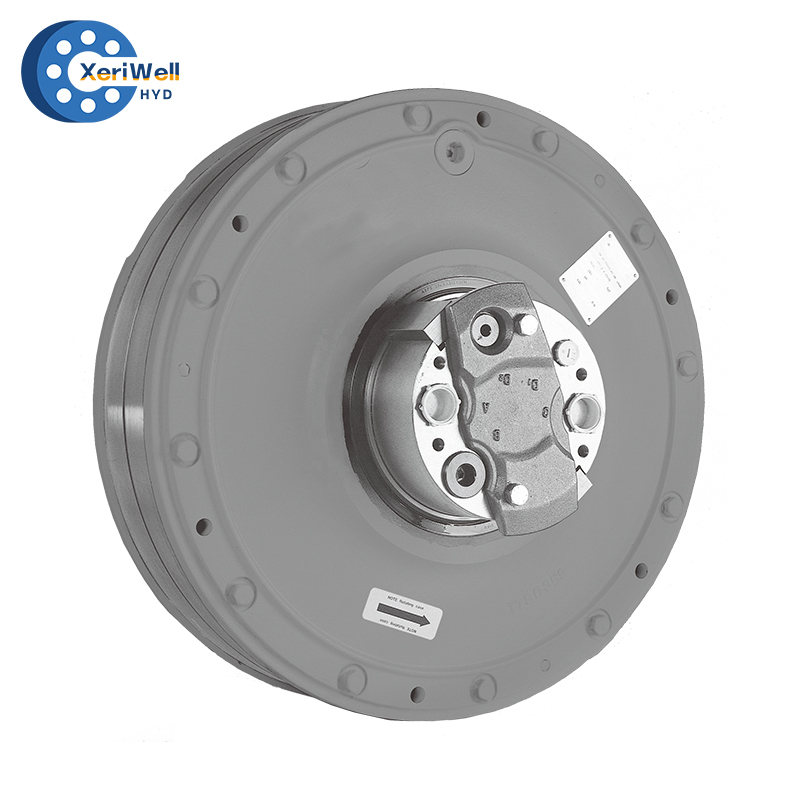

Hagglunds Marathon Viking MK Hydraulic Motor

Pictures are for display only, please contact us to choose the right product for you.
Spare Parts:
On sale
Availability:
Quantity:
Inquire Add to Basket

facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
kakao sharing button
snapchat sharing button
telegram sharing button
sharethis sharing button

  • Viking MK

  • Xeriwell or Others

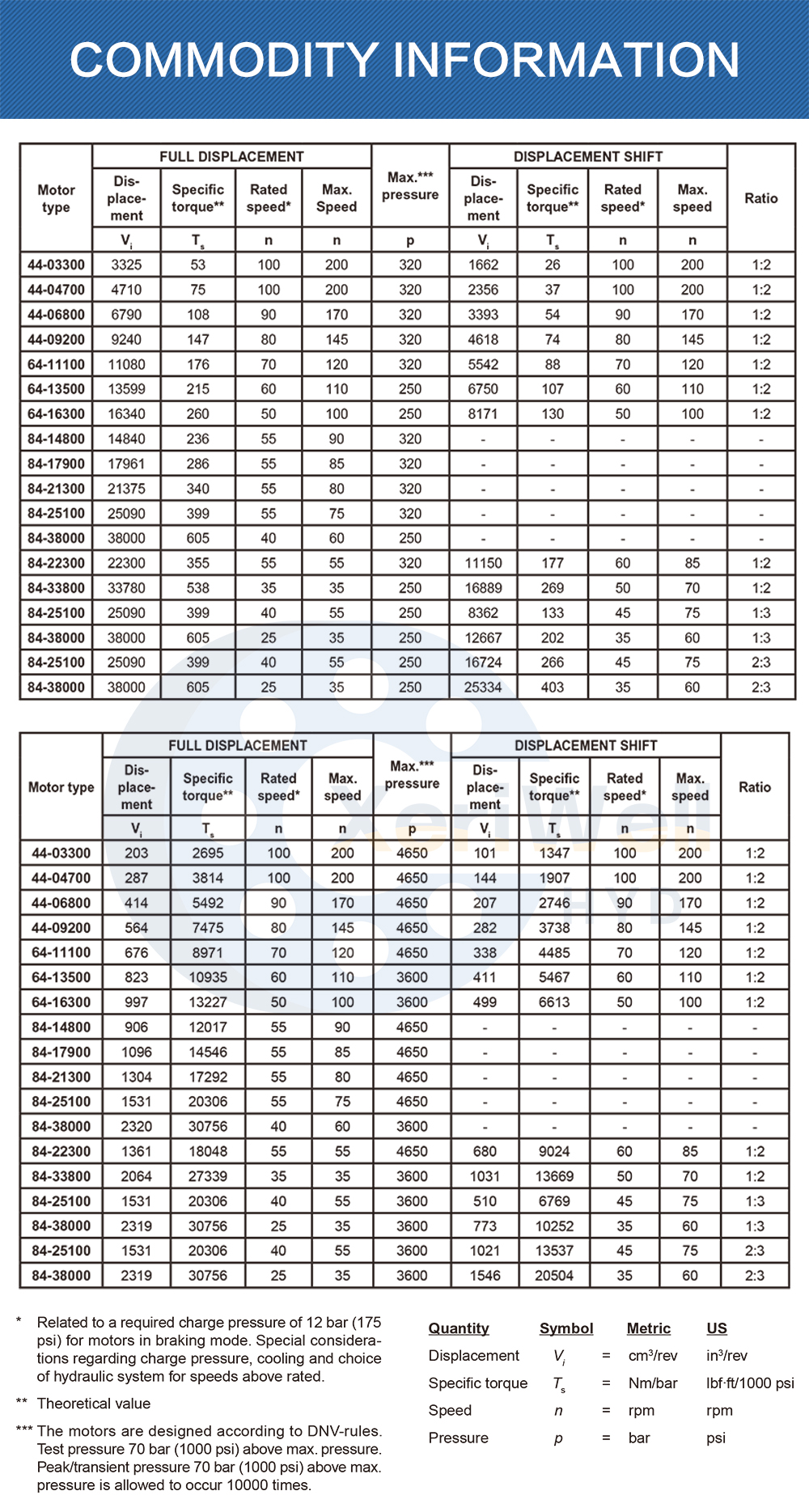

详情图


Motor type FULL DISPLACEMENT Max.*** pressure DISPLACEMENT SHIFT Ratio
Displace- ment Specific torque** Rated speed* Max. Speed Displace- ment Specific torque** Rated speed* Max. speed
Vi Ts n n p Vi Ts n n
44-03300 3325 53 100 200 320 1662 26 100 200 0.043055556
44-04700 4710 75 100 200 320 2356 37 100 200 0.043055556
44-06800 6790 108 90 170 320 3393 54 90 170 0.043055556
44-09200 9240 147 80 145 320 4618 74 80 145 0.043055556
64-11100 11080 176 70 120 320 5542 88 70 120 0.043055556
64-13500 13599 215 60 110 250 6750 107 60 110 0.043055556
64-16300 16340 260 50 100 250 8171 130 50 100 0.043055556
84-14800 14840 236 55 90 320 - - - - -
84-17900 17961 286 55 85 320 - - - - -
84-21300 21375 340 55 80 320 - - - - -
84-25100 25090 399 55 75 320 - - - - -
84-38000 38000 605 40 60 250 - - - - -
84-22300 22300 355 55 55 320 11150 177 60 85 0.043055556
84-33800 33780 538 35 35 250 16889 269 50 70 0.043055556
84-25100 25090 399 40 55 250 8362 133 45 75 0.04375
84-38000 38000 605 25 35 250 12667 202 35 60 0.04375
84-25100 25090 399 40 55 250 16724 266 45 75 0.085416667
84-38000 38000 605 25 35 250 25334 403 35 60 0.085416667
Motor type FULL DISPLACEMENT Max.*** pressure DISPLACEMENT SHIFT Ratio
Displace- ment Specific torque** Rated speed* Max. speed Displace- ment Specific torque** Rated speed* Max. speed
Vi Ts n n p Vi Ts n n
44-03300 203 2695 100 200 4650 101 1347 100 200 0.043055556
44-04700 287 3814 100 200 4650 144 1907 100 200 0.043055556
44-06800 414 5492 90 170 4650 207 2746 90 170 0.043055556
44-09200 564 7475 80 145 4650 282 3738 80 145 0.043055556
64-11100 676 8971 70 120 4650 338 4485 70 120 0.043055556
64-13500 823 10935 60 110 3600 411 5467 60 110 0.043055556
64-16300 997 13227 50 100 3600 499 6613 50 100 0.043055556
84-14800 906 12017 55 90 4650 - - - - -
84-17900 1096 14546 55 85 4650 - - - - -
84-21300 1304 17292 55 80 4650 - - - - -
84-25100 1531 20306 55 75 4650 - - - - -
84-38000 2320 30756 40 60 3600 - - - - -
84-22300 1361 18048 55 55 4650 680 9024 60 85 0.043055556
84-33800 2064 27339 35 35 3600 1031 13669 50 70 0.043055556
84-25100 1531 20306 40 55 3600 510 6769 45 75 0.04375
84-38000 2319 30756 25 35 3600 773 10252 35 60 0.04375
84-25100 1531 20306 40 55 3600 1021 13537 45 75 0.085416667
84-38000 2319 30756 25 35 3600 1546 20504 35 60 0.085416667


Hydraulic

download Hagglunds Viking MK(1).pdf

download Hagglunds Viking MK(2).pdf
