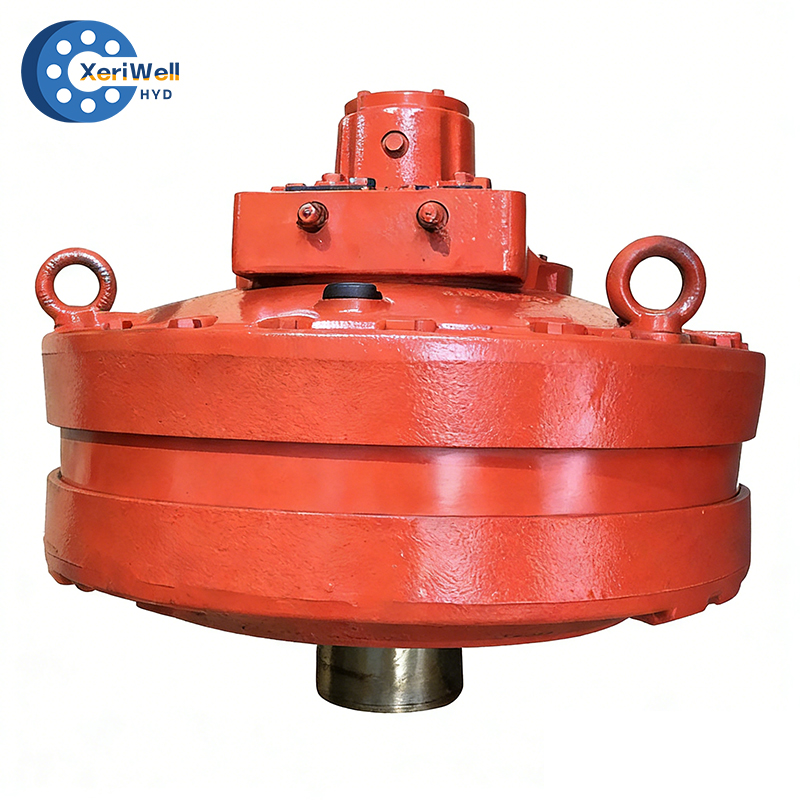

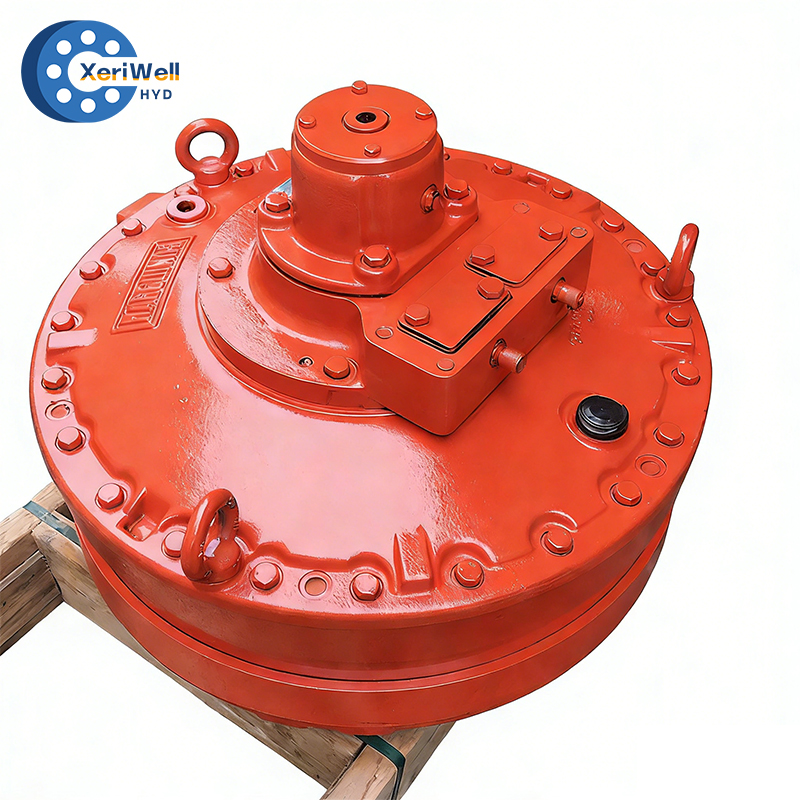

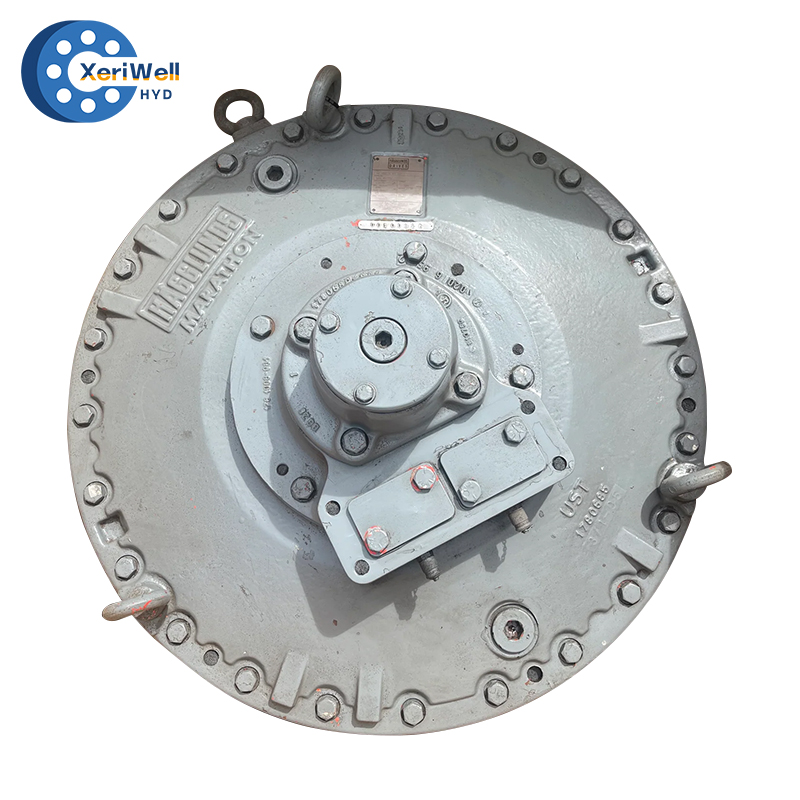

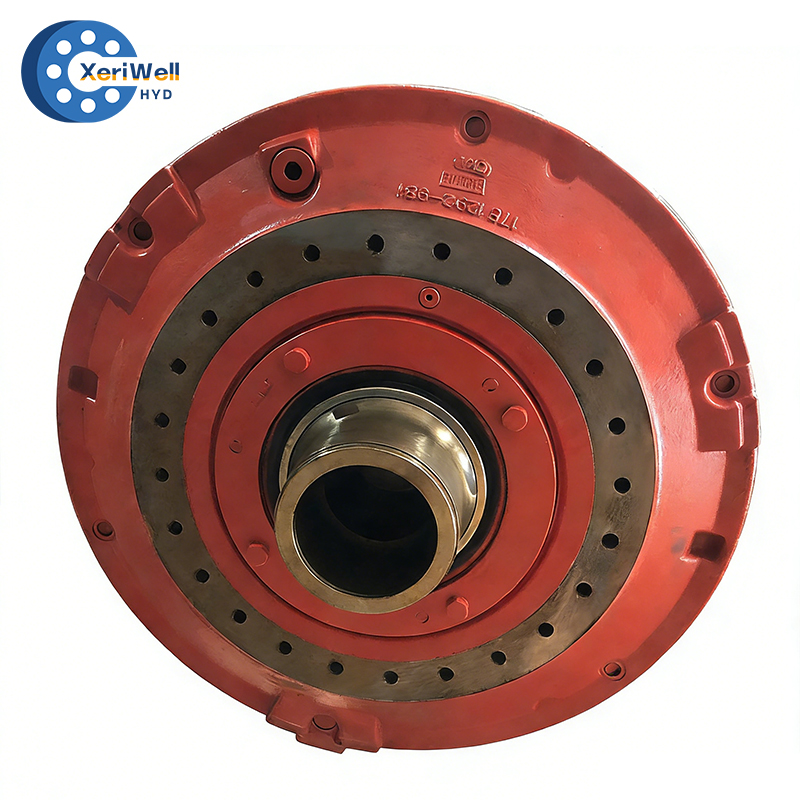

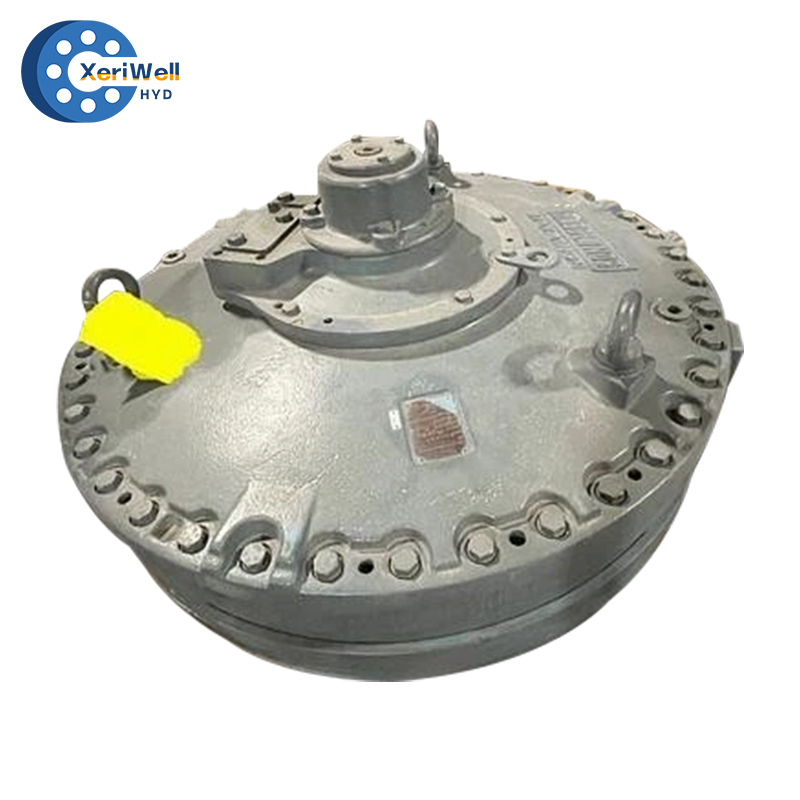

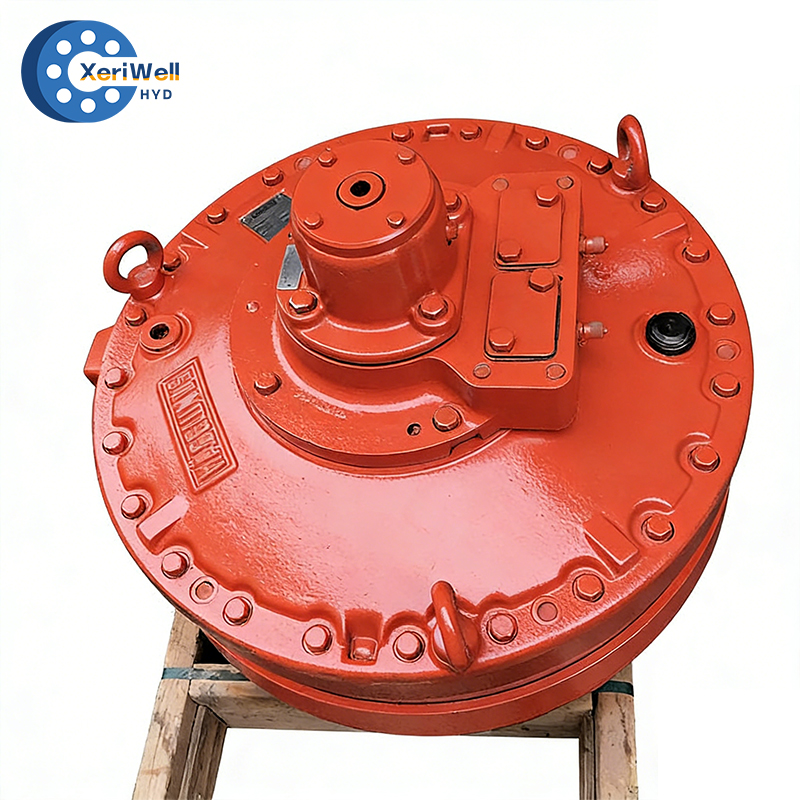

Hagglunds Marathon MA MB Hydraulic Motor

Hagglunds MA MB Hydraulic Motor Product Introduction

The Hagglunds hydraulic motor is a high-torque, low-speed motor designed to meet the demanding needs of heavy-duty applications. With its robust construction and reliable performance, the  motor is commonly used in industries such as material handling, marine, mining, and construction, where precision and power are essential.

Features:

1) High power density

2) Energy efficient

3) Flexibility, many sizes, few mechanical interfaces

4) Insensitive to chock loads

5) No vibrations i.e. no flow pulsation 100% constant displacement, the symmetrical design allows forces to be balanced- radial forces oppose each other and no centrifugal forces due to the rotation

6) Trough hole diameter 45 mm

7) Small footprint (total occupied volume)
