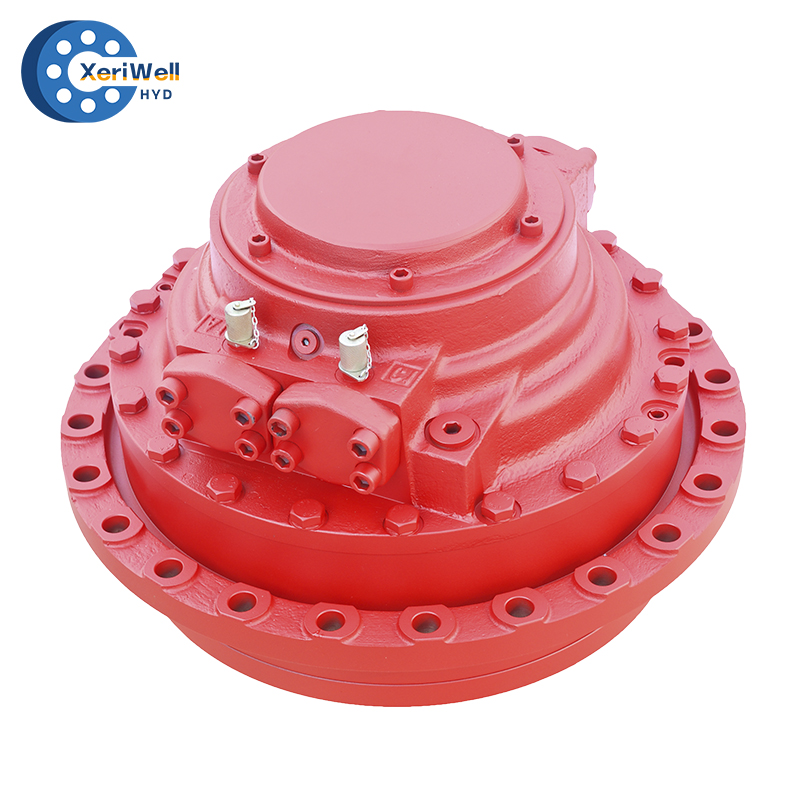

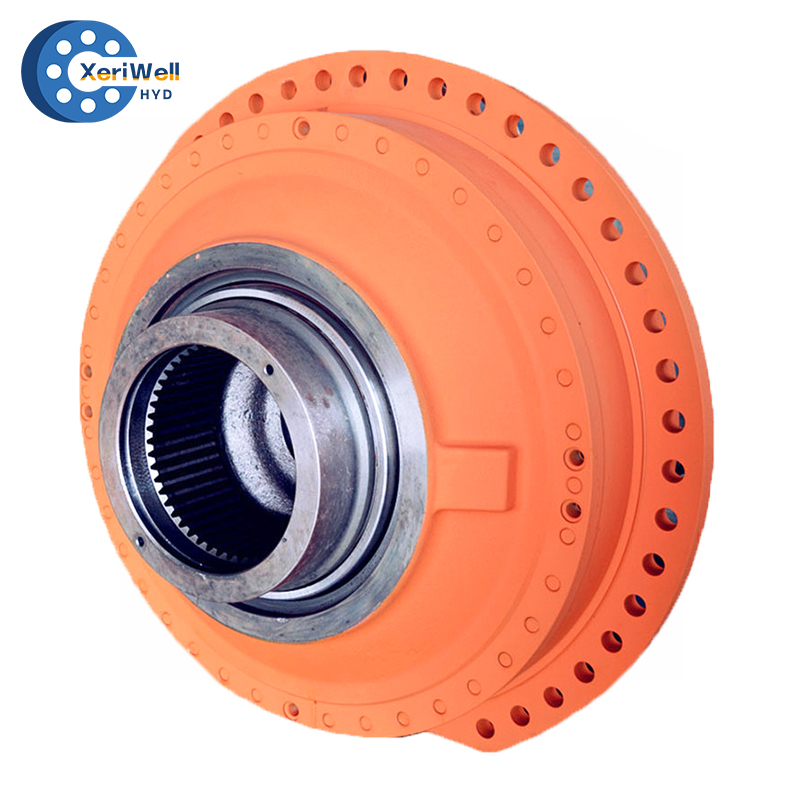

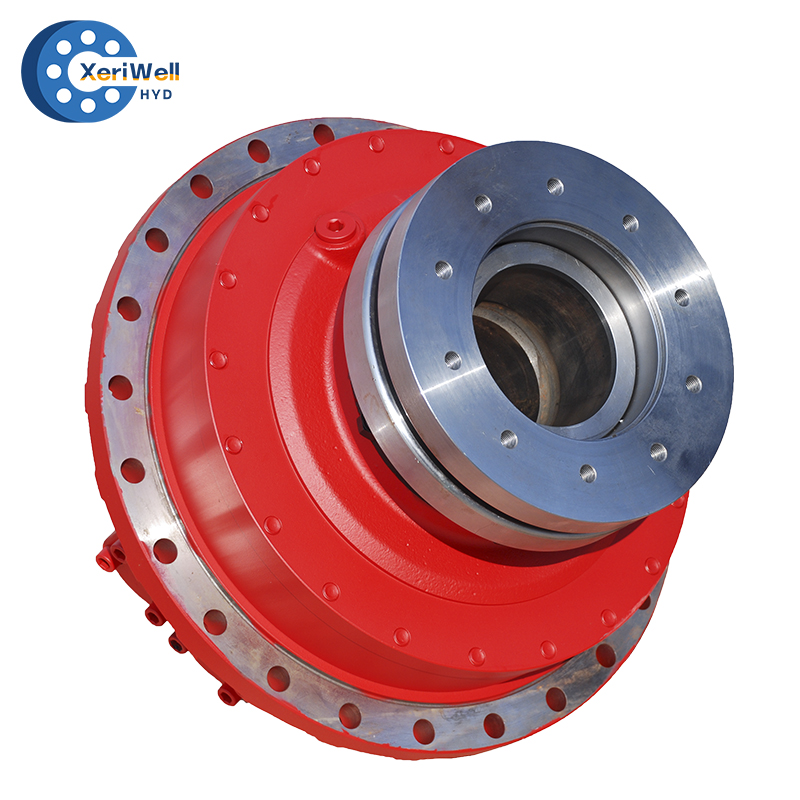

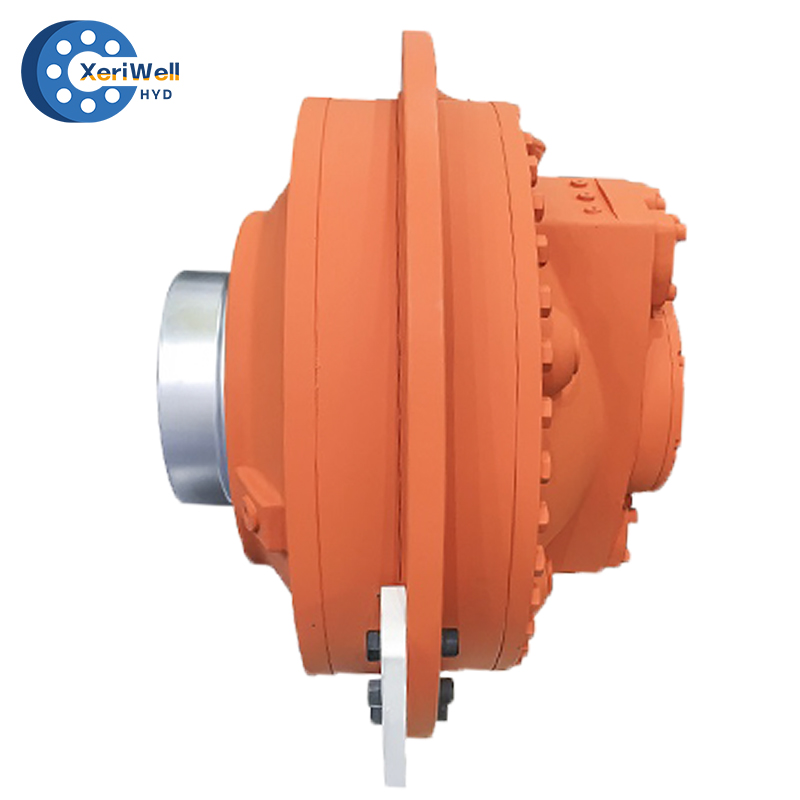

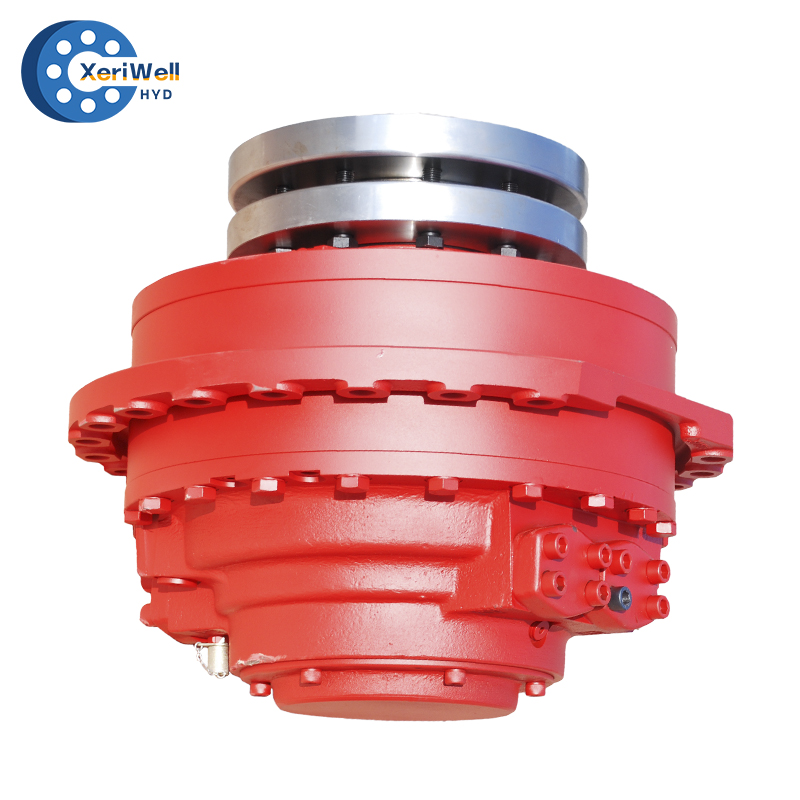

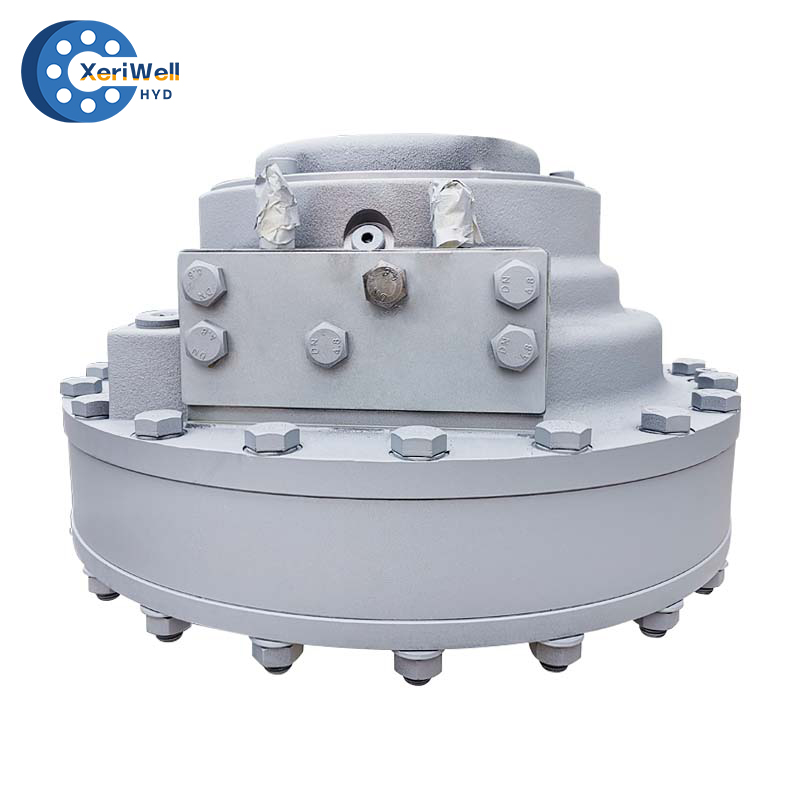

Hagglunds CA series' inner curve piston hydraulic motor is what we design for high-end application. With advantage of hollow rotor, CA motor can be mounted with brake, speed encoder, and some special equipments mounted through the center of motor, according to the user's requirements. It shows its striking features of high pressure endurance, stability at low speed, and high output torque in various inferior working conditions.
Main characteristics:
• Good anti-shock capability and stability;
•Stable speed swtich; brake available;
•Enable free running working condition;
•Multi-mounting options; hollow shaft design;
•Large output torque; wide speed range; directly replace combinated devices of high speed motor and gearbox; compact structure;
• Stable performance in low speed;
• Higher mechanical and volumetric efficiency;
•Reversible rotation;
•Higher power-mass ratio;

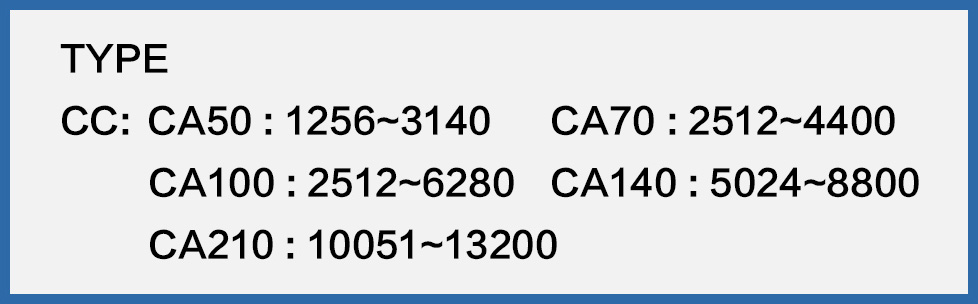

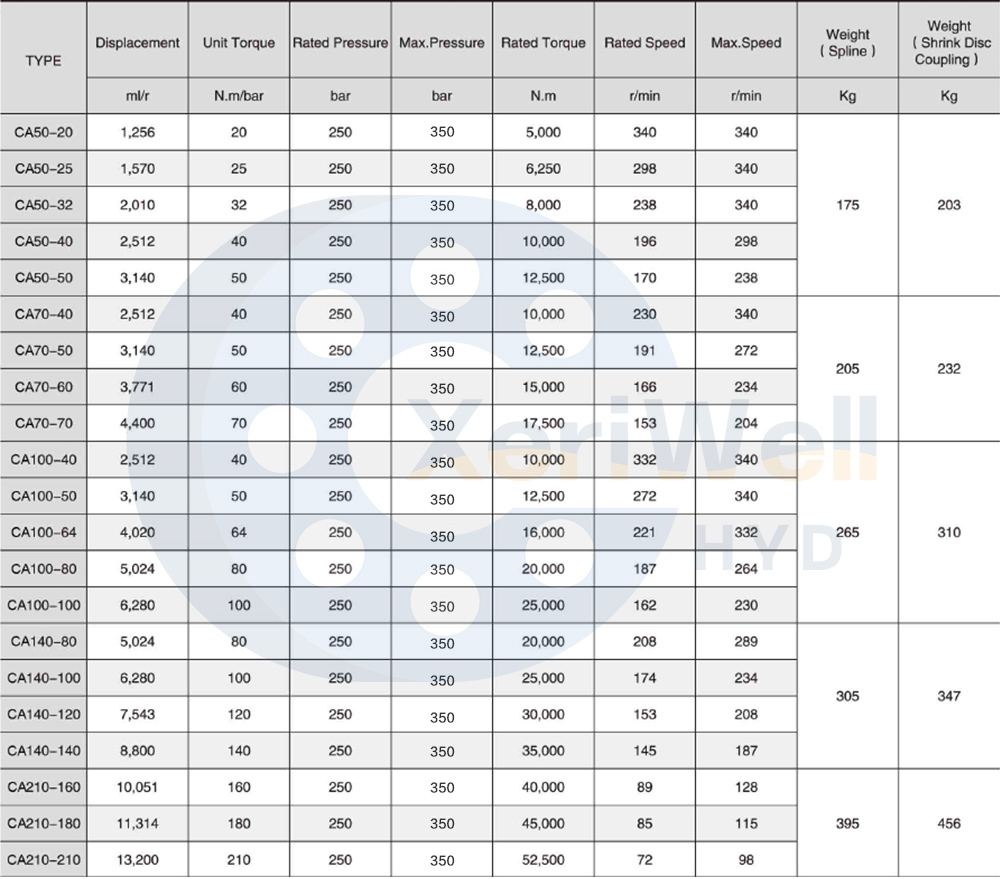

Type: CA50, CA70, CA100, CA140, CA210
Hagglunds CA series' inner curve piston hydraulic motor is what we design for high-end application. With advantage of hollow rotor, CA motor can be mounted with brake, speed encoder, and some special equipments mounted through the center of motor, according to the user's requirements. It shows its striking features of high pressure endurance, stability at low speed, and high output torque in various inferior working conditions.
Main characteristics:
• Good anti-shock capability and stability;
•Stable speed swtich; brake available;
•Enable free running working condition;
•Multi-mounting options; hollow shaft design;
•Large output torque; wide speed range; directly replace combinated devices of high speed motor and gearbox; compact structure;
• Stable performance in low speed;
• Higher mechanical and volumetric efficiency;
•Reversible rotation;
•Higher power-mass ratio;
Type: CA50, CA70, CA100, CA140, CA210
