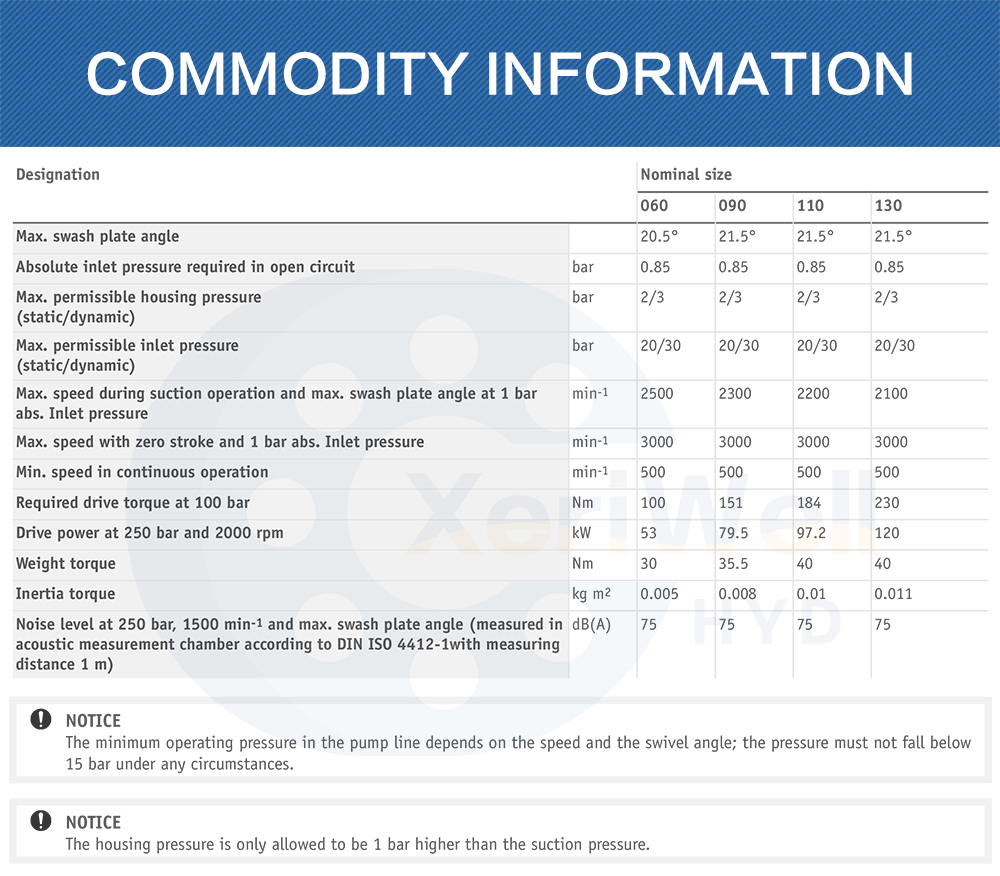

| Designation | Nominal size | ||||
| 60 | 90 | 110 | 130 | ||
| Max. swash plate angle | 20.5° | 21.5° | 21.5° | 21.5° | |
| Absolute inlet pressure required in open circuit | bar | 0.85 | 0.85 | 0.85 | 0.85 |
| Max. permissible housing pressure (static/dynamic) | bar | 46056 | 46056 | 46056 | 46056 |
| Max. permissible inlet pressure (static/dynamic) | bar | 20/30 | 20/30 | 20/30 | 20/30 |
| Max. speed during suction operation and max. swash plate angle at 1 bar abs. Inlet pressure | min-1 | 2500 | 2300 | 2200 | 2100 |
| Max. speed with zero stroke and 1 bar abs. Inlet pressure | min-1 | 3000 | 3000 | 3000 | 3000 |
| Min. speed in continuous operation | min-1 | 500 | 500 | 500 | 500 |
| Required drive torque at 100 bar | Nm | 100 | 151 | 184 | 230 |
| Drive power at 250 bar and 2000 rpm | kW | 53 | 79.5 | 97.2 | 120 |
| Weight torque | Nm | 30 | 35.5 | 40 | 40 |
| Inertia torque | kg m2 | 0.005 | 0.008 | 0.01 | 0.011 |
| Noise level at 250 bar,1500 min-1and max. swash plate angle (measured in acoustic measurement chamber according to DIN ISO 4412-1with measuring distance 1 m) | dB(A) | 75 | 75 | 75 | 75 |
| ! NOTICE The minimum operating pressure in the pump line depends on the speed and the swivel angle;the pressure must not fall below 15 bar under any circumstances. | |||||
| ! NOTICE The housing pressure is only allowed to be 1 bar higher than the suction pressure. | |||||
