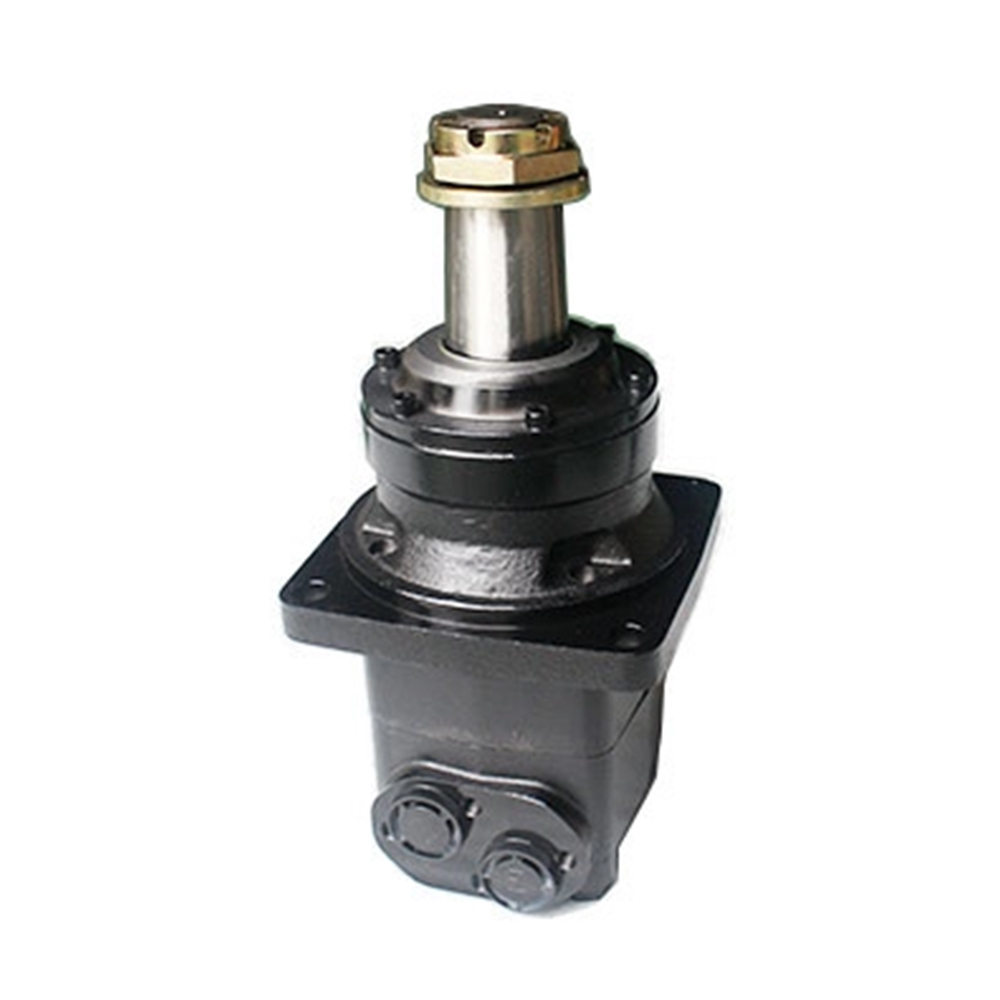

wheel drive motor
Xeriwell or Others
| Material: | Cast Iron /Steel | Application: | Construction Machines, Mine Machines,harvester |
|---|---|---|---|
| Displacement: | 800cc | Max.speed(rpm): | Cont.320rpm/int.380rpm |
| Max.torque(N.m): | Cont.1660N.m/int.1940N.m | Max.pressure Drop: | Cont.18mpa/int.21Mpa |
| Oil Temperature: | Normal-35℃-80℃ | Viscosity: | 42-74mm2/s |
| Highlight: | grape harvester orbital motor,151b3123 orbital motor,omvw 800 orbital motor | ||
Manufacturer: Xeriwell
Type: HYDRAULIC MOTOR
Model: BMVW 800
Geometrical displacement (cm3/r): 801.8
Max. Speed (min-1 [rpm]): 250/300
Max. Torque (Nm [lbf·in]): 1880 [16640]
Max. Output (kW [hp]): 42.5 [57.0]
Max. Oil flow (l/min [USgal/ min]): 200 [52.8]
Max. Inlet pressure (bar [psi]): 210 [3050]
151B3115
151B3116
151B3117
151B3118
151B3119
151B3120
151B3121
151B3122
151B3123
151B3124
Main Specification:
| Type | BMV 315 | BMV 400 | BMV 500 | BMV 630 | BMV 800 | BMV 1000 | |
| Geometric displacement (cm3 /rev.) | 333 | 419 | 518 | 666 | 801 | 990 | |
| Max. speed (rpm) | cont. | 510 | 500 | 400 | 320 | 250 | 200 |
| int. | 630 | 600 | 480 | 380 | 300 | 240 | |
| Max. torque (N·m) | cont. | 920 | 1180 | 1460 | 1660 | 1880 | 2015 |
| int. | 1110 | 1410 | 1760 | 1940 | 2110 | 2280 | |
| peak | 1290 | 1640 | 2050 | 2210 | 2470 | 2400 | |
| Max. output (kW) | cont. | 38 | 47 | 47 | 40 | 33 | 28.6 |
| int. | 46 | 56 | 56 | 56 | 44 | 40 | |
| Max. pressure drop (MPa) | cont. | 20 | 20 | 20 | 18 | 16 | 14 |
| int. | 24 | 24 | 24 | 21 | 18 | 16 | |
| peak | 28 | 28 | 28 | 24 | 21 | 18 | |
| Max. flow (L/min) | cont. | 160 | 200 | 200 | 200 | 200 | 200 |
| int. | 200 | 240 | 240 | 240 | 240 | 240 | |
| Weight (kg) | 31.8 | 32.6 | 33.5 | 34.9 | 36.5 | 38.6 | |
