| Quantity: | |
|---|---|
300160A9123BAAAB
Xeriwell or Others

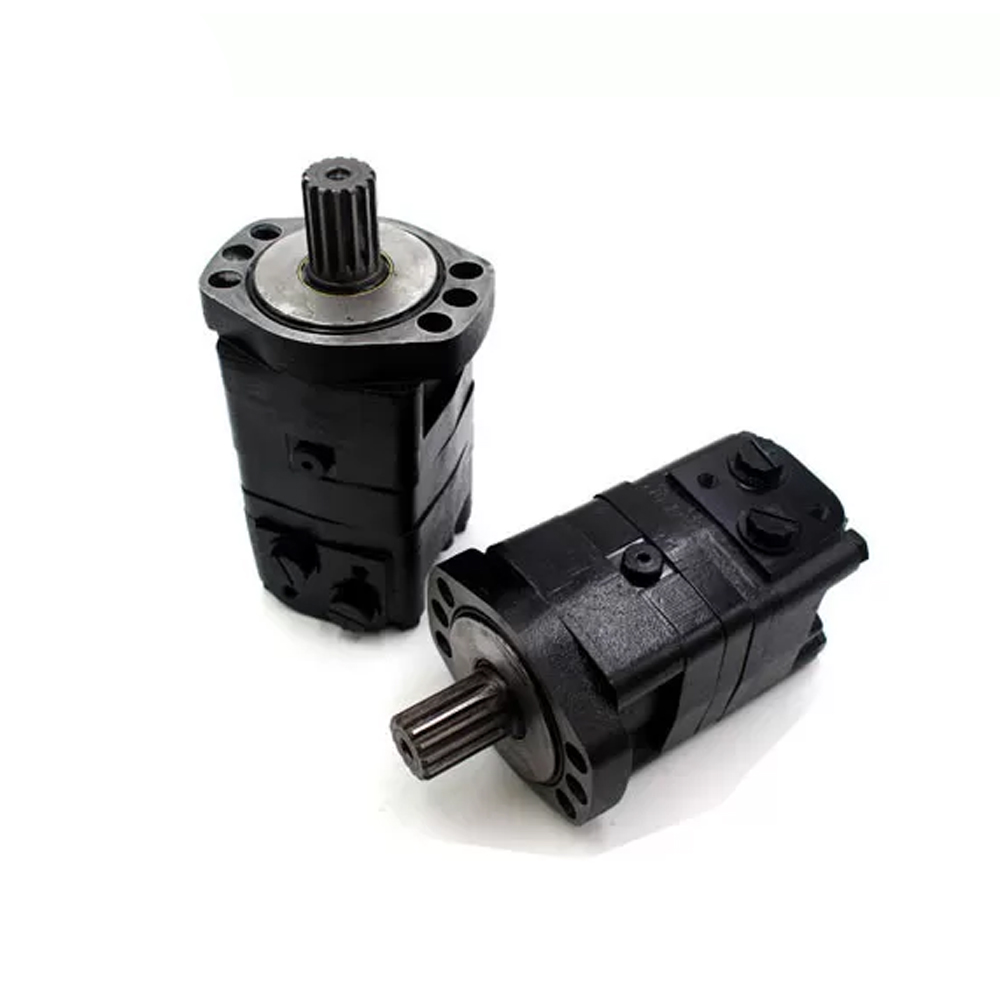

| Item: | Orbit Hydraulic Motor | OEM #: | 300160A9123BAAAB |
|---|---|---|---|
| Manufacturer: | Xeriwell | Displacement: | 160 Ml/r |

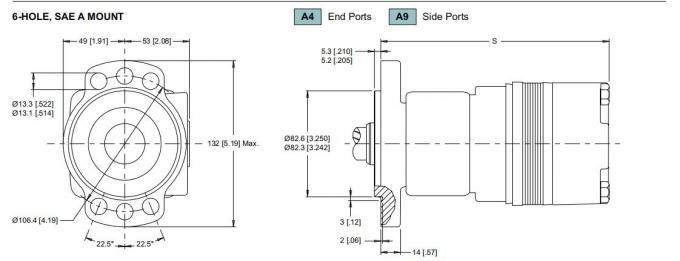

| Mounting Flange: | 6-hole Wheel Flange | Shaft Type: | Spline |
| Highlight: | grain augers eaton orbit motor,spreaders eaton orbit motor,feed rollers eaton orbit motor | ||
White HB similar Wheel drives for grain augers, spreaders and feed rollers
This is a light duty drive engines which is compatible with White HB series. It widely used on conveyors, carwashes, positioners, light-duty wheel drives, sweepers, machine tool indexers, grain augers, spreaders, feed rollers, screw drives, brush drives and more.
Specification:
| Code | Displacement | Max. Speed | Max. Flow |
| cm3(in3/r) | rpm | lpm(gpm) | |
| 050 | 52 [3.2] | 680 830 | 38 [10] 45 [12] |
| 080 | 76 [4.6] | 800 950 | 53 [14] 64 [17] |
| 090 | 89[5.4] | 680 840 | 61 [16] 76 [20] |
| 110 | 111[6.8] | 680 850 | 76 [20] 95 [25] |
| 125 | 127 [7.7] | 580 740 | 76 [20] 95 [25] |
| 160 | 164 [10.0] | 460 580 | 76 [20] 95 [25] |
| 200 | 205 [12.5] | 370 460 | 76 [20] 95 [25] |
| 250 | 254[15.5] | 290 370 | 76 [20] 95 [25] |
| 300 | 293[17.9] | 250 320 | 76 [20] 95 [25] |
| 400 | 409[24.9] | 180 230 | 76 [20] 95 [25] |
Overview:
The Series motor is the leader in its class, offering high efficiency and durability. It produce high overall efficiencies over a wide range of operating conditions. The standard drain increases shaft seal life by reducing internal pressures experienced by the seal. oil leakage is also directed across all driveline components, increasing motor life. An internal drain option is also available. At the heart of the motor is a heavy-duty drivelink, offering 30% more torque capacity than competitive designs. These features make the drive motor the preferred choice for applications requiring peak efficiency for continuous operation.
