Grain Augers Drive Ws 350 Series Danfoss Motors Replacement For Agricultural Equipment

Pictures are for display only, please contact us to choose the right product for you.
Availability:
Quantity:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
kakao sharing button
snapchat sharing button
telegram sharing button
sharethis sharing button
  • 350230A7120ALAAC

  • Xeriwell or Others

Item: Orbit Hydraulic Motor OEM #: 350230A7120ALAAC
Manufacturer: Xeriwell Displacement: 230 Ml/r
Mounting Flange: 2-hole Wheel Flange Shaft Type: Straight
Highlight:

grain augers drive danfoss motors

,

ws 350 series danfoss motors

,

ws 350 series danfoss hydraulic motor

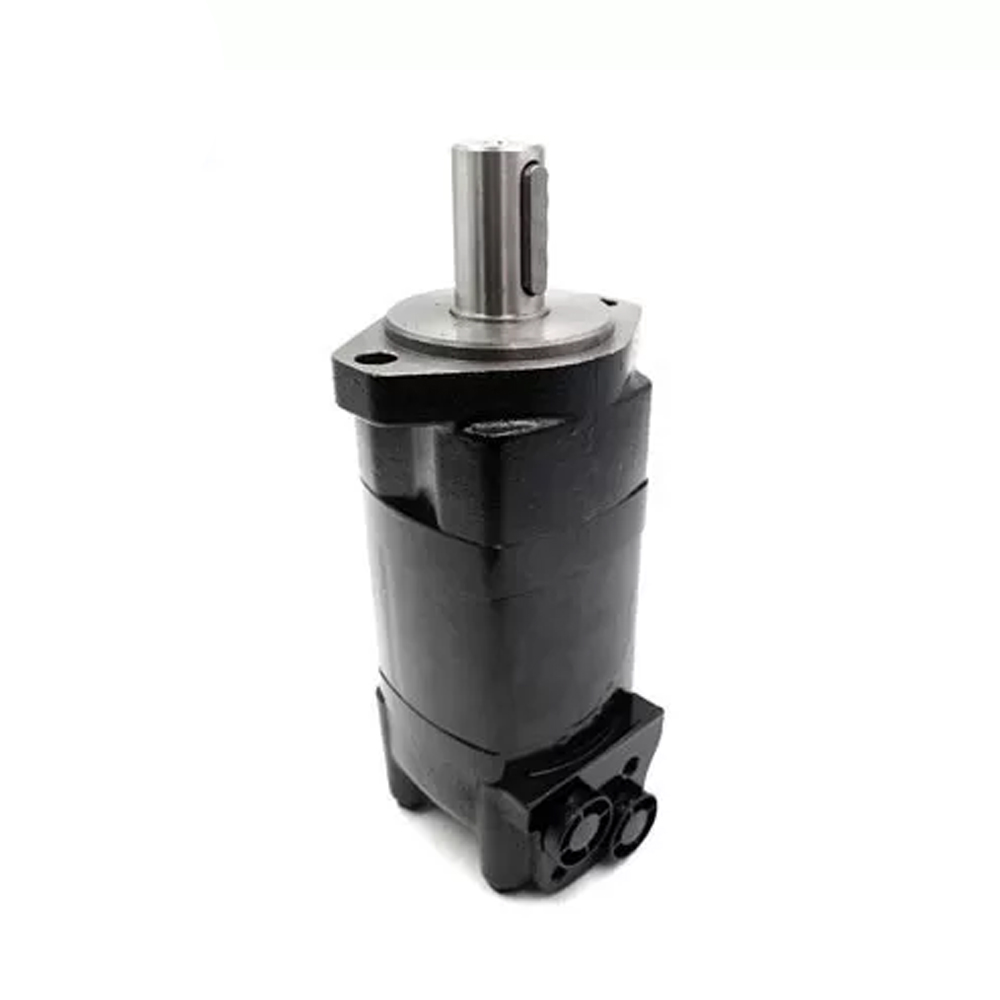

Grain Augers Drive Motor, DANFOSS Drive Motors WS 350 Series Replacement for Agricultural Equipment

This is a replacement hydraulic motor of DANFOSS 11210630 WS 350 series 350230A7120ALAACS 350230A7120ALAAC. It's apply to medium-duty wheel drives, sweepers, grain augers, spreaders, feed rollers, brush drives, mowers, harvesting equipment gear box mounts and more.

Quick Review:

Model Number 350230A7120ALAAC
Displacement  cm3 [in3/rev] 228 [13.92]
Max. Speed  rpm   cont. inter. 325 490
Max. Flow lpm [gpm] cont. inter. 76 [20] 114 [30]
Max. Torque Nm [lb-in] cont. inter. 642 [5685] 806 [7135]
Rotation Clockwise Rotation

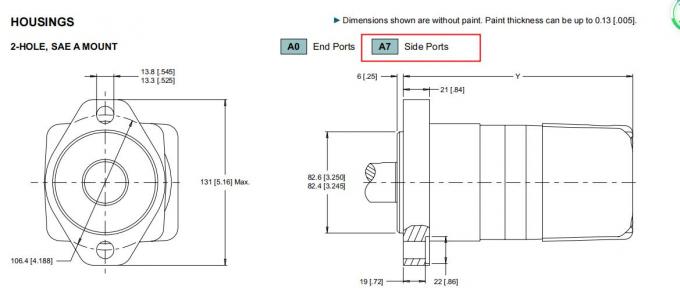

Mounting 2-Hole, SAE A Mount
MISCELLANEOUS OPTION Freeturning Rotor

.

This hydraulic motor targets agricultural equipment, skid steer attachments, and other applications that require greater torque under demanding conditions. A distinguishing feature of this hydraulic motor in relation to competitive products is its heavy duty drive link with a larger pitch diameter. This enables the motors to better withstand pressure and torque spikes and is reflected in its intermittent and peak performance ratings. Additional product features include a three zone commutator valve, heavy-duty tapered roller bearings, and drain with integral internal drain*. The hydraulic motor offers numerous housing, displacement and shaft options to meet most common SAE and European requirements.

Contact us for more infos.
