BMK2-160-E2-T4-SU
Xeriwell or Others
| Features: | Danfoss Eaton Charlynn 2000 Series Interchangeable | Product: | Gerotor Hydraulic Motors |
|---|---|---|---|
| Model No.: | BMK2-160-E2-T4-SU | Size: | 160 Ml/r |
| Flange: | 2× Φ13.5 Rhomb-flange Φ106.4, Pilot Φ82.5×6.4 | Shaft: | Cone-shaft Φ31.75 , Parllel Key 7.96×7.96×25.4 |
| Rotation: | Clockwise | Port: | 7/8-14UNF O-ring,7/16-20 UN |
| Highlight: | BMK2 Gerotor Hydraulic Motors,160 ML/R Gerotor Hydraulic Motors,2000 Series Char Lynn Gerotor Motor | ||

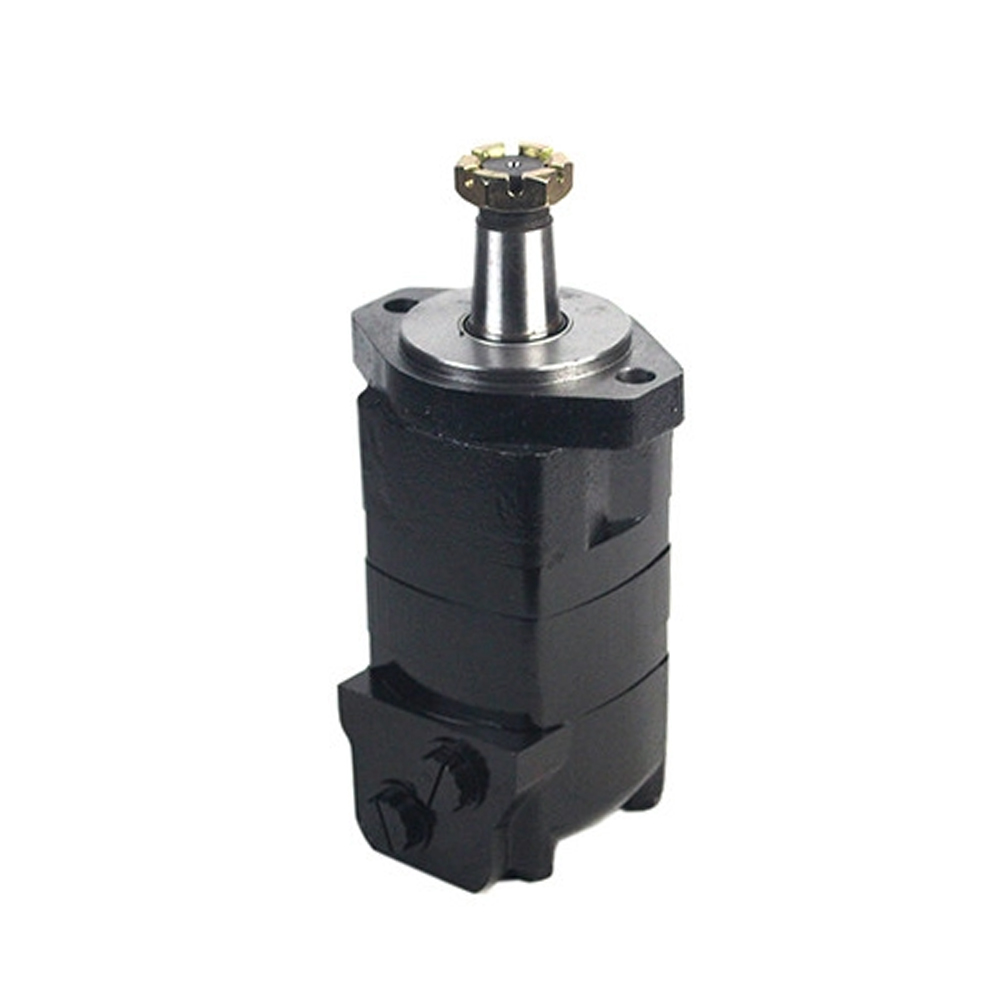

Gerotor Hydraulic Motors BMK2 Danfoss Eaton Charlynn 2000 series interchangeable Hydraulic Motors
Quick review:
Xeriwell BMK2 = Danfoss Eaton Charlynn 2000 series
Model Number:
BMK2-160-E2-T4-SU
Details:
| Product | Gerotor Hydraulic Motors |
| Model No. | BMK2-160-E2-T4-SU |
| Size | 160 ml/r |
| Flange | 2× Φ13.5 Rhomb-flange Φ106.4, pilot Φ82.5×6.4 |
| Shaft | Cone-shaft Φ31.75 , parllel key 7.96×7.96×25.4 |
| Rotation | CCW |
| Port | 7/8-14UNF O-ring,7/16-20 UN |
| Features | Danfoss Eaton Charlynn 2000 series interchangeable |
Specification:
| Main Specifications: | |||||||||||
| Type | BMK2 | BMK2 | BMK2 | BMK2 | BMK2 | BMK2 | BMK2 | BMK2 | BMK2 | BMK2 | |
| 65 | 80 | 100 | 125 | 160 | 200 | 250 | 315 | 400 | 475 | ||
| Geometric displacement (cm3 /rev.) | 65 | 80 | 100.9 | 129.8 | 156.8 | 193.4 | 242.5 | 304.3 | 390.8 | 485 | |
| Max. speed (rpm) | cont. | 835 | 800 | 742 | 576 | 477 | 385 | 308 | 246 | 191 | 153 |
| int. | 990 | 980 | 924 | 720 | 713 | 577 | 462 | 365 | 287 | 230 | |
| Max. torque (N·m) | cont. | 185 | 235 | 295 | 385 | 455 | 540 | 660 | 765 | 775 | 845 |
| int. | 245 | 345 | 445 | 560 | 570 | 665 | 820 | 885 | 925 | 930 | |
| Max. pressure drop (MPa) | cont. | 20.5 | 21 | 21 | 21 | 20.5 | 20.5 | 20.5 | 21 | 15.5 | 12 |
| int. | 27.5 | 31 | 31 | 31 | 26 | 26 | 26 | 24 | 17 | 14 | |
| peak | 31 | 31 | 31 | 31 | 31 | 31 | 31 | 31 | 20.5 | 17 | |
| Max. flow (L/min) | cont. | 55 | 65 | 75 | 75 | 75 | 75 | 75 | 75 | 75 | 75 |
| int. | 65 | 80 | 95 | 95 | 115 | 115 | 115 | 115 | 115 | 115 | |
| Weight (kg) | 9.2 | 9.4 | 9.7 | 10 | 10.2 | 10.5 | 11 | 11.5 | 12 | 12.4 | |
| * Continuous pressure :Max. value of operating motor continuously. | |||||||||||
| * Intermittent pressure :Max. value of operating motor in 6 seconds per minute. | |||||||||||
| * Peak pressure:Max. value of operating motor in 0.6 second per minute. | |||||||||||
The BMK2 series motor adapts the GEROLER gear set design with high speed distribution flow and high pressure. These motors can be supplied with various options for multifunctional operations in accordance with the application requirements. These low weight advanced construction design motors are manufactured in accordance with the requirements of ISO 9001-2000 quality system.
More BMK2 series to match Danfoss Eaton Charlynndrive motors
J (129-)
H (101-)
S (103-)
T (158-)
W (162-)
2000 (104-, 105-, 106-, 193-)
4000 (109-, 110-, 111-)
6000 (112-, 113-, 114-)
10000 ( 119-)
| Features: | Danfoss Eaton Charlynn 2000 Series Interchangeable | Product: | Gerotor Hydraulic Motors |
|---|---|---|---|
| Model No.: | BMK2-160-E2-T4-SU | Size: | 160 Ml/r |
| Flange: | 2× Φ13.5 Rhomb-flange Φ106.4, Pilot Φ82.5×6.4 | Shaft: | Cone-shaft Φ31.75 , Parllel Key 7.96×7.96×25.4 |
| Rotation: | Clockwise | Port: | 7/8-14UNF O-ring,7/16-20 UN |
| Highlight: | BMK2 Gerotor Hydraulic Motors,160 ML/R Gerotor Hydraulic Motors,2000 Series Char Lynn Gerotor Motor | ||
Gerotor Hydraulic Motors BMK2 Danfoss Eaton Charlynn 2000 series interchangeable Hydraulic Motors
Quick review:
Xeriwell BMK2 = Danfoss Eaton Charlynn 2000 series
Model Number:
BMK2-160-E2-T4-SU
Details:
| Product | Gerotor Hydraulic Motors |
| Model No. | BMK2-160-E2-T4-SU |
| Size | 160 ml/r |
| Flange | 2× Φ13.5 Rhomb-flange Φ106.4, pilot Φ82.5×6.4 |
| Shaft | Cone-shaft Φ31.75 , parllel key 7.96×7.96×25.4 |
| Rotation | CCW |
| Port | 7/8-14UNF O-ring,7/16-20 UN |
| Features | Danfoss Eaton Charlynn 2000 series interchangeable |
Specification:
| Main Specifications: | |||||||||||
| Type | BMK2 | BMK2 | BMK2 | BMK2 | BMK2 | BMK2 | BMK2 | BMK2 | BMK2 | BMK2 | |
| 65 | 80 | 100 | 125 | 160 | 200 | 250 | 315 | 400 | 475 | ||
| Geometric displacement (cm3 /rev.) | 65 | 80 | 100.9 | 129.8 | 156.8 | 193.4 | 242.5 | 304.3 | 390.8 | 485 | |
| Max. speed (rpm) | cont. | 835 | 800 | 742 | 576 | 477 | 385 | 308 | 246 | 191 | 153 |
| int. | 990 | 980 | 924 | 720 | 713 | 577 | 462 | 365 | 287 | 230 | |
| Max. torque (N·m) | cont. | 185 | 235 | 295 | 385 | 455 | 540 | 660 | 765 | 775 | 845 |
| int. | 245 | 345 | 445 | 560 | 570 | 665 | 820 | 885 | 925 | 930 | |
| Max. pressure drop (MPa) | cont. | 20.5 | 21 | 21 | 21 | 20.5 | 20.5 | 20.5 | 21 | 15.5 | 12 |
| int. | 27.5 | 31 | 31 | 31 | 26 | 26 | 26 | 24 | 17 | 14 | |
| peak | 31 | 31 | 31 | 31 | 31 | 31 | 31 | 31 | 20.5 | 17 | |
| Max. flow (L/min) | cont. | 55 | 65 | 75 | 75 | 75 | 75 | 75 | 75 | 75 | 75 |
| int. | 65 | 80 | 95 | 95 | 115 | 115 | 115 | 115 | 115 | 115 | |
| Weight (kg) | 9.2 | 9.4 | 9.7 | 10 | 10.2 | 10.5 | 11 | 11.5 | 12 | 12.4 | |
| * Continuous pressure :Max. value of operating motor continuously. | |||||||||||
| * Intermittent pressure :Max. value of operating motor in 6 seconds per minute. | |||||||||||
| * Peak pressure:Max. value of operating motor in 0.6 second per minute. | |||||||||||
The BMK2 series motor adapts the GEROLER gear set design with high speed distribution flow and high pressure. These motors can be supplied with various options for multifunctional operations in accordance with the application requirements. These low weight advanced construction design motors are manufactured in accordance with the requirements of ISO 9001-2000 quality system.
More BMK2 series to match Danfoss Eaton Charlynndrive motors
J (129-)
H (101-)
S (103-)
T (158-)
W (162-)
2000 (104-, 105-, 106-, 193-)
4000 (109-, 110-, 111-)
6000 (112-, 113-, 114-)
10000 ( 119-)
