| Quantity: | |
|---|---|
BMK10
Xeriwell or Others
| Features: | Char-Lynn 10000 Series Interchangeable | Product: | Gerotor Hydraulic Motors |
|---|---|---|---|
| Model No.: | BMK10 | Size: | 940 Ml/r |
| Flange: | 4 Bolt; 127.0 | Shaft: | 57.15mm, Straight Shaft |
| Rotation: | Clockwise | Port: | 31.75 Mm Port |
| Highlight: | Char Lynn 10000 Gerotor Hydraulic Motors,940CC Gerotor Hydraulic Motors,119-1043 Char Lynn 10000 Series Motors | ||

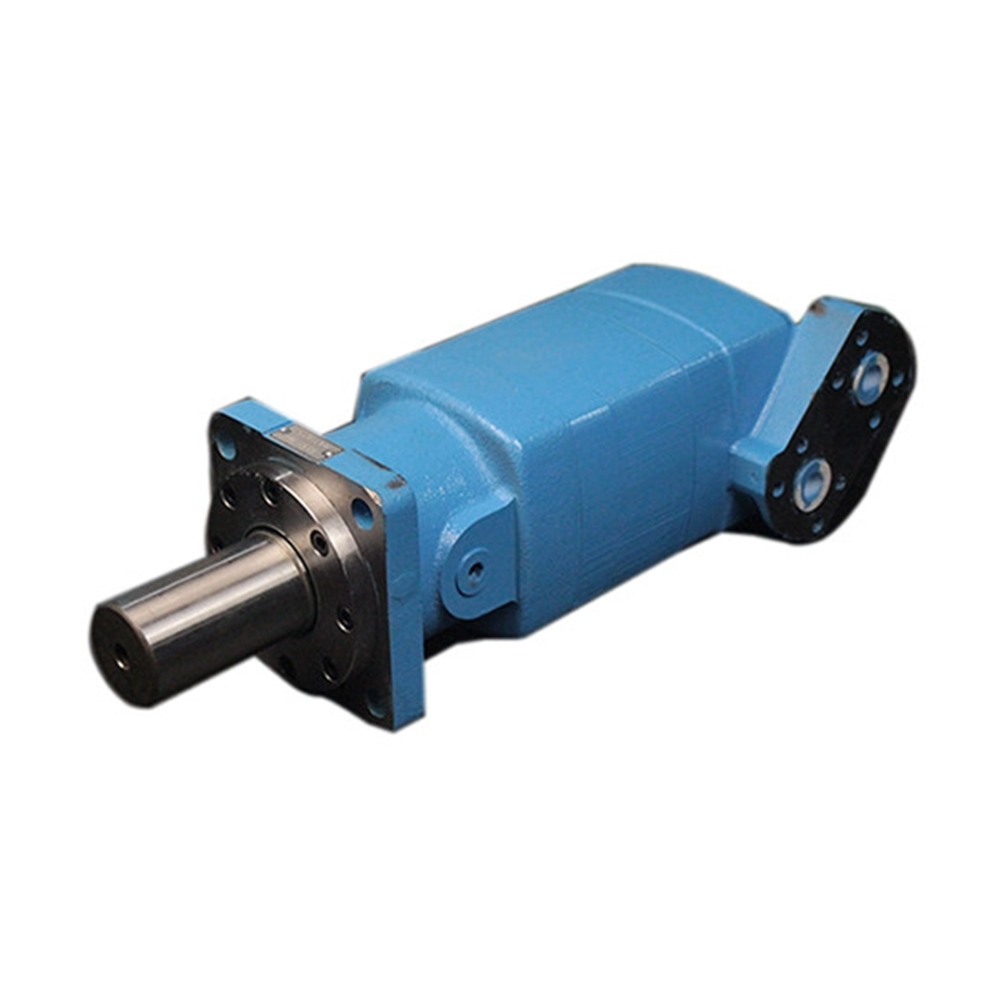

Gerotor Hydraulic Motors 119-1043 Char-Lynn 10000 series interchangeable 940cc
Quick review:
Xeriwell BMK10 = Danfoss Eaton Charlynn 10000 series
Model Number:
BMK10-940
Details:
| Product | Gerotor Hydraulic Motors |
| Model No. | BMK10 |
| Size | 940 ml/r |
| Flange | 4 Bolt; 127.0 |
| Shaft | 57.15mm, Straight shaft |
| Rotation | CCW |
| Port | 31.75 mm Port |
| Features | Char-Lynn 10000 series interchangeable |
Specification:
Main Specification
| Type | BMK10 350 | BMK10 480 | BMK10 665 | BMK10 940 | |
| Geometric displacement (cm3 /rev.) | 351 | 479 | 638 | 933 | |
| Max.speed (rpm) | cont. | 500 | 350 | 250 | 178 |
| int. | 790 | 560 | 400 | 280 | |
| Max.torque (N•m) | cont. | 1050 | 1480 | 2080 | 2750 |
| int. | 1400 | 1980 | 2600 | 3400 | |
| Max.pressure drop (MPa) | cont. | 20.5 | 20.5 | 20.5 | 19 |
| int. | 27.5 | 27.5 | 26 | 24 | |
| Max.flow (L/min) | cont. | 170 | 170 | 170 | 170 |
| int. | 265 | 265 | 265 | 265 | |
*Continuous pressure:Max.value of operating motor continuously.
*Intermittent pressure:Max.value of operating motor in 6 seconds per minute .
*Peak pressure:Max.value of operating motor in 0.6 second per minute.
We provide Char-Lynn Eaton Hydraulic Motor 10,000 Series aftermarket types. These hydraulic motors are very Low speed, high torque hydraulic motors. Long life under extreme operating conditions. The BMK10 series motor adapts the GEROLER gear set design with high speed distribution flow and high pressure. These motors can be supplied with various options for multifunctional operations in accordance with the application requirements. These low weight advanced construction design motors are manufactured in accordance with the requirements of ISO 9001-2000 quality system.
More BMK10 series to match Danfoss Eaton Charlynndrive motors
J (129-)
H (101-)
S (103-)
T (158-)
W (162-)
2000 (104-, 105-, 106-, 193-)
4000 (109-, 110-, 111-)
6000 (112-, 113-, 114-)
10000 ( 119-)
