| Quantity: | |
|---|---|
104-3154-006
Xeriwell or Others
| Item: | Orbit Hydraulic Motor | Model: | 104-3154-006 |
|---|---|---|---|
| Fastening: | 2 Bolt | Displacement: | 400 CM3/R |
| Shaft: | 14 TOOTH | Port: | Staggered Ports |
| Highlight: | 104-3154-006 orbit hydraulic motor,geroler disc valve hydraulic motor,104-3154-006 disc valve hydraulic motor | ||

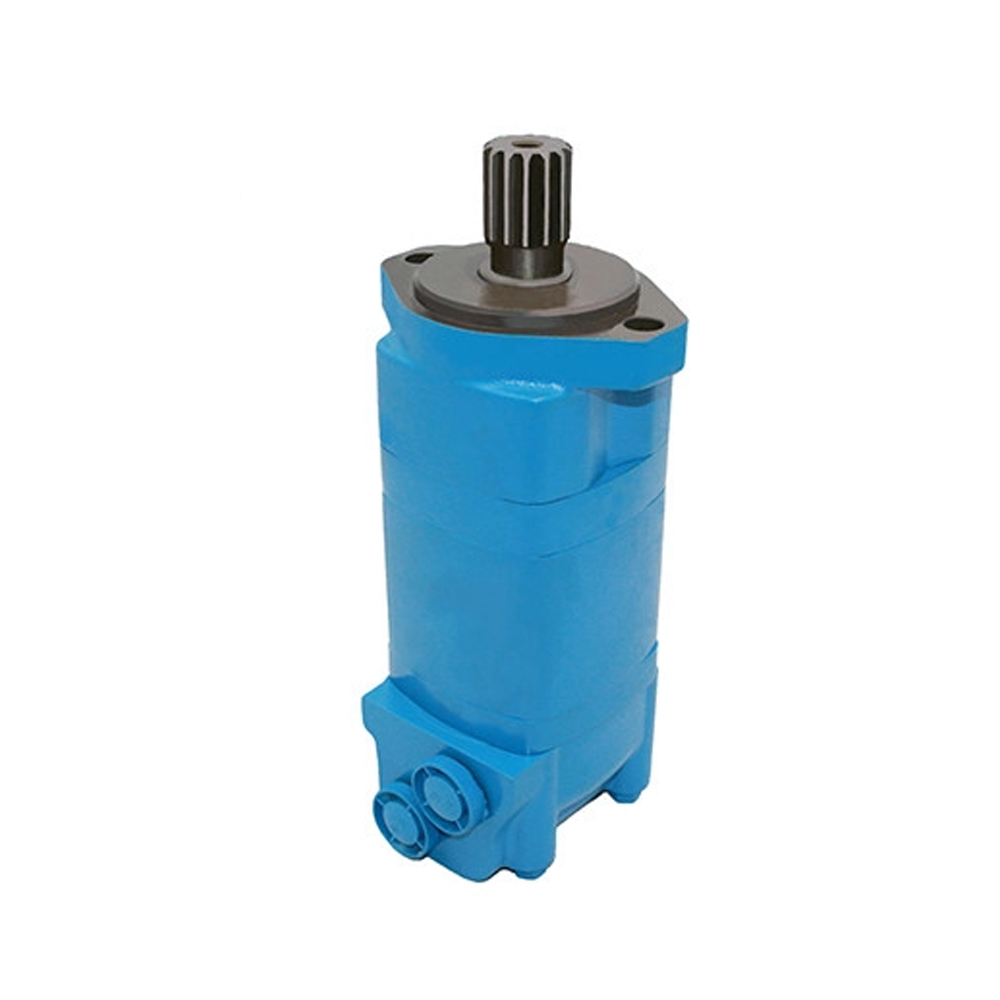

EATON / CHAR-LYNN 104-3154-006 Hydraulic Geroler Disc Valve Motor
Quick view:
This is a Eaton Char-lynn 104-3154-006 replacement motor with the same build and performance, fast delivery
We hope to help distributors make their business more competitive
We hope to help dealers make their business more stable
We hope to help OEMs make their equipment work excellent
Specification:
104-3154-006
M0215AC04AA010000000A0F
Disc Motor
Geroler
Disc Valve
| SERIES | 2000 Series |
| PORT LOCATION | Side Port, Staggered |
| SHAFT TYPE | Splined |
| DRAIN | 0.4375-20 UNF-2B SAE O-Ring Port |
| MAXIMUM SPEED @ CONTINUOUS FLOW | 308 rpm @ 20 gal/min |
| FLOW RATE | 20 gal/min |
| RPM [MAX] | 308 rpm |
| DUTY | Standard-Duty |
| GEROTER/GEROLER OPTIONS | Standard |
| MOUNTING HOLES | 0.535 in |
| SPLINES | 14 |
| PORT SIZE | SAE-10, 7/8-14 UNF |
| MOTOR TYPE | Disc Valve |
| MOUNT TYPE | 2 Bolt |
