| Quantity: | |
|---|---|
104-1198-006
Xeriwell or Others
| Item: | Low Speed High Torque Motor | Model: | 104-1198-006 |
|---|---|---|---|
| Fastening: | 2 Bolts | Displacement: | 245 CM3/R |
| Shaft: | 1" Spline Shaft | Port: | Staggered Ports |
| Highlight: | Geroler Disc Valve Hydraulic Motor,104-1198-006 Hydraulic Motor,245CC High Torque Motor | ||

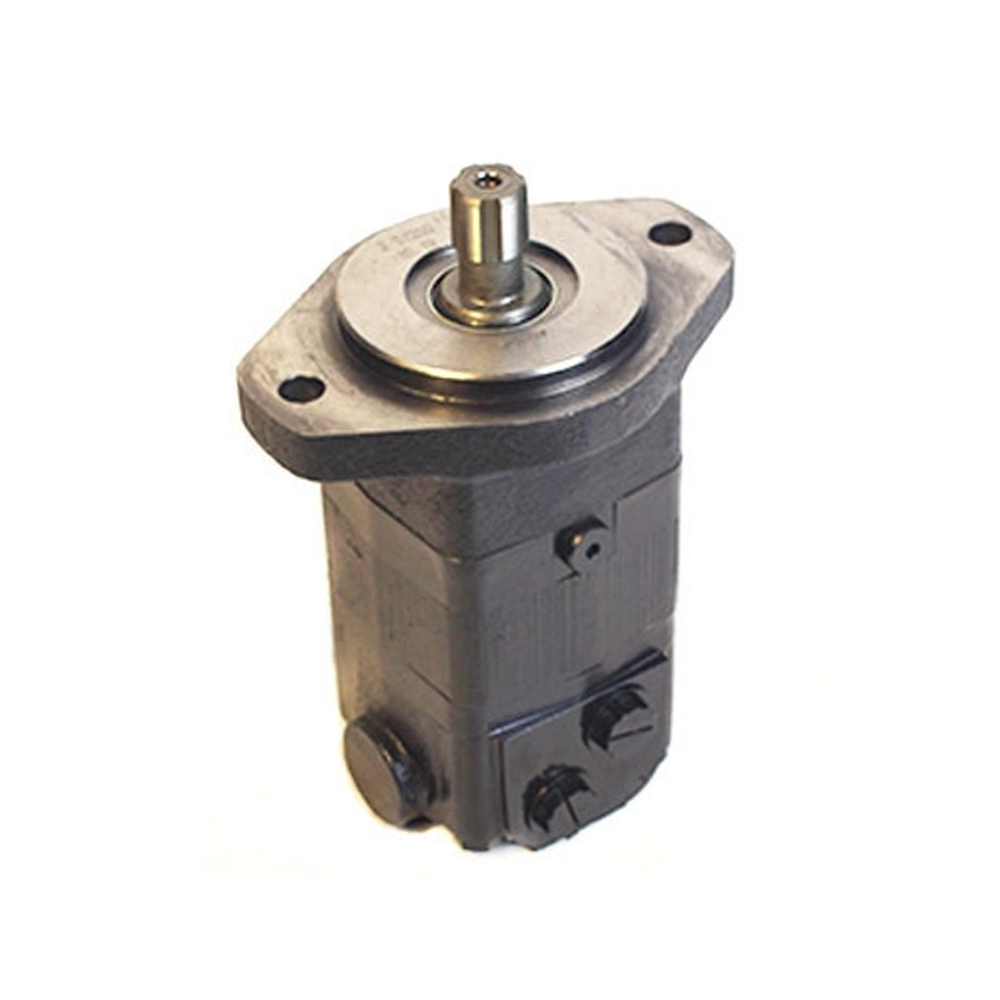

Geroler Disc Valve Hydraulic Motor Eaton / Char Lynn 104-1198-006 low speed high torque motor
Specification:
104-1198-006
M02149AF05AA0100010000000AAAAF
Disc Motor
Geroler
Disc Valve
| DISPLACEMENT | 245CC |
| SERIES | 2000 Series |
| PORT LOCATION | Side Port, Staggered |
| SHAFT TYPE | 1 Inch SAE 6B Splined |
| DRAIN | 0.4375-20 UNF-2B SAE O-Ring Port |
| MAXIMUM SPEED @ CONTINUOUS FLOW | 308 rpm @ 20 gal/min |
| FLOW RATE | 20 gal/min |
| RPM [MAX] | 308 rpm |
| DUTY | Standard-Duty |
| GEROTER/GEROLER OPTIONS | Standard |
| MOUNTING TYPE | STANDARD, 2 BOLT; 101.6 [4.00] PILOT DIA. 14.35 [.565] DIA. HOLES ON 146.0 [5.75] DIA. BOLT CIRCLE. SAE B |
| SPLINES | 6 SPLINE |
| PORT SIZE | SAE-10, 7/8-14 UNF |
| MOTOR TYPE | Disc Valve |
| MOUNT TYPE | 2 Bolt |
TYPES WE SUPPLY
1 1/4 Inch
Straight
104 -1200-006
104 -1201-006
104 -1202-006
104-1203 -006
104 -1204-006
104 -1205-006
104 -1206-006
104 -1207-006
1 1/4 Inch
Involute
SAE C
Splined
104-1208-006
104 -1209-006
104 -1210 -006
104-1211-006
104 -1212-006
104 -1213-006
104 -1214-006
104 -1215-006
1 Inch
SAE 6B
Splined
104 -1193 -006
104-1194 -006
104-1195 -006
104-1196-006
104 -1197-006
104 -1198-006
104 -1199-006
More series EATON / CHAR-LYNN hydraulic motor available
| J (129-) | 2000 (104-, 105-, 106-, 193-) |
| H (101-) | 4000 (109-, 110-, 111-) |
| S (103-) | 6000 (112-, 113-, 114-) |
| T (158-) | 10000 ( 119-) |
| W (162-) |
Applications
• Swing motor
• Brush Cutters & mowers
• Harvesting equipment
• Directional boring
• Turf equipment
• Skid Steer loaders
• Fairway mowers
• Harvesters
• Mowing
• Snow removal
• Sprayers
• Trencher
• Wood products
• Grinders and mixers
• Forestry equipment
• Irrigation reels
