BZZ1-E280BC-D
Xeriwell or Others
| Product: | Hydraulic Steering Unit | Model No.: | BZZ1-E280BC-D |
|---|---|---|---|
| Displacement: | 280ml/r | Brand: | Xeriwell |
| Highlight: | 5 Ton Forklift hydraulic steering unit,BZZ1-E280BC-D hydraulic steering unit,BZZ1-E280BC-D hydraulic steering control unit | ||

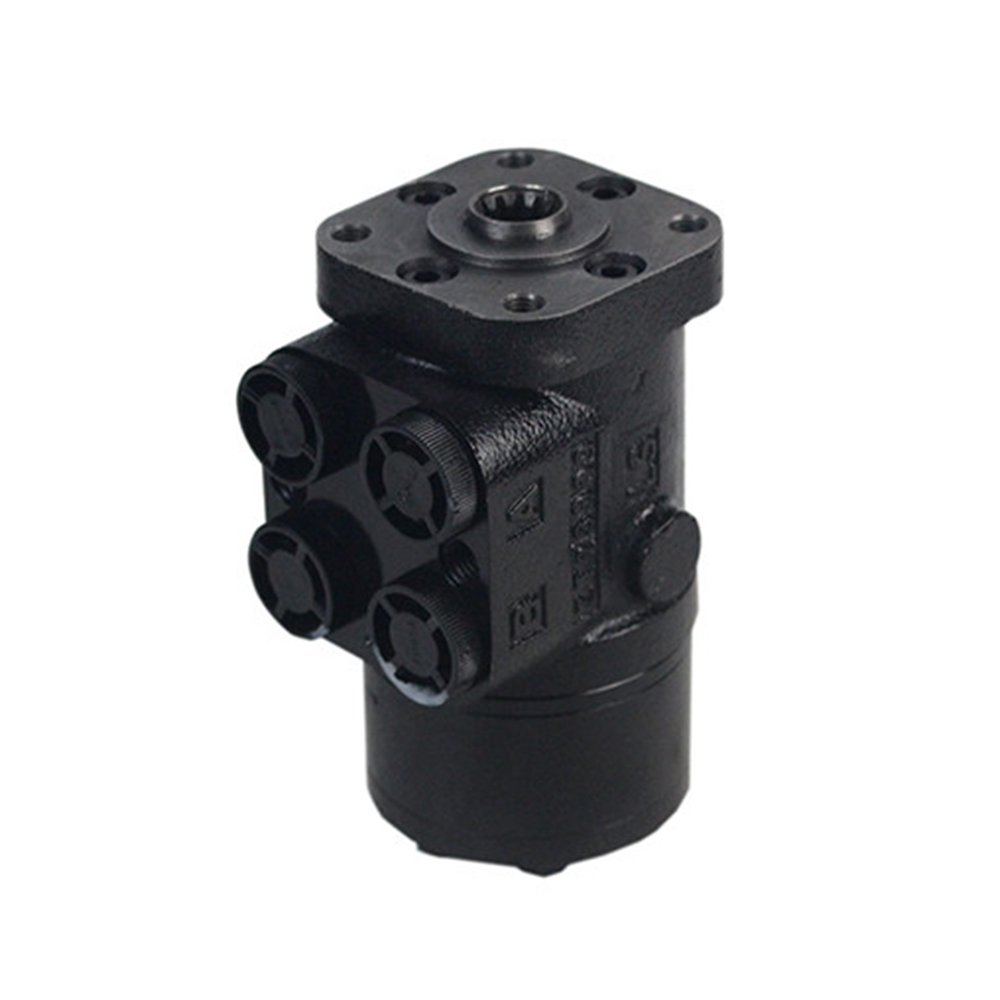

Hydraulic Steering Unit (BZZ1, BZZ2, BZZ3)
Hydraulic steering control units (BZZ)
BZZ1, BZZ2, BZZ3 Hydraulic steering control units(SCU), new design, better performance. Widely applied to low speed and heavy load vehicles E.g. construction machinary, forklift, tractor, harvester and helm control etc.
The advantages of the hydraulic steering control units:
1.Low cost, reliable.
2.No load reaction on the steering wheel comfortable.
3.Manual operation available when the pump doesnt work.
4.Low control torque, continuous operation.
5.According to the system, different function and pressure level valves available.

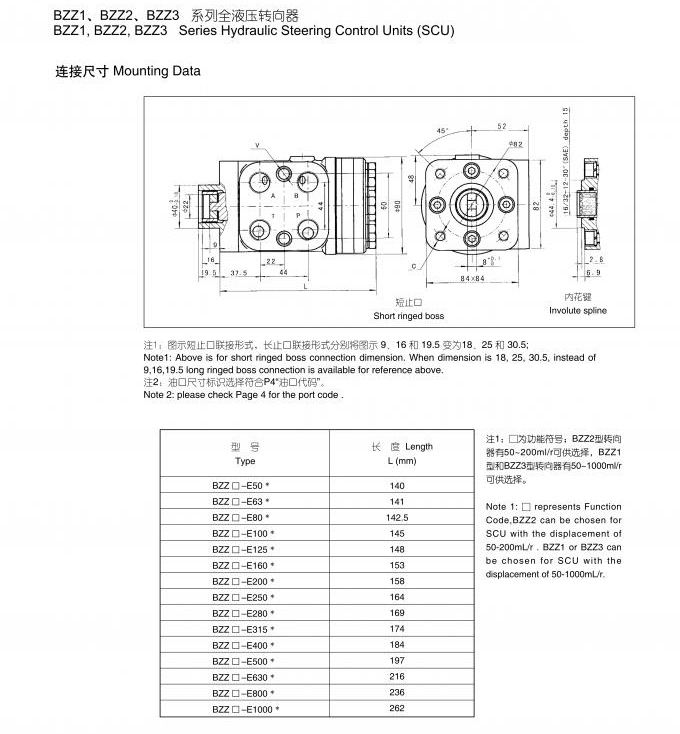

| 型 号 Type | 长 度 Length L (mm) |
| BZZ□-E50* | 140 |
| BZZ□-E63* | 141 |
| BZZ□-E80* | 142.5 |
| BZZ□-E100* | 145 |
| BZZ□-E125* | 148 |
| BZZ□-E160* | 153 |
| BZZ□-E200* | 158 |
| BZZ□-E250* | 164 |
| BZZ□-E280* | 169 |
| BZZ□-E315* | 174 |
| BZZ□-E400* | 184 |
| BZZ□-E500* | 197 |
| BZZ□-E630* | 216 |
| BZZ□-E800* | 236 |
| BZZ□-E1000* | 262 |
