BMR-bk01
Xeriwell or Others
| Type: | Hydraulic Oil Motor | Brand: | Xeriwell |
|---|---|---|---|
| Model No.: | BMR-bk01 | Displacement: | 160CC |
| Speed: | 341 RPM - 372 RPM | Flow: | 55 Lpm -60 Lpm |
| Pressure: | 14mpa-17.5mpa | Output: | 11.3-15.2kw |
| Highlight: | slow speed high torque motor,lsht hydraulic motor | ||

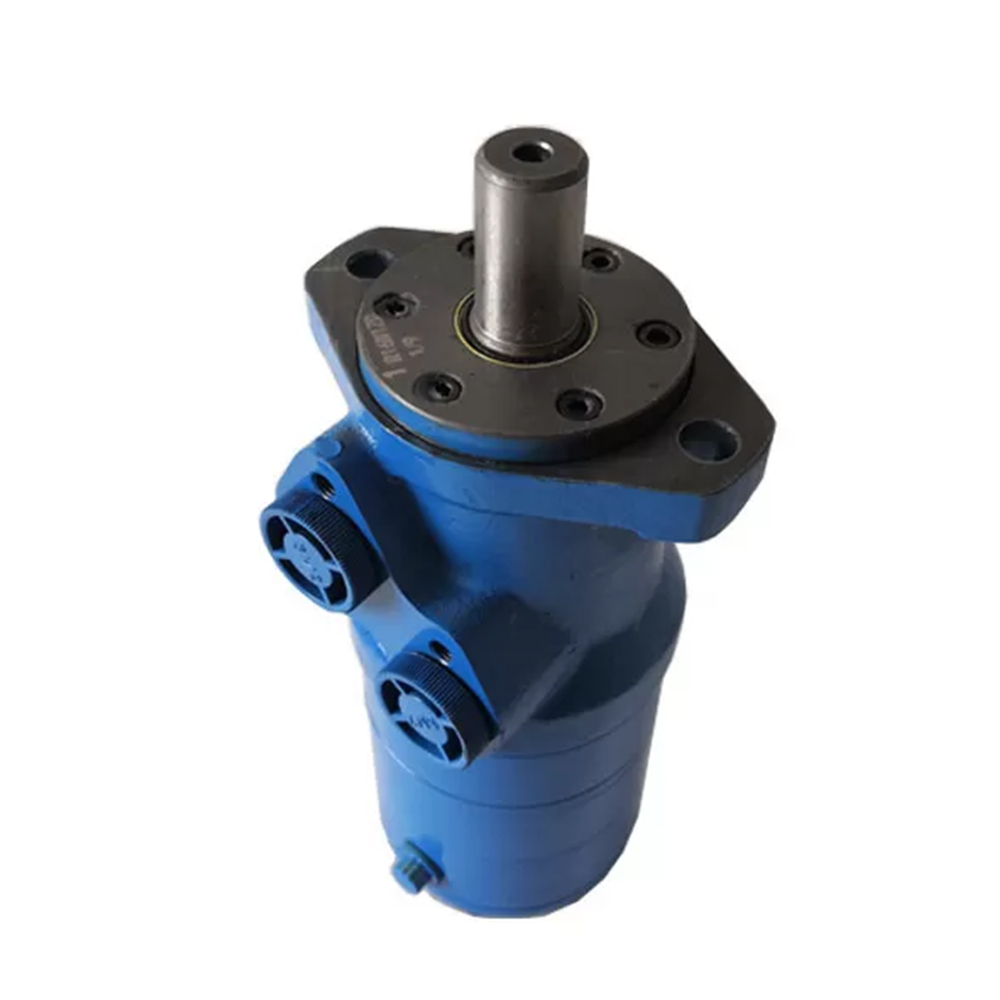

Fluid power systems Orbit Hydraulic Motor-brake B/MR integral brake motor compact hydraulic components
Specifications:
B/MR = M+S B/MR
displacement = 160cc
2= 2-Ø13.5Rhomb-flange, pilot Ø82.5×8
A = Shaft Ø25mm
D = G1/2 Manifold Mount, 4-M8, G1/4
Xeriwell is strong at motor produce, type , Eaton, Char-lynn, Parker, White, Brevini, TRW, M+S can be provided,good quality,affordable price, fast delivery time and best after sales service.
Suitable in many hydraulic motor markets, the hydraulic motor with integral brake is ideal for applications where space in the overall machine design is an issue.
This solution eliminates the need for a separate braking unit and provides up to 1580 Nm [14,000 lb-in] of reliable holding torque in a single compact package.
Features and benefits
The compact housing design provides a high power to weight ratio
The heavy duty drive link is the most durable in its class, receiving full flow lubrication for reduced wear and overall increased motor life
The three zone orbital valve precisely meters oil to produce exceptional volumetric efficiencies
A rubber energized, steel faced seal in the orbital valving provides greater protection against seal extrusion and overheating
A standard drain increases the overall shaft seal life by reducing the pressure on the shaft seal
Specifications:
Applications:
1.conveyors |
| 2.Feeding mechanism of robots and manipulators |
| 3.Metal working machines |
| 4.Textile machines |
| 5.Agriculture machines |
| 6.Food industries |
| 7.Mining machinery |
| Type: | Hydraulic Oil Motor | Brand: | Xeriwell |
|---|---|---|---|
| Model No.: | BMR-bk01 | Displacement: | 160CC |
| Speed: | 341 RPM - 372 RPM | Flow: | 55 Lpm -60 Lpm |
| Pressure: | 14mpa-17.5mpa | Output: | 11.3-15.2kw |
| Highlight: | slow speed high torque motor,lsht hydraulic motor | ||
Fluid power systems Orbit Hydraulic Motor-brake B/MR integral brake motor compact hydraulic components
Specifications:
B/MR = M+S B/MR
displacement = 160cc
2= 2-Ø13.5Rhomb-flange, pilot Ø82.5×8
A = Shaft Ø25mm
D = G1/2 Manifold Mount, 4-M8, G1/4
Xeriwell is strong at motor produce, type , Eaton, Char-lynn, Parker, White, Brevini, TRW, M+S can be provided,good quality,affordable price, fast delivery time and best after sales service.
Suitable in many hydraulic motor markets, the hydraulic motor with integral brake is ideal for applications where space in the overall machine design is an issue.
This solution eliminates the need for a separate braking unit and provides up to 1580 Nm [14,000 lb-in] of reliable holding torque in a single compact package.
Features and benefits
The compact housing design provides a high power to weight ratio
The heavy duty drive link is the most durable in its class, receiving full flow lubrication for reduced wear and overall increased motor life
The three zone orbital valve precisely meters oil to produce exceptional volumetric efficiencies
A rubber energized, steel faced seal in the orbital valving provides greater protection against seal extrusion and overheating
A standard drain increases the overall shaft seal life by reducing the pressure on the shaft seal
Specifications:
Applications:
1.conveyors |
| 2.Feeding mechanism of robots and manipulators |
| 3.Metal working machines |
| 4.Textile machines |
| 5.Agriculture machines |
| 6.Food industries |
| 7.Mining machinery |
