| Quantity: | |
|---|---|
BMP BMR BMH BMS BMT BMV
Xeriwell or Others

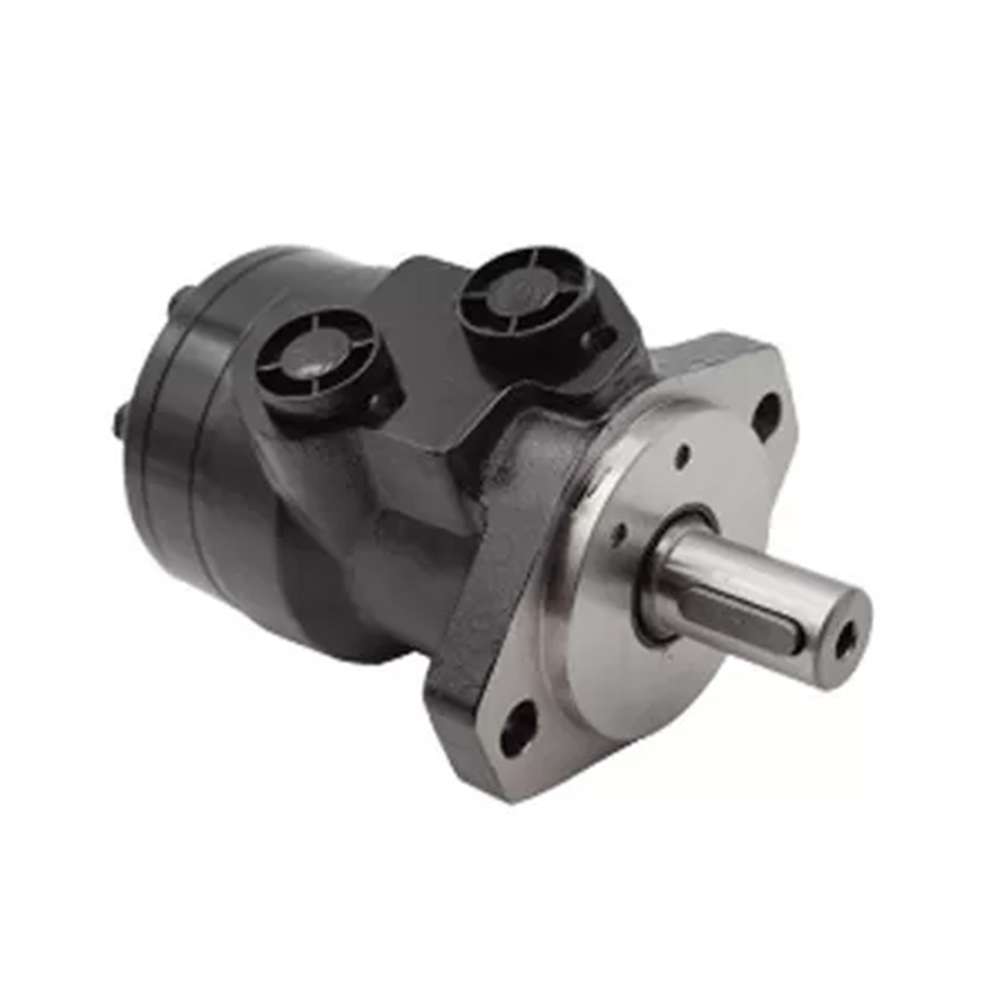

| Item: | High Torque Low Speed Motor | Model: | Eaton Parker Danfoss White Replace |
|---|---|---|---|
| Size: | 8cc To 1000cc | Brand: | Xeriwell |
| Highlight: | slow speed high torque motor,lsht hydraulic motor | ||
Hydraulic Motors
Xeriwell has a complete selection of hydraulic motors to fill your requirements. Low speed high torque motors from Xeriwell Technology, 2 bolt, 4 bolt and wheel drive versions are standard. Keyed or spline shafts are standard as are SAE or NPT ports and displacements from .78cc to 524cc. directly interchangeable with the leading industry brands.
Xeriwell Manufacturing offers original quality or OEM replacement motor for Eaton, Parker, Danfoss, White, Ross, TRW, Brivini
Xeriwell motors with the following Features and benefits include:
Robust construction for longer life
Continuous oil flow across internal splines for longer life
Superior side load capacity
Smooth, extra low speed operation
High pressure shaft seal as standard
Innovative design eliminates the need for a drain
Roller vanes and sealed commutator maintain high efficiency
and provide smooth low speed performance.
Low speed high torque motor :
Low speed high torque hydraulic motor are rotary actuators that convert hydraulic, or fluid energy into mechanical power. They work in tandem with a hydraulic pump, which converts mechanical power into fluid, or hydraulic power. Hydraulic motors provide the force and supply the motion to move an external load.
Take BMER are example:
| type | BMER 125 | BMER 160 | BMER 200 | BMER 230 | BMER 250 | BMER 300 | BMER 350 | BMER 375 | BMER 400 | BMER 475 | BMER 540 | BMER 650 | BMER 750 | |
| Max. speed (rpm) | cont. | 360 | 375 | 330 | 290 | 290 | 250 | 220 | 200 | 185 | 160 | 140 | 115 | 100 |
| int. | 490 | 470 | 425 | 365 | 350 | 315 | 270 | 240 | 220 | 195 | 170 | 138 | 120 | |
| Max. torque (N•m) | cont. | 325 | 450 | 530 | 625 | 700 | 810 | 905 | 990 | 1010 | 1085 | 980 | 1015 | 1050 |
| int. | 380 | 525 | 600 | 710 | 790 | 930 | 1035 | 1140 | 1180 | 1180 | 1240 | 1250 | 1180 | |
| peak | 450 | 590 | 750 | 870 | 980 | 1120 | 1285 | 1360 | 1360 | 1260 | 1380 | 1380 | 1370 | |
| Max. output (kW) | cont. | 12 | 15 | 15.5 | 16 | 17.5 | 18 | 17.5 | 16.5 | 15.5 | 14.5 | 11.5 | 10 | 8 |
| int. | 14 | 17.5 | 18 | 19 | 20 | 21 | 20 | 19 | 18 | 16.5 | 15 | 12 | 10 | |
| Max. pressur drop e (MPa) | cont. | 20.5 | 20.5 | 20.5 | 20.5 | 20.5 | 20.5 | 20. 5 | 20.5 | 19 | 17.5 | 14 | 12 | 10.5 |
| int. | 24 | 24 | 24 | 24 | 24 | 24 | 24 | 24 | 22.5 | 19 | 17.5 | 15.5 | 12 | |
| peak | 27.6 | 27.6 | 27.6 | 27.6 | 27.6 | 27.6 | 27.6 | 27.6 | 25 | 20.5 | 20.5 | 17.5 | 14 | |
| Max. flow (L/min) | cont. | 45 | 60 | 70 | 70 | 75 | 80 | 80 | 75 | 75 | 75 | 75 | 75 | 75 |
| int. | 60 | 75 | 85 | 85 | 90 | 95 | 95 | 90 | 90 | 90 | 90 | 90 | 90 | |
| Item: | High Torque Low Speed Motor | Model: | Eaton Parker Danfoss White Replace |
|---|---|---|---|
| Size: | 8cc To 1000cc | Brand: | Xeriwell |
| Highlight: | slow speed high torque motor,lsht hydraulic motor | ||
Hydraulic Motors
Xeriwell has a complete selection of hydraulic motors to fill your requirements. Low speed high torque motors from Xeriwell Technology, 2 bolt, 4 bolt and wheel drive versions are standard. Keyed or spline shafts are standard as are SAE or NPT ports and displacements from .78cc to 524cc. directly interchangeable with the leading industry brands.
Xeriwell Manufacturing offers original quality or OEM replacement motor for Eaton, Parker, Danfoss, White, Ross, TRW, Brivini
Xeriwell motors with the following Features and benefits include:
Robust construction for longer life
Continuous oil flow across internal splines for longer life
Superior side load capacity
Smooth, extra low speed operation
High pressure shaft seal as standard
Innovative design eliminates the need for a drain
Roller vanes and sealed commutator maintain high efficiency
and provide smooth low speed performance.
Low speed high torque motor :
Low speed high torque hydraulic motor are rotary actuators that convert hydraulic, or fluid energy into mechanical power. They work in tandem with a hydraulic pump, which converts mechanical power into fluid, or hydraulic power. Hydraulic motors provide the force and supply the motion to move an external load.
Take BMER are example:
| type | BMER 125 | BMER 160 | BMER 200 | BMER 230 | BMER 250 | BMER 300 | BMER 350 | BMER 375 | BMER 400 | BMER 475 | BMER 540 | BMER 650 | BMER 750 | |
| Max. speed (rpm) | cont. | 360 | 375 | 330 | 290 | 290 | 250 | 220 | 200 | 185 | 160 | 140 | 115 | 100 |
| int. | 490 | 470 | 425 | 365 | 350 | 315 | 270 | 240 | 220 | 195 | 170 | 138 | 120 | |
| Max. torque (N•m) | cont. | 325 | 450 | 530 | 625 | 700 | 810 | 905 | 990 | 1010 | 1085 | 980 | 1015 | 1050 |
| int. | 380 | 525 | 600 | 710 | 790 | 930 | 1035 | 1140 | 1180 | 1180 | 1240 | 1250 | 1180 | |
| peak | 450 | 590 | 750 | 870 | 980 | 1120 | 1285 | 1360 | 1360 | 1260 | 1380 | 1380 | 1370 | |
| Max. output (kW) | cont. | 12 | 15 | 15.5 | 16 | 17.5 | 18 | 17.5 | 16.5 | 15.5 | 14.5 | 11.5 | 10 | 8 |
| int. | 14 | 17.5 | 18 | 19 | 20 | 21 | 20 | 19 | 18 | 16.5 | 15 | 12 | 10 | |
| Max. pressur drop e (MPa) | cont. | 20.5 | 20.5 | 20.5 | 20.5 | 20.5 | 20.5 | 20. 5 | 20.5 | 19 | 17.5 | 14 | 12 | 10.5 |
| int. | 24 | 24 | 24 | 24 | 24 | 24 | 24 | 24 | 22.5 | 19 | 17.5 | 15.5 | 12 | |
| peak | 27.6 | 27.6 | 27.6 | 27.6 | 27.6 | 27.6 | 27.6 | 27.6 | 25 | 20.5 | 20.5 | 17.5 | 14 | |
| Max. flow (L/min) | cont. | 45 | 60 | 70 | 70 | 75 | 80 | 80 | 75 | 75 | 75 | 75 | 75 | 75 |
| int. | 60 | 75 | 85 | 85 | 90 | 95 | 95 | 90 | 90 | 90 | 90 | 90 | 90 | |
