| Quantity: | |
|---|---|
060 , 101S Series
Xeriwell or Others
| Features: | OEM Parts Reference | Product Name: | Power Steering Control Unit |
|---|---|---|---|
| Brand: | Xeriwell | Displacement: | 50cc - 800cc |
| Application: | Tractors , Combine Direction | Model Number: | 060 , 101S Series Steering Unit |
| Highlight: | power steering control unit,hydraulic steering gear | ||

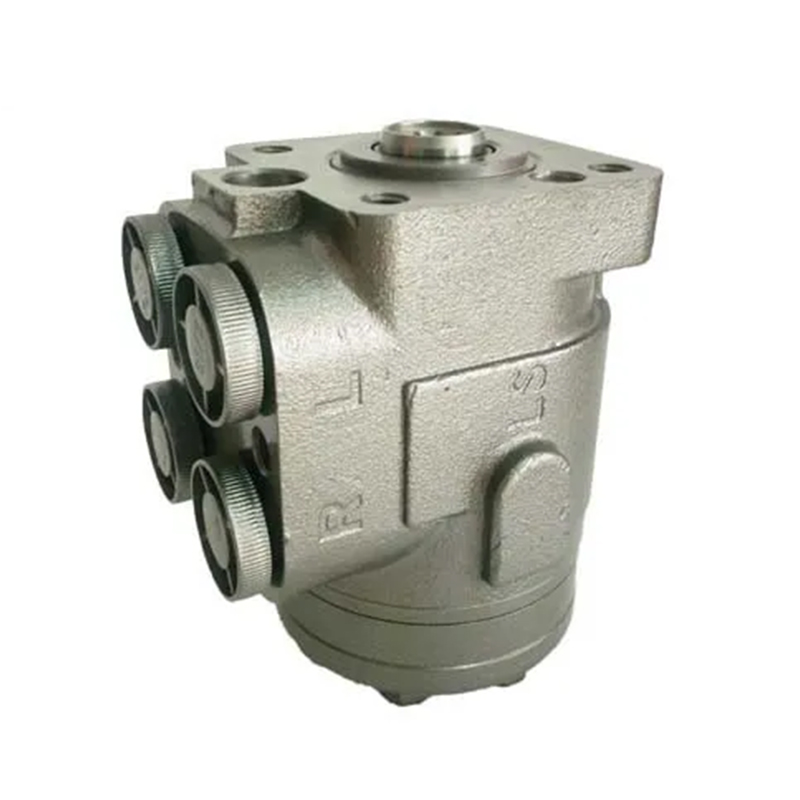

Hydraulic Power Steering For Kubota , Belarus MTZ Tractor Hydrostatic Steering
► Characteristic Features
1. Kubta, MTZ, , CAT, Massey Ferguson, FIAT, CLAAS, , Landini Tractor, Combine Harvester Hydrostatic Steering Unit
2. Hydraulic Power Steering 060 and 101s with relief valve,suction valve, inlet check valve intergrated.
3. Different valve can be assembled freely,compact ,more convenient ,fitting.
4. European and American standards.
► Specification
| Parameters | Series 101S-*-***-**-* | ||||||||||
| Function code | 1,2,4 | 1,4 | |||||||||
| Displacement (mL/r) | 50 | 63 | 80 | 100 | 125 | 160 | 200 | 250 | 280 | 315 | 400 |
| Rated Flow (L/min) | 5 | 6 | 8 | 10 | 12.5 | 16 | 20 | 25 | 28 | 32 | 40 |
| Max.input pressure(Mpa) | 16 | ||||||||||
| Relief Valve Pressure Settings ( MPa) | 06,07,08,10,12,14,15,16 | ||||||||||
| Shock Valve Pressure Settings ( MPa) | 12,13,14,16,18,20,21,22 | ||||||||||
| Max.cont.back pressure | 2.5 | ||||||||||
| Weight(kg) | 5.75 | 5.81 | 5.89 | 5.96 | 6.1 | 6.3 | 6.5 | 6.73 | 6.91 | 7.1 | 7.5 |

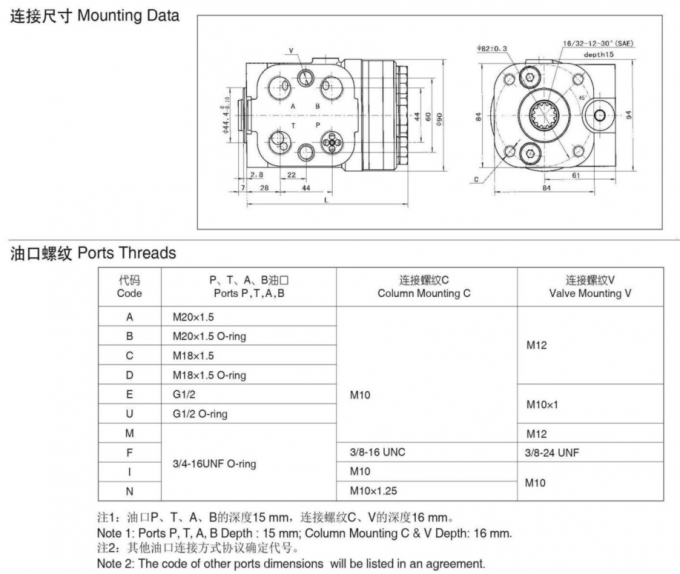

| Dimension L (mm) | 130 | 132 | 134 | 137 | 140 | 145 | 150 | 156 | 161 | 166 | 176 |
► Application
Agricultural Tractor, Agricultural Harvester and Industrial Tractor Hydraulic Power Direction
1. Kubota
2. Massey Ferguson
3. David Brown
4. Landini
5. Fiat
6. Belarus MTZ
